LED TAIL LIGHT/brake light...
Thread Starter
|
Novice
Joined: Oct 2011
Posts: 16
Likes: 2
From: Winston Salem, NC
LED TAIL LIGHT/brake light...
My1995 BADBOY FXSTSB's tail light was switched to LED. It was like this when I bought it from an individual 20 years ago. Now neither front brake lever or rear brake foot pedal will actuate the brake light. Anyone willing to help a 69 year old man figure this out so I can ride my bike...please?
Thank you for your help and time in advance!
Keith
(slowboy)
Thank you for your help and time in advance!
Keith
(slowboy)
Sounds like there's no signal from the stoplight switches to the stoplight (Red/Yellow wire).
If your acc fuse is failing there will not be any power to the stoplight switches, turnsignal module, fuel gauge light and speedo light (Orange/White wire).
Have you alreday found out if there's a brake/stoplight module used on your bike?
See attached wiring diagram
If your acc fuse is failing there will not be any power to the stoplight switches, turnsignal module, fuel gauge light and speedo light (Orange/White wire).
Have you alreday found out if there's a brake/stoplight module used on your bike?
See attached wiring diagram
Thread Starter
|
Novice
Joined: Oct 2011
Posts: 16
Likes: 2
From: Winston Salem, NC
Sounds like there's no signal from the stoplight switches to the stoplight (Red/Yellow wire).
If your acc fuse is failing there will not be any power to the stoplight switches, turnsignal module, fuel gauge light and speedo light (Orange/White wire).
Have you alreday found out if there's a brake/stoplight module used on your bike?
See attached wiring diagram
If your acc fuse is failing there will not be any power to the stoplight switches, turnsignal module, fuel gauge light and speedo light (Orange/White wire).
Have you alreday found out if there's a brake/stoplight module used on your bike?
See attached wiring diagram
I don't know if there's a "brake/stoplight module on my bike. Don't even know where it would be on my bike.
Some images might help...
Thread Starter
|
Novice
Joined: Oct 2011
Posts: 16
Likes: 2
From: Winston Salem, NC

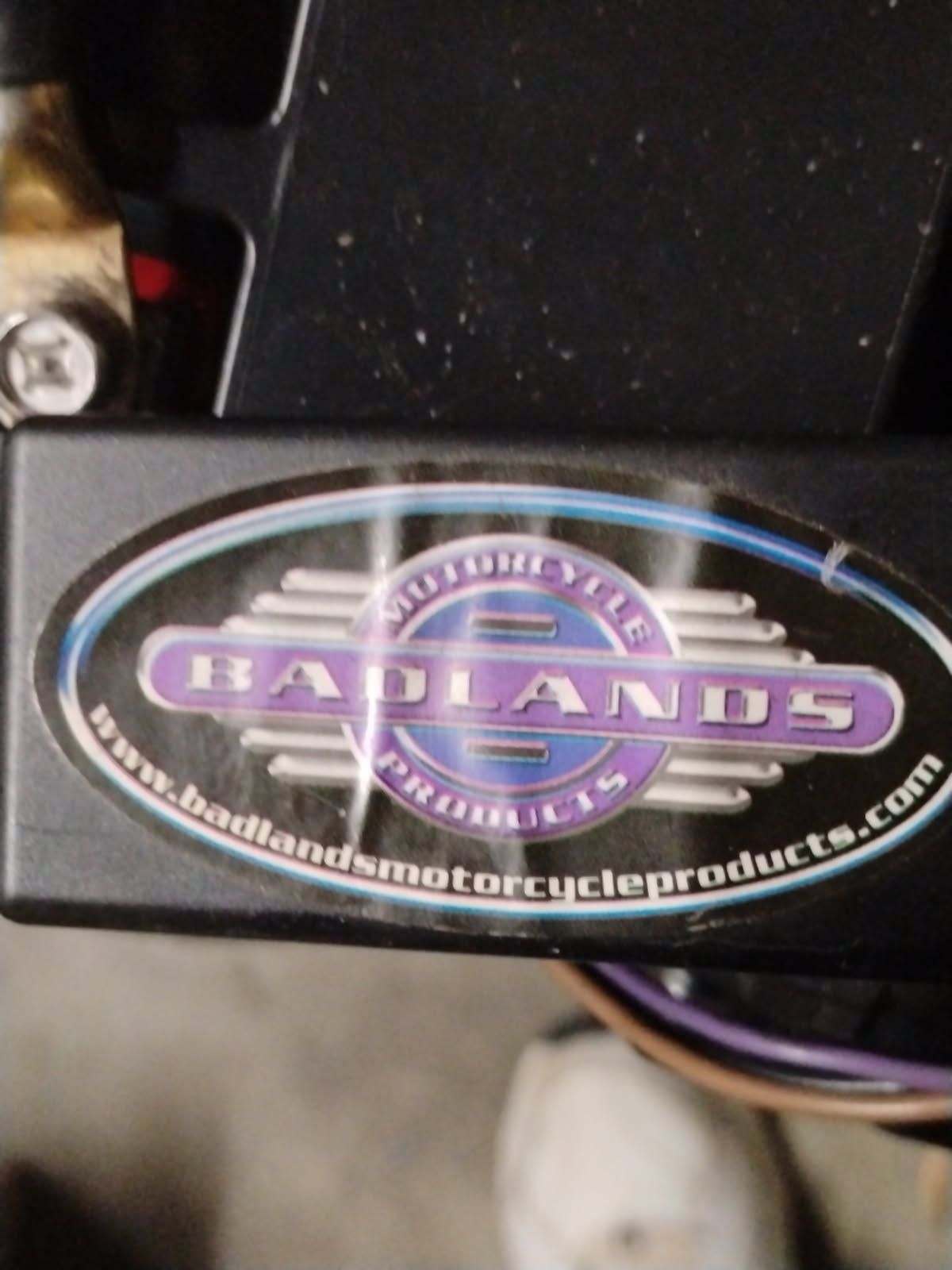

don't know if this may be it or not, just 4 wires

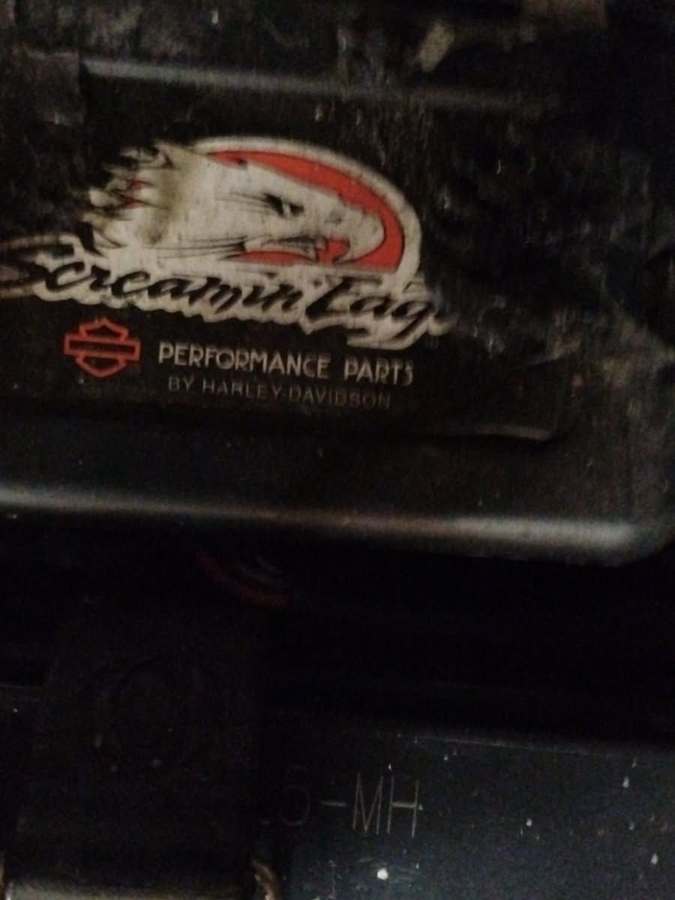

only 2 things I see under seat besides a starter relay
Seasoned HDF Member
Joined: Oct 2019
Posts: 10,790
Likes: 7,414
From: OH
Trending Topics
Here's a link to the instruction sheet for the LE-03 Badlands load equalizer module.
According to this info this module is for your directional lights which are working as you stated.
Could you remove the tail lamp cover and post an image of the tail/stoplight position and base plate?
How many and which wire colors are connected to the base plate?
Have you checked with a multimeter or a probe light if you have 12v power at the stoplight wire at the switches and the rear light circuit board?
According to this info this module is for your directional lights which are working as you stated.
Could you remove the tail lamp cover and post an image of the tail/stoplight position and base plate?
How many and which wire colors are connected to the base plate?
Have you checked with a multimeter or a probe light if you have 12v power at the stoplight wire at the switches and the rear light circuit board?
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Grand HDF Member
Joined: Aug 2014
Posts: 3,609
Likes: 1,601
From: Eastern Ohio
Open the taillight. If it's just an LED bulb, change it to a regular incandescent and test it. If it works properly, buy a new LED bulb, or don't.
If it's not a bulb type LED, check for manufacturer name. Then you'll have to get the multimeter out.
If it's not a bulb type LED, check for manufacturer name. Then you'll have to get the multimeter out.
Thread Starter
|
Novice
Joined: Oct 2011
Posts: 16
Likes: 2
From: Winston Salem, NC
Here's a link to the instruction sheet for the LE-03 Badlands load equalizer module.
According to this info this module is for your directional lights which are working as you stated.
Could you remove the tail lamp cover and post an image of the tail/stoplight position and base plate?
How many and which wire colors are connected to the base plate?
Have you checked with a multimeter or a probe light if you have 12v power at the stoplight wire at the switches and the rear light circuit board?
According to this info this module is for your directional lights which are working as you stated.
Could you remove the tail lamp cover and post an image of the tail/stoplight position and base plate?
How many and which wire colors are connected to the base plate?
Have you checked with a multimeter or a probe light if you have 12v power at the stoplight wire at the switches and the rear light circuit board?
There are 3 wires at the the LED light base plate. 1 BLACK, 1 RED and 1 Yellow.

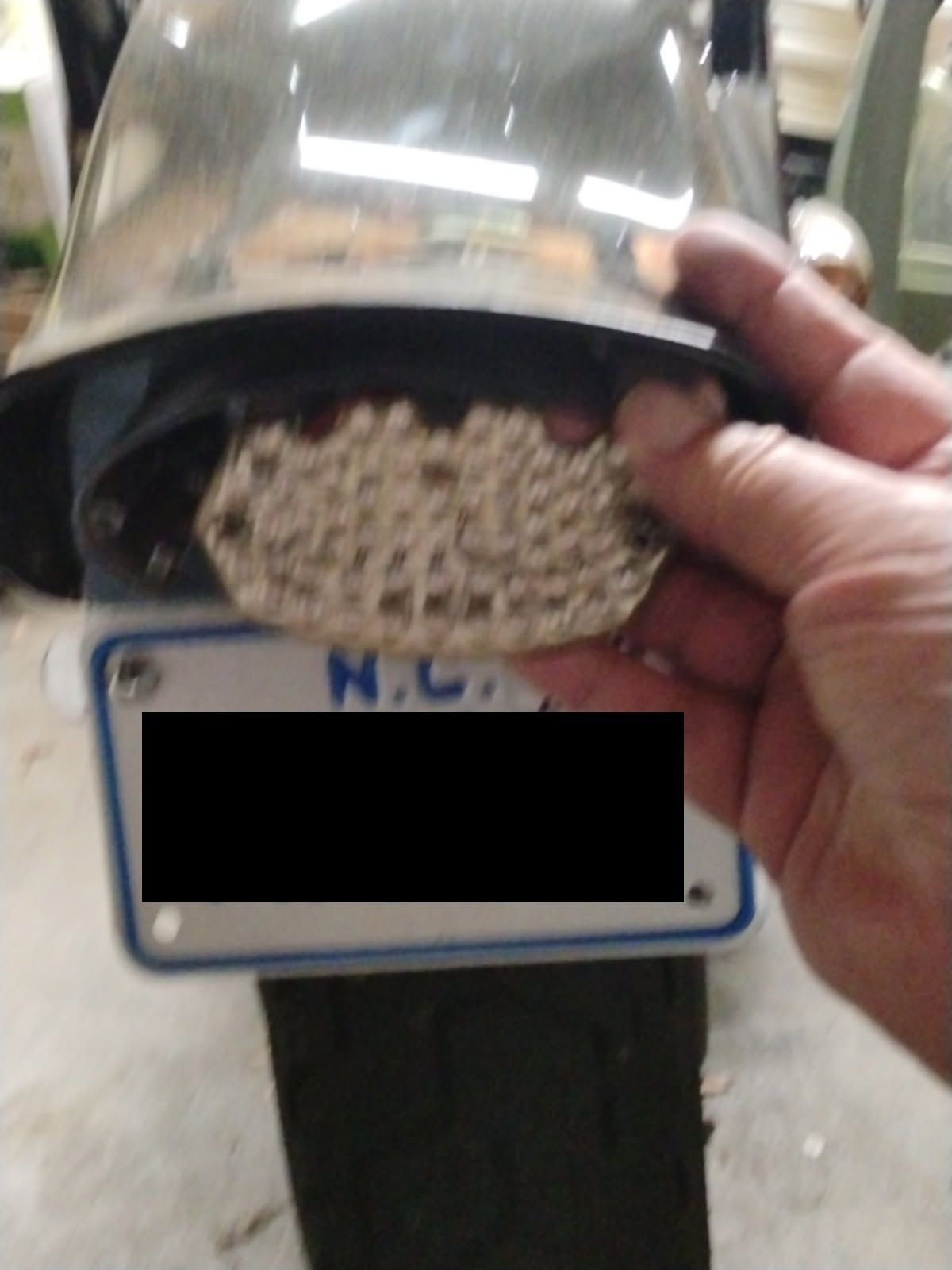

...sorry for the blurred picture showing the light, old man shakes...lucky I got that picture...but it's all little LED bulbs. Haven't gotten to testing switches yet.
