Squish measurement
Thread Starter
|
Banned
Joined: May 2018
Posts: 4,576
Likes: 978
From: Viet Vet, crossroads

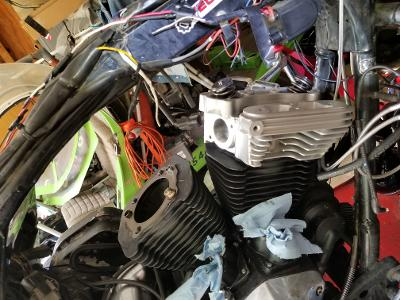

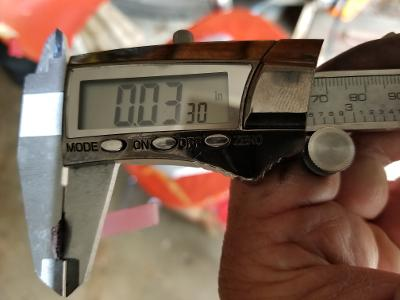

I have it dwn to about .030 again .
Now on to valves, I have them cut @50 deg rather then the usual 45deg

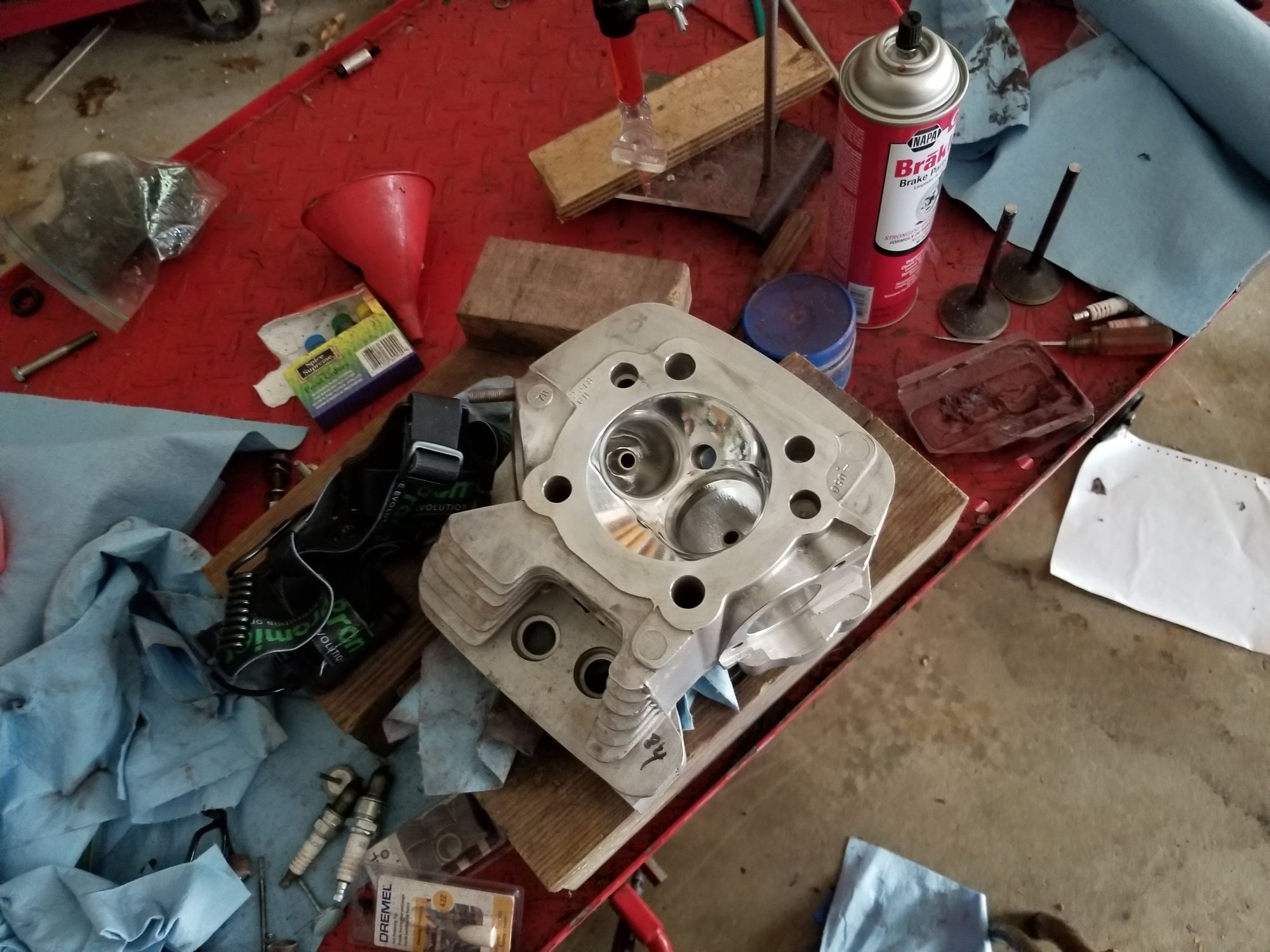

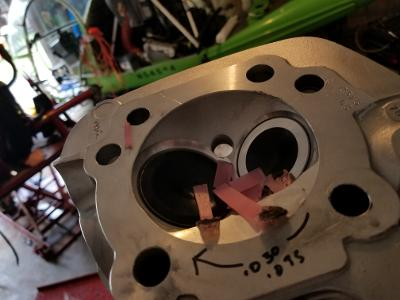

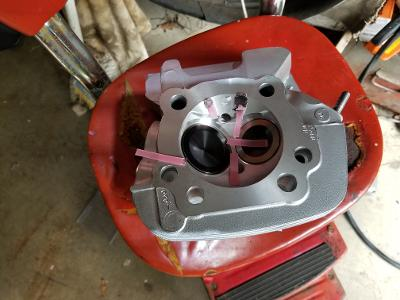

dental plastic cut into strips

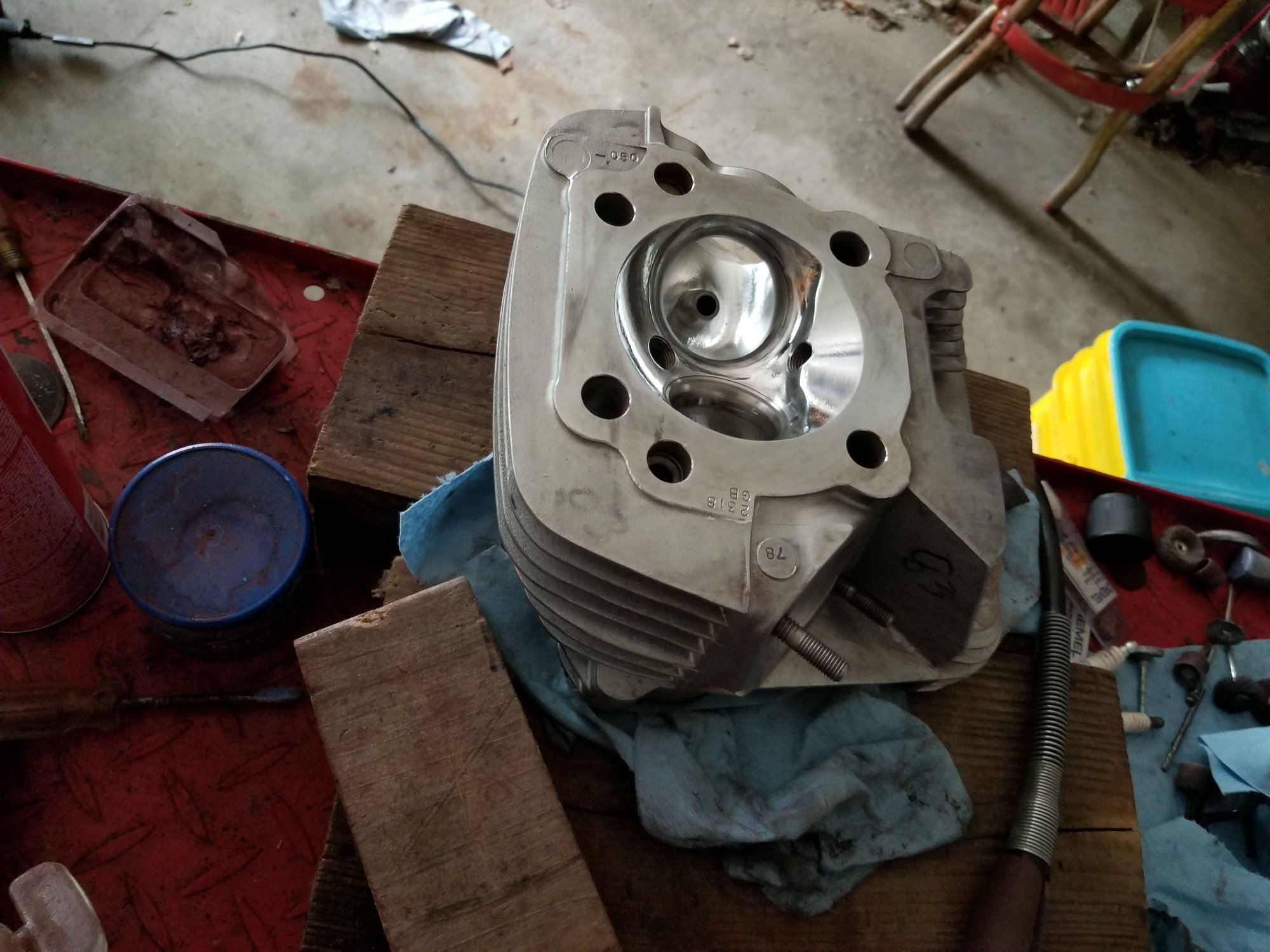

I ported the heads with boat bows around the guide bosses, and always have had great success.
I end up pulling this apart about every 20K, so I am not too concerned if they burn or not with the very narrow seats.
The seats are placed way to the top.
My last set went 20 K and were just starting to show some seat damage around the valve face.
The BIG reason it is apart- The cam drive gear came loose and the pistons kissed the valves.
After much homework I am convinced the EVO does not like a larger cam on the straight cut pinion.
The HIPO springs are trying to work it back and forth.
I measured the Total TIR and is less than three .
Next- to do the mock-up and check vale clearances again.
CC the chambers again.
