Badlands Load Equalizer LE-03-A install

Thread Tools

Search this Thread

Old May 24, 2015 | 07:15 PM
Share
  #11
Crashone's Avatar
Crashone
Thread Starter
|
Stellar HDF Member
Joined: Jul 2014
Posts: 2,721
Likes: 243
From: NC
Default

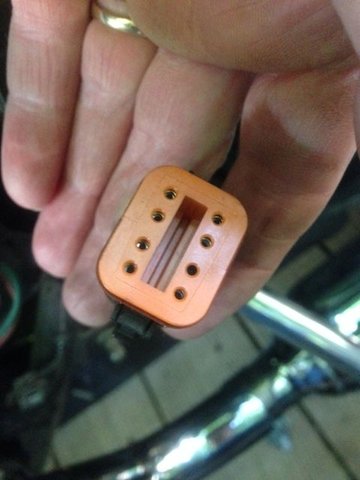

Funny you should ask for pictures as I took a few to look at to make sure I was getting the right connections. I was just reading Pothole914 post about crimping tools as well. anyway here are some pics if I can get them to work right, one is the male, one is the female that are on the bike and the one with both ends is what came on the Badlands.
