Inner Primary seal question

Reply Subscribe

Thread Tools

Search this Thread

Aug 17, 2017 | 02:47 PM

#11

husky390

Thread Starter

Advanced

Joined: Jul 2017

Posts: 93

Likes: 10

From: Colorado

Quote:

Originally Posted by Beemervet

Way too much.

Yeah, after speaking with a local Indy shop I figured that out. My fault for going by the previous owners notes instead of what was printed in the manual. I'm pulling the inner Primary tonight.

Aug 17, 2017 | 09:21 PM

#12

husky390

Thread Starter

Advanced

Joined: Jul 2017

Posts: 93

Likes: 10

From: Colorado

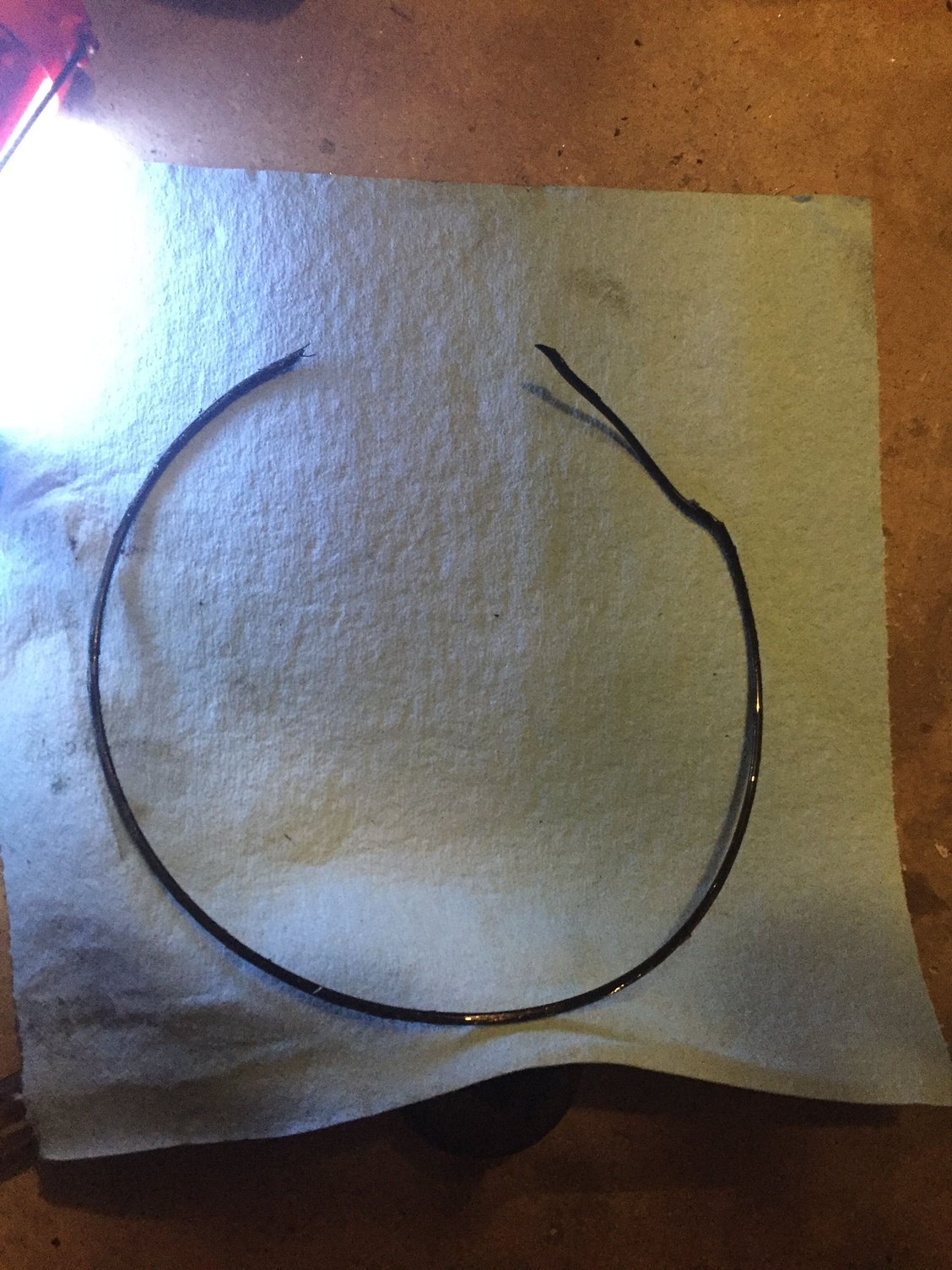

Not much left of that seal.

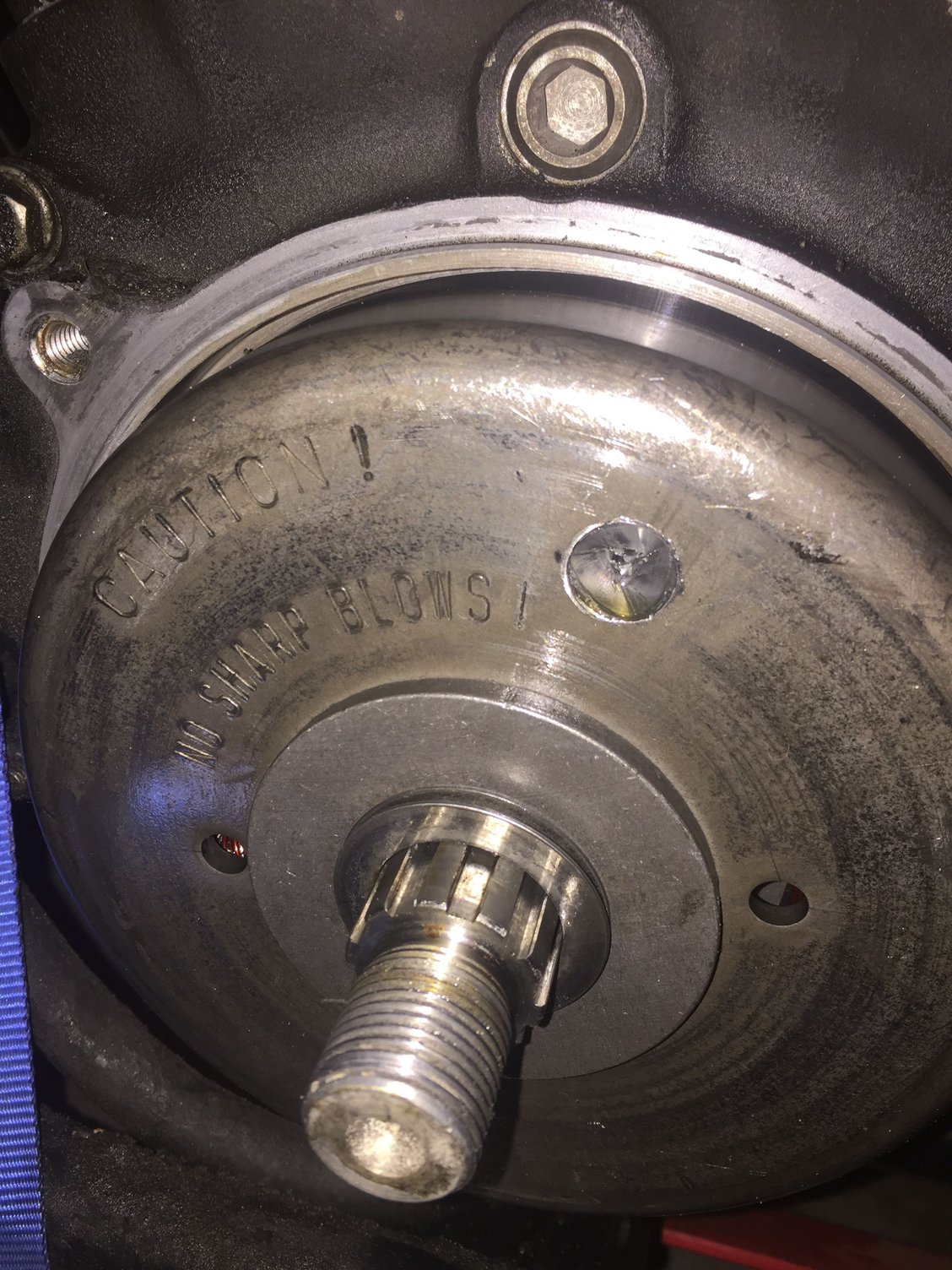

And quick question. Does this flywheel look normal? It looks like someone drilled some metal out.

Last edited by husky390; Aug 17, 2017 at 09:24 PM.

Aug 18, 2017 | 02:54 AM

#13

LQQK_OUT

Seasoned HDF Member

Joined: Nov 2006

Posts: 5,889

Likes: 1,903

From: East Coast, USA

Quote:

Originally Posted by husky390

And quick question. Does this flywheel look normal? It looks like someone drilled some metal out.

That's not a flywheel. It's the rotor assembly (part of your alternator). Looks normal.

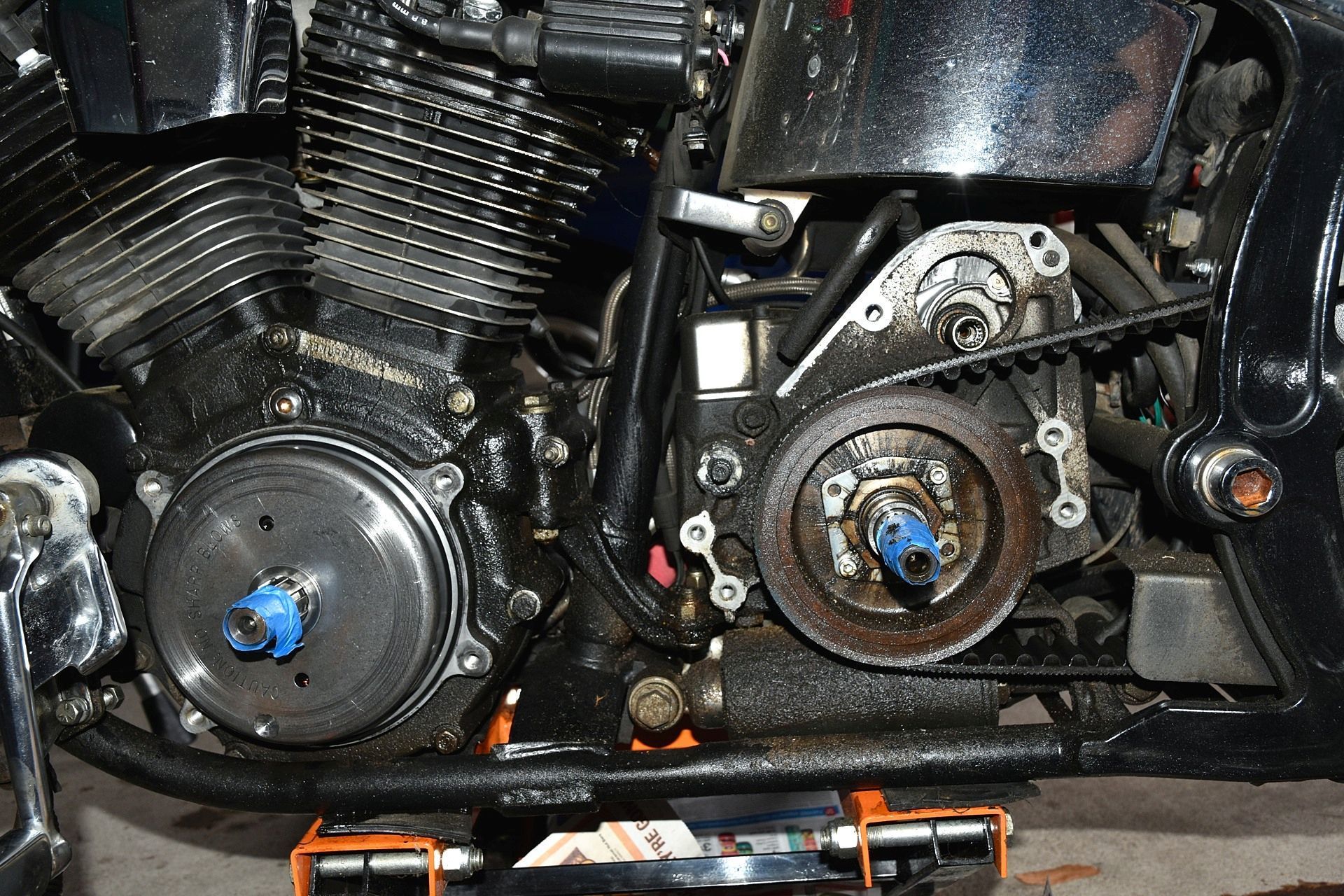

Take a look at mine. I'm the original owner and it's never been touched. My guess is that's done at the factory to balance it.

Last edited by LQQK_OUT; Aug 18, 2017 at 02:56 AM.

Aug 18, 2017 | 07:42 AM

#14

texashillcountry

Dirt don't hurt

Joined: Jan 2011

Posts: 21,065

Likes: 4,561

From: Haslet Texas

Quote:

Originally Posted by husky390

And quick question. Does this flywheel look normal? It looks like someone drilled some metal out.

That's your rotor and yes that's normal.

Quote:

Originally Posted by LQQK_OUT

That's not a flywheel. It's the rotor assembly (part of your alternator). Looks normal.
Take a look at mine. I'm the original owner and it's never been touched. My guess is that's done at the factory to balance it.

That's exactly why they did it.

Aug 18, 2017 | 08:01 AM

#15

98hotrodfatboy

Seasoned HDF Member

Joined: Mar 2010

Posts: 21,093

Likes: 7,622

From: Poolville

Were any of the inner primary bolts loose going to the case? I've seen broken lips on the case before but never just mutilated seal. Wonder if someone was in there prior to you?

Aug 18, 2017 | 08:29 AM

#16

husky390

Thread Starter

Advanced

Joined: Jul 2017

Posts: 93

Likes: 10

From: Colorado

Quote:

Originally Posted by 98hotrodfatboy

Were any of the inner primary bolts loose going to the case? I've seen broken lips on the case before but never just mutilated seal. Wonder if someone was in there prior to you?

It's very likely someone has been into it prior to me as the bike has 72,xxx miles and the factory manual that came with the bike has the transmission chapter ear marked. But all of the bolts were tight.

Thanks for for correcting me on the terminology as all of this is new to me. Also, is there a torque sequence to follow for the inner primary cover? My manual is pretty vague on the whole procedure and only gives me torque specs.

Last edited by husky390; Aug 18, 2017 at 08:32 AM.

Aug 18, 2017 | 08:36 AM

#17

carlgrover

Seasoned HDF Member

Joined: Oct 2007

Posts: 8,852

Likes: 2,493

From: Decatur, Alabama

what manual are you using? If it isn't the factory manual I'd recommend getting it and the factory parts manual. It will pay for itself on this job alone.

carl

Aug 18, 2017 | 08:59 AM

#18

husky390

Thread Starter

Advanced

Joined: Jul 2017

Posts: 93

Likes: 10

From: Colorado

Quote:

Originally Posted by carlgrover

what manual are you using? If it isn't the factory manual I'd recommend getting it and the factory parts manual. It will pay for itself on this job alone.

carl

It's the factory manual. It worked great for the engine project I did but short on details for this.
