Starter coupling

Thread Tools

Search this Thread

Old Mar 11, 2018 | 02:07 PM
Share
  #1
89FL's Avatar
89FL
Thread Starter
|
Intermediate
10 Year Member
Liked
Joined: Dec 2010
Posts: 49
Likes: 12
From: Los Angeles
Default Starter coupling

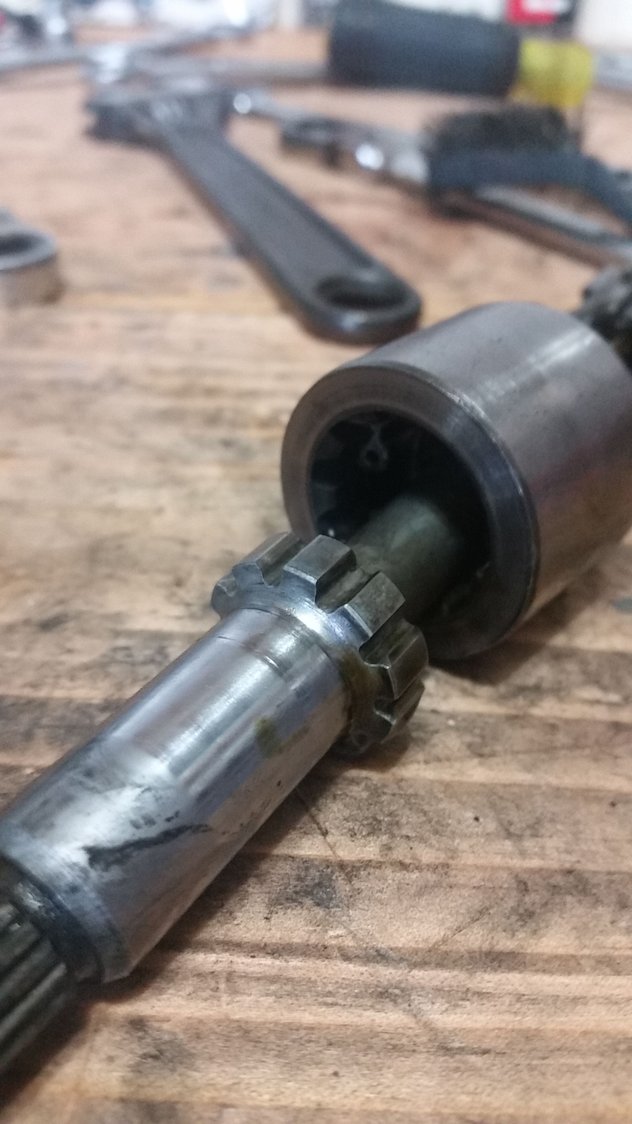

Any one know which way this coupling on the starter drive (#45) faces? there's an internal snap ring that is offset. The drawing sort of looks like the shorter end is facing out but can't be sure.

Attached Thumbnails Starter coupling-starter-45.jpg
Reply
0
Old Mar 11, 2018 | 04:01 PM
Share
  #2
Mattbastard's Avatar
Mattbastard
Grand HDF Member
Veteran: Air Force
15 Year Member
Liked
Top Answer: 3
Joined: Nov 2009
Posts: 4,315
Likes: 1,663
From: Tampa
Default
Lemme check, I never removed mine from 42 so the orientation should be OEM.

Reply
0
Old Mar 11, 2018 | 04:06 PM
Share
  #3
Mattbastard's Avatar
Mattbastard
Grand HDF Member
Veteran: Air Force
15 Year Member
Liked
Top Answer: 3
Joined: Nov 2009
Posts: 4,315
Likes: 1,663
From: Tampa
Default
Originally Posted by 89FL
Any one know which way this coupling on the starter drive (#45) faces? there's an internal snap ring that is offset. The drawing sort of looks like the shorter end is facing out but can't be sure.
Hot off the press, short snap ring side points towards starter:


Reply
0
Old Mar 11, 2018 | 04:44 PM
Share
  #4
89FL's Avatar
89FL
Thread Starter
|
Intermediate
10 Year Member
Liked
Joined: Dec 2010
Posts: 49
Likes: 12
From: Los Angeles
Default
Thanks so much. That saved the trial and error method

Reply
0
Old Mar 12, 2018 | 05:04 PM
Share
  #5
Jasper86's Avatar
Jasper86
Road Captain
10 Year Member
Photogenic
Joined: Sep 2012
Posts: 675
Likes: 32
From: Massachusetts
Default
took this pic a few years ago, and saved it on the phone. saved me a headache a few times (the 124 isnt kind to starter clutches)

Starter coupling-wbesvna.jpg

Reply
1
