My original is fine but I have a spare swingarm I'm gonna weld some reinforcing plates on and swap out the next time I change a tire.

Just getting ahead of any problems.


Reply
0
Old Dec 20, 2025 | 07:54 AM
Share
  #12
SparkyD's Avatar
SparkyD
Thread Starter
|
Road Master
10 Year Member
Liked
Loved
Community Favorite
Joined: May 2012
Posts: 798
Likes: 333
From: Washington State
Default
I've got everything apart and inspected the swingarm. Don't see any cracks, it's looks pretty good. Where specifically should I be looking for cracks???

Also, any tips to help get the old bushings out of the swingarm?

Reply
0
Old Dec 20, 2025 | 09:21 AM
Share
  #13
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default
It was said - inspect at the (wheel) axle slots.

Old bushings knock out from the inside to the outside.

What are you putting back in there - bushings or bearings?

Reply
0
Old Dec 20, 2025 | 09:27 AM
Share
  #14
SparkyD's Avatar
SparkyD
Thread Starter
|
Road Master
10 Year Member
Liked
Loved
Community Favorite
Joined: May 2012
Posts: 798
Likes: 333
From: Washington State
Default
Originally Posted by t150vej
It was said - inspect at the (wheel) axle slots.

Old bushings knock out from the inside to the outside.

What are you putting back in there - bushings or bearings?
Bushings

Reply
0
Old Dec 20, 2025 | 09:44 AM
Share
  #15
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default
Originally Posted by SparkyD
Bushings
OE doesn't offer the swing arm bushings (aftermarket are junk) and the early swing arm rubber isolators have a different offset. All this assuming you have the FLT type swing arm.

Post some pictures

Reply
0
Old Dec 20, 2025 | 11:14 AM
Share
  #16
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default
@SparkyD My apology. For whatever reason, I had '82 in my head rather than 1992. Please disregard post #15

Reply
1
Old Dec 20, 2025 | 01:51 PM
Share
  #17
SparkyD's Avatar
SparkyD
Thread Starter
|
Road Master
10 Year Member
Liked
Loved
Community Favorite
Joined: May 2012
Posts: 798
Likes: 333
From: Washington State
Default
Originally Posted by t150vej
@SparkyD My apology. For whatever reason, I had '82 in my head rather than 1992. Please disregard post #15
No worries, my therapist got me calmed down

Anyway, you had me taking another look at my books and what I have. I feel good about what I got to do except the one part I didn't order (which I'm ordering now) is the nylon spacer.

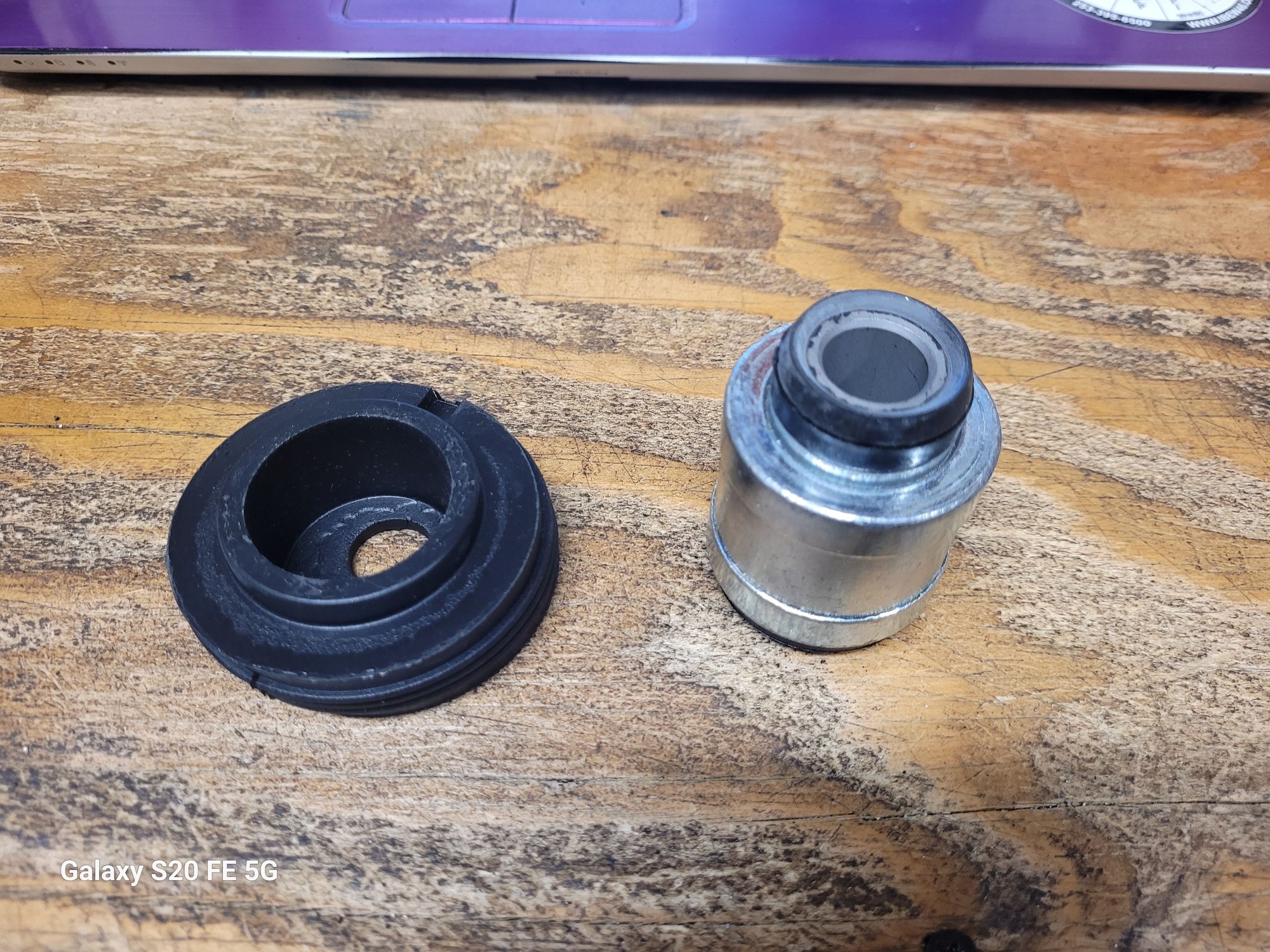

Here's some of the new parts



Reply
1
Old Dec 20, 2025 | 03:38 PM
Share
  #18
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default
Those bushings will go in from the inside of fork (toward the out) and try to keep them a snug as possible against the transmission eye.

Glad you're waiting on the nylon washers. 👍

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Dec 20, 2025 | 05:26 PM
Share
  #19
SparkyD's Avatar
SparkyD
Thread Starter
|
Road Master
10 Year Member
Liked
Loved
Community Favorite
Joined: May 2012
Posts: 798
Likes: 333
From: Washington State
Default

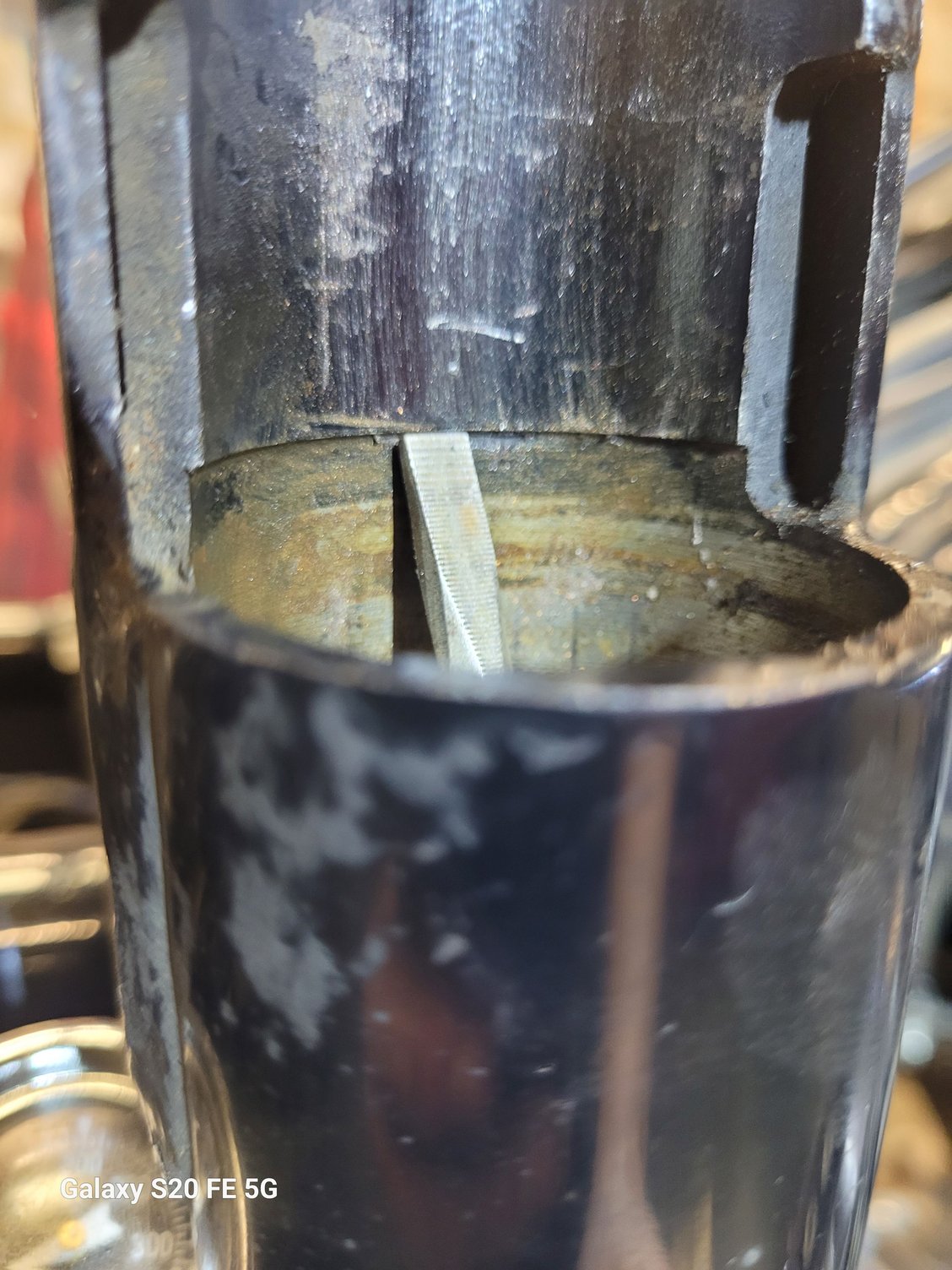

I believe they go in from the outside. In this pic, the screwdriver is up against a lip (about 1/16") on the inside of the swingarm.



Reply
1
Old Dec 20, 2025 | 05:34 PM
Share
  #20
t150vej's Avatar
t150vej
HDF Community Team
20 Year Member
Community Favorite
Top Answer: 3
Joined: Dec 2005
Posts: 5,404
Likes: 2,605
From: NC USA
Community Team
Default
You're right again. It's been 8 years I think since I did one.

I'm gonna shut up until you're done with this job.

Reply
1
