carb question
What kind of carb is in the pictures below?
I just bought this bike (first Harley - first bike in a long time) and the seller said it had an aftermarket carb on it. I don't remember what kind he said it was, and I can't see anything on it. I also couldn't find any pics online that looks exactly like it.
Thanks!

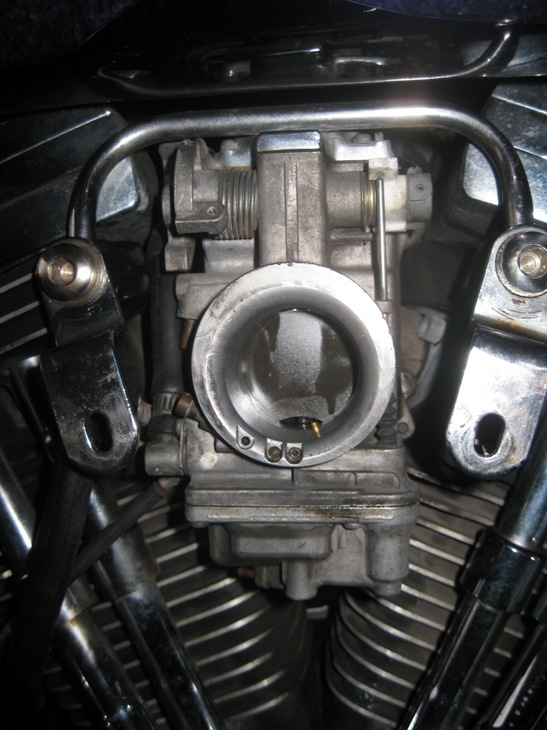

Front

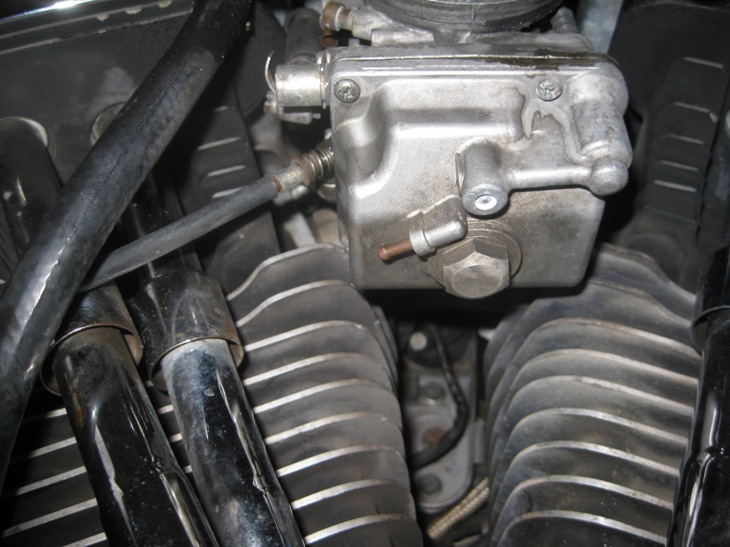

Bottom

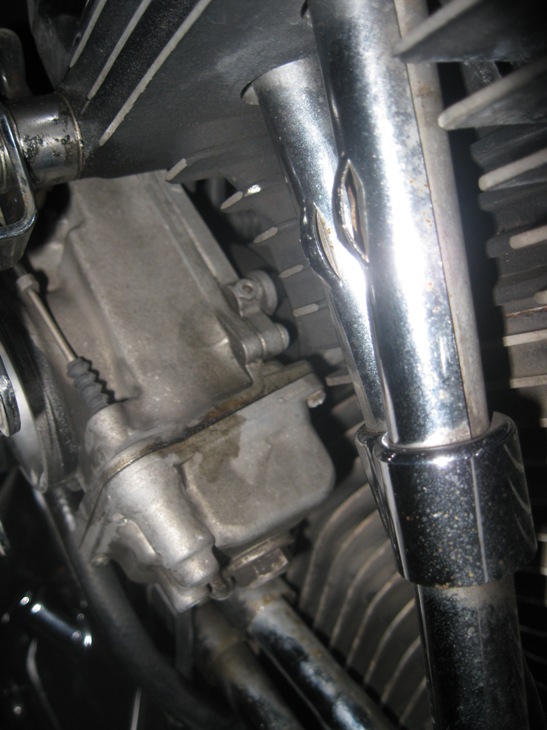

Side facing front

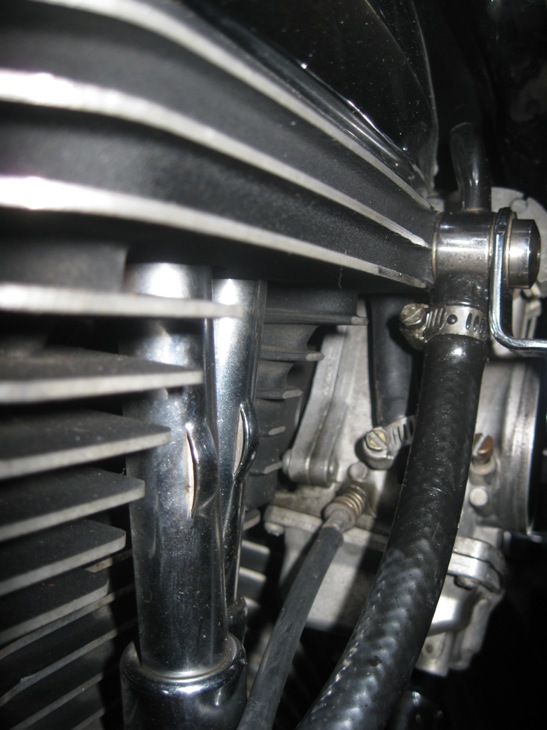

Side facing rear
I just bought this bike (first Harley - first bike in a long time) and the seller said it had an aftermarket carb on it. I don't remember what kind he said it was, and I can't see anything on it. I also couldn't find any pics online that looks exactly like it.
Thanks!
Front
Bottom
Side facing front
Side facing rear
Stellar HDF Member
Joined: Apr 2009
Posts: 3,039
Likes: 11
From: Northern Ontario
It looks like a mikuni hsr model. http://www.mikuni.com/fs-carburetor.html
Last edited by RidemyEVO; Feb 9, 2011 at 05:04 PM.
Seasoned HDF Member
Joined: May 2008
Posts: 21,180
Likes: 12,755
From: South Carolina
That is a Mikuni Flat Slide Smoothbore. Probably 42mm.
I have an old 40mm that looks just like it, but they discontinued the 40 mm quite a while ago, maybe 15 years...
Whichever one it is, it is a great carburetor. Lots of tuning information available from the distributor, Sudco.
http://www.sudco.com/mikuni.html
I have an old 40mm that looks just like it, but they discontinued the 40 mm quite a while ago, maybe 15 years...
Whichever one it is, it is a great carburetor. Lots of tuning information available from the distributor, Sudco.
http://www.sudco.com/mikuni.html
Seasoned HDF Member
Joined: May 2008
Posts: 21,180
Likes: 12,755
From: South Carolina
It looks like a 42 to me.
The 40 has two vent nipples on the front, but your carb has a single vent nipple on the left of the inlet (there is no hose on the vent nipple in the pic).
The 40 has two vent nipples on the front, but your carb has a single vent nipple on the left of the inlet (there is no hose on the vent nipple in the pic).
