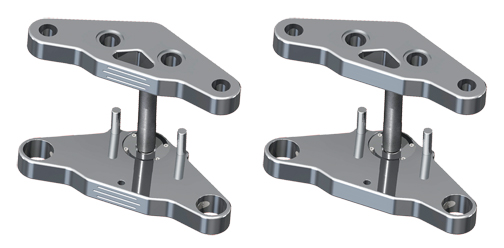

I am attempting to utilize Ultima Triple trees, Raked Tree, blind top.
Problem is..I think the Pich bolts or Whatever they put down there are missing.. odd arraingement anyway..
Wondering who has experience with these Buggers?? Specifically the method of "clamping tubes to Bottom tree???
Thanks in Advance
#1 Make sure the stem slips freely in the lower tree and threads easily in the upper.
#2 pack the bearing and set the upper in the cup with dust shield if supplied.
#3 Stem in the lower, bearing in place on it, thread up through the neck into the upper till semi loaded.
#4 Now insert the assembled and pre filled fork legs, pulling the caps on snug to hold the trees & legs together.
#5 Preload the falloff and lock the stem in the lower tree with the legs still semi floating.
#6 Square everything, tighten the tube caps but not torqued, check the square again and things are seated solidly then set the tube pinch wedges in the lower tree.
I usually throw the axle and wheel on at this point to recheck alignment on everything then tighten the tube caps down solidly.
This was the general instructions that came with my big inverted legs and the blind trees.
Blue loctite on all the retainer and locking bolts and check tregular for a couple hundred miles, crap does work loose with them. Those 1/2 moon wedges don't grip as solidly as a slot and pinch bolt does, Once it bounces around and things finds their happy it settled down.
I haven't handled those trees before, but I know how the pinch bolts work.

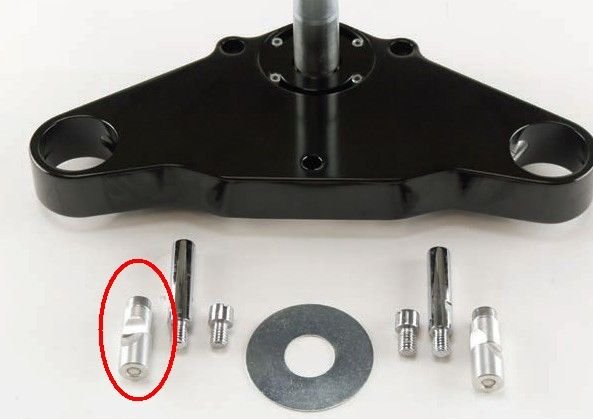

Have you seen this pic before? ... Pinch bolt circled
.
^^ What I kinda thought they would be... Me No Likey!!!
Originally Posted by TwiZted Biker
#1 Make sure the stem slips freely in the lower tree and threads easily in the upper.
#2 pack the bearing and set the upper in the cup with dust shield if supplied.
#3 Stem in the lower, bearing in place on it, thread up through the neck into the upper till semi loaded.
#4 Now insert the assembled and pre filled fork legs, pulling the caps on snug to hold the trees & legs together.
#5 Preload the falloff and lock the stem in the lower tree with the legs still semi floating.
#6 Square everything, tighten the tube caps but not torqued, check the square again and things are seated solidly then set the tube pinch wedges in the lower tree.
I usually throw the axle and wheel on at this point to recheck alignment on everything then tighten the tube caps down solidly.
This was the general instructions that came with my big inverted legs and the blind trees.
Blue loctite on all the retainer and locking bolts and check tregular for a couple hundred miles, crap does work loose with them. Those 1/2 moon wedges don't grip as solidly as a slot and pinch bolt does, Once it bounces around and things finds their happy it settled down.
Huh Guess I will try it, some of it...But..this stem is In the top tree and the stem nut is From the bottom of the bottom tree..Odd Stuff all around!!
Wonder if them damn pinch bolts are available from Ultima...via slow Boat maybe??
Big Thank you to Both of Ya's...Appreciate the reply's...
Reviving this thread to say that I would Avoid these type tree.. that clamp method is Mickey Mouse at best!! I will be developing something improved....Soon...well Soon for me anyway...I do Not move very fast!!
I had those Ultima trees on my Shovelhead hardtail. The pinch bolt looked quite sketchy but they held up fine for three years of hard riding before I sold the bike, nothing ever came loose. So I guess they work.
