Engine changeout


  #1
Old 02-11-2019, 09:31 PM
Mertoid
Mertoid is offline
One Of The Regulars
Thread Starter
Join Date: May 2011
Location: NW Illinois
Posts: 176
Thanks: 0
Thanked 31 Times in 25 Posts
Default Engine changeout

Posted this in the Touring section as well, but I'm hoping it might get a broader response here.
Engine swap tips
I'm getting ready to swap engines in my 2011 Street Glide. It has 107k miles and I got a great deal on a takeout 2015 103 with a stage 2 and only 8200 miles on it. After removing the primary, exhaust, intake and all the ancillary bits, unbolt the trans, it looks like it should be tipped one way or the other and come out the right side. What tips do you guys have to do this swap?


Last edited by Mertoid; 02-11-2019 at 09:32 PM.
  #2
Old 02-11-2019, 10:11 PM
ScottinAZ's Avatar
ScottinAZ
ScottinAZ is offline
Road Captain
Join Date: Apr 2017
Location: Mesa AZ
Posts: 695
Thanked 287 Times in 160 Posts
Default

sounds as if you have the right idea, but I would add that if you have access to a service manual to take a look at it. There are ways shown to support the trans with the engine separated, IIRC a strap from one side over the frame to the other, but I dont remember off hand the points used. other than that, Label what you need to disconnect, and keep track of all the small parts. Its a mechanical assembly, so as long as you take it apart, then you should be able to put it back together with little issues.

  #3
Old 02-11-2019, 10:35 PM
texashillcountry's Avatar
texashillcountry
texashillcountry is offline
Dirt don't hurt
Join Date: Jan 2011
Location: Dripping Springs Texas
Posts: 18,359
Thanks: 0
Thanked 1,519 Times in 931 Posts
Default

Originally Posted by Mertoid View Post
Posted this in the Touring section as well, but I'm hoping it might get a broader response here.
Engine swap tips
I'm getting ready to swap engines in my 2011 Street Glide. It has 107k miles and I got a great deal on a takeout 2015 103 with a stage 2 and only 8200 miles on it. After removing the primary, exhaust, intake and all the ancillary bits, unbolt the trans, it looks like it should be tipped one way or the other and come out the right side. What tips do you guys have to do this swap?
Wrap the frame and rocker covers in blue painters tape to keep from scratching them.
Also wrap anything that might be scratched.

  #4
Old 02-11-2019, 10:35 PM
Mertoid
Mertoid is offline
One Of The Regulars
Thread Starter
Join Date: May 2011
Location: NW Illinois
Posts: 176
Thanks: 0
Thanked 31 Times in 25 Posts
Default

I do have the factory service manual, I'll give it a good look tomorrow. I have seen posts where the trans is supported by either a strap or a block of wood.

  #5
Old 02-11-2019, 10:38 PM
Mertoid
Mertoid is offline
One Of The Regulars
Thread Starter
Join Date: May 2011
Location: NW Illinois
Posts: 176
Thanks: 0
Thanked 31 Times in 25 Posts
Default

I have a number of pieces of split heater hose that I've used on race bike engine swaps in years past. Hope they're not too thick, otherwise I'll layer some tape on the frame tubes.

  #6
Old 02-11-2019, 10:38 PM
texashillcountry's Avatar
texashillcountry
texashillcountry is offline
Dirt don't hurt
Join Date: Jan 2011
Location: Dripping Springs Texas
Posts: 18,359
Thanks: 0
Thanked 1,519 Times in 931 Posts
Default

Originally Posted by Mertoid View Post
I do have the factory service manual, I'll give it a good look tomorrow. I have seen posts where the trans is supported by either a strap or a block of wood.
When I pulled the motor on a TC (only did it once) I supported the trans with a thin bit of plywood.

  #7
Old 02-11-2019, 10:42 PM
Mertoid
Mertoid is offline
One Of The Regulars
Thread Starter
Join Date: May 2011
Location: NW Illinois
Posts: 176
Thanks: 0
Thanked 31 Times in 25 Posts
Default

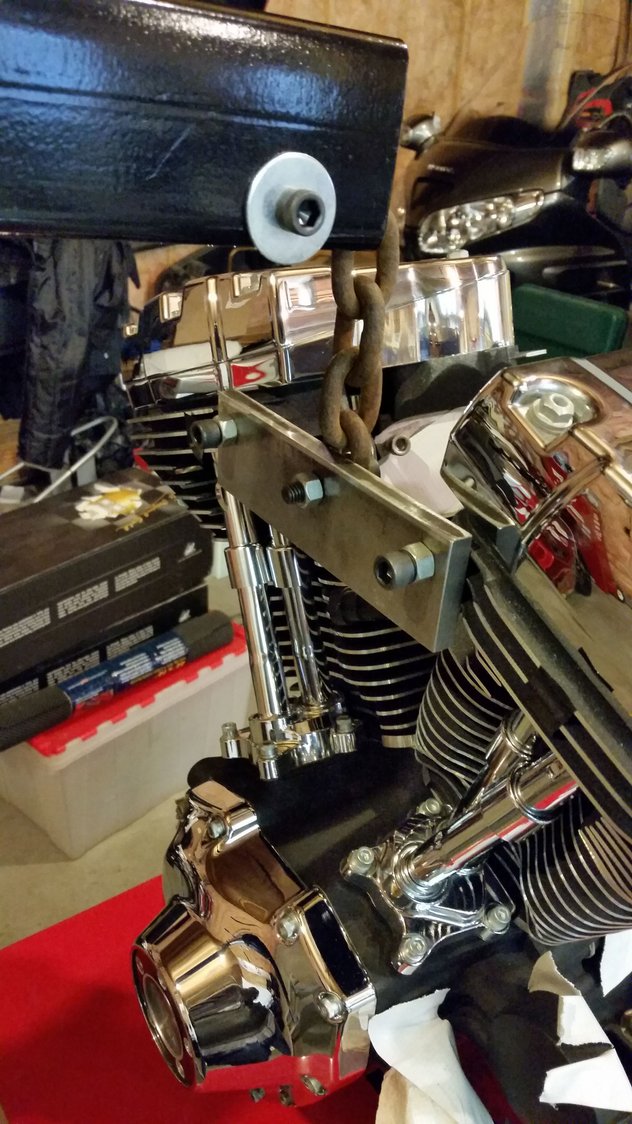

I found a post showing a setup using an engine hoist to lift. So I made a similar fixture to lift by the breather bolt holes.
