Throttle by wire

Thread Tools

Search this Thread

Old May 26, 2023 | 03:39 PM
Share
  #1
Tyler24's Avatar
Tyler24
Thread Starter
|
Stage III
Joined: May 2023
Posts: 3
Likes: 0
From: Indiana
Default Throttle by wire

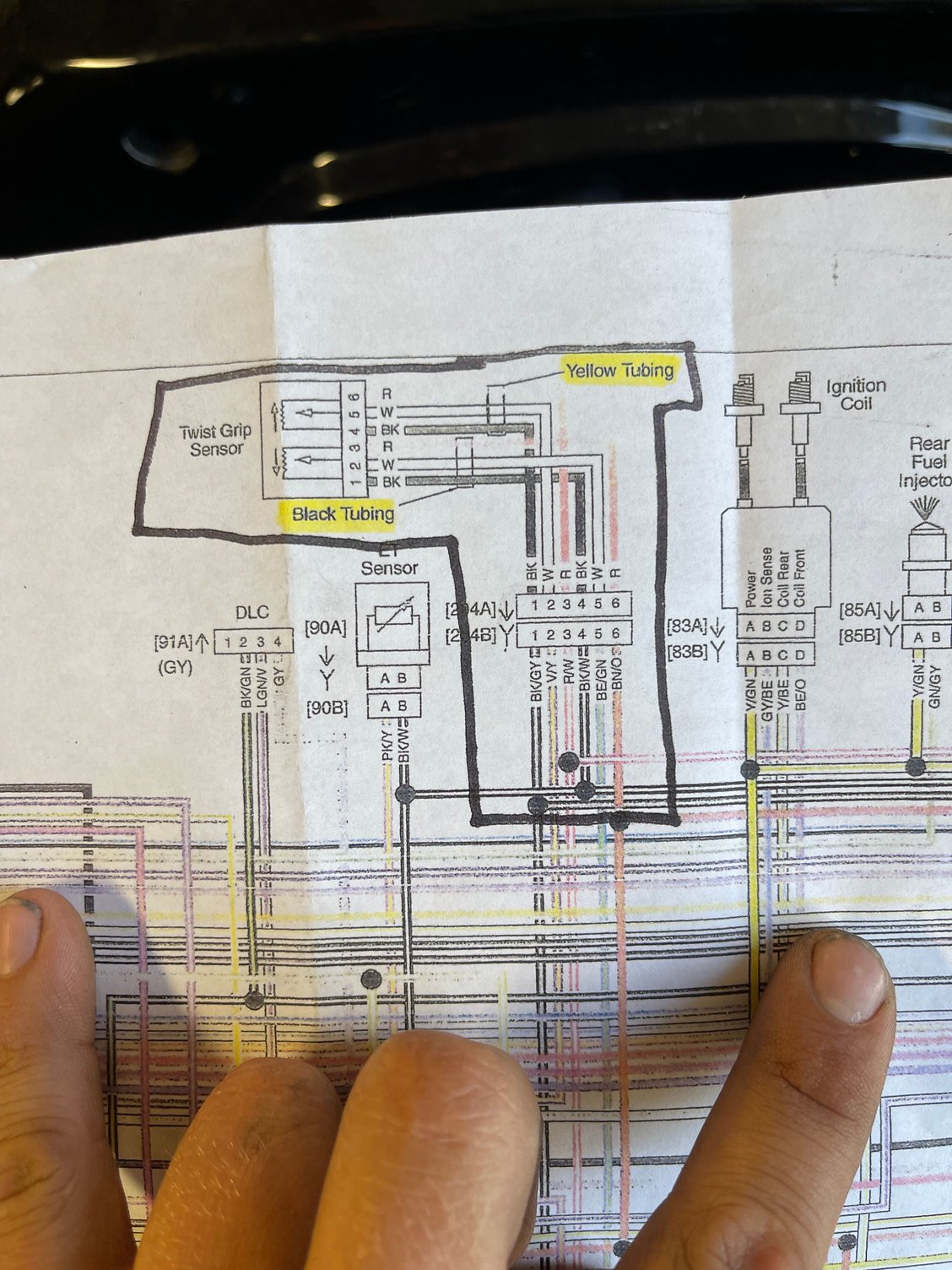

Just put 14” bars on a 2013 street glide. With the throttle by wire plugged in the bike is hard starting, when it does started it bounces off the rev limiter. If I unplug it, it starts and idles fine. Looking at the wiring diagram I don’t see any wires in the wrong spot. What am I missing?

Reply
0
Old May 26, 2023 | 05:05 PM
Share
  #2
Black Ultra's Avatar
Black Ultra
Road Master
Photogenic
Photoriffic
Liked
Joined: Feb 2023
Posts: 972
Likes: 850
From: Hudson, CO
Default
Maybe you scraped a wire when pulling through the bars and now it's shorting inside the bars?

Reply
0
Old May 26, 2023 | 05:12 PM
Share
  #3
Tyler24's Avatar
Tyler24
Thread Starter
|
Stage III
Joined: May 2023
Posts: 3
Likes: 0
From: Indiana
Default
I held the throttle wide open. Started and idled fine. Wires are backwards but looking at the diagram I had it wired correctly. Not sure if it’s a mistake from Harley or what but I think I got it. If anyone has sip access it would be something I’d like to know if it’s a mistake in the manual or not.

Reply
0
Old May 26, 2023 | 05:51 PM
Share
  #4
Ohio HD's Avatar
Ohio HD
Road Master
10 Year Member
Joined: Mar 2012
Posts: 1,051
Likes: 1,001
From: Ohio
Default
This link is to the 2013 touring bikes wiring diagrams from the HD site.


2013 Wiring Diagrams for Touring Bikes

Reply
0
Old May 26, 2023 | 05:55 PM
Share
  #5
Tyler24's Avatar
Tyler24
Thread Starter
|
Stage III
Joined: May 2023
Posts: 3
Likes: 0
From: Indiana
Default

I had to flip the yellow and black tubing.

Reply
0
Old May 27, 2023 | 04:40 AM
Share
  #6
V-Twins & Bowties's Avatar
V-Twins & Bowties
Road Warrior
Joined: Dec 2010
Posts: 1,268
Likes: 507
From: Florida
Default
Base color looks to be very close. Black and grey / Black and white.
Haven't put eyes on them personally but that might have been what you did.
A bit color blind are you ?

Reply
0
Old May 27, 2023 | 11:46 AM
Share
  #7
hardheaded's Avatar
hardheaded
Seasoned HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2012
Posts: 11,241
Likes: 3,063
From: St.Louis Mo.
Default
You are not the first guy to do this. Ride on !

Reply
0

Trending Topics

Old May 28, 2023 | 05:48 PM
Share
  #8
Ultra103's Avatar
Ultra103
Road Warrior
15 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2008
Posts: 1,958
Likes: 1,353
From: Arkansas
Default
Switched the TBW pairs. Easy fix.

Reply
0
