Gap in Axle

NCBANDIT · 2021-08-08 12:24:34

https://cimg0.ibsrv.net/gimg/www.hdforums.com-vbulletin/732x975/axlea_c8b8cea7edf51ebbf45688a7ead034312532961c.jpg The step is here, this is where the axle goes against the spacer, Just remove the axle cap and take a look... Here`s some pics from an Evo Softail: https://cimg4.ibsrv.net/gimg/www.hdforums.com-vbulletin/368x490/axlea_363a446bf1b915f8bb40b369f4e620f2c920a697.jpg Step on axle, not pulled together yet. https://cimg8.ibsrv.net/gimg/www.hdforums.com-vbulletin/490x368/axleb_48759230d7528bf37f4a68348e2b56cba719f78d.jpg Axle pulled in and torqued, step is now against the spacer. https://cimg5.ibsrv.net/gimg/www.hdforums.com-vbulletin/490x368/axlec_cd967889360384c54ca6e88ad7f4155d1e96b3d5.jpg Axle torqued, cap installed.

Reply Subscribe

Thread Tools

Search this Thread

Aug 9, 2021 | 08:30 AM

#11

Dan89FLSTC

Seasoned HDF Member

Joined: May 2008

Posts: 21,144

Likes: 12,709

From: South Carolina

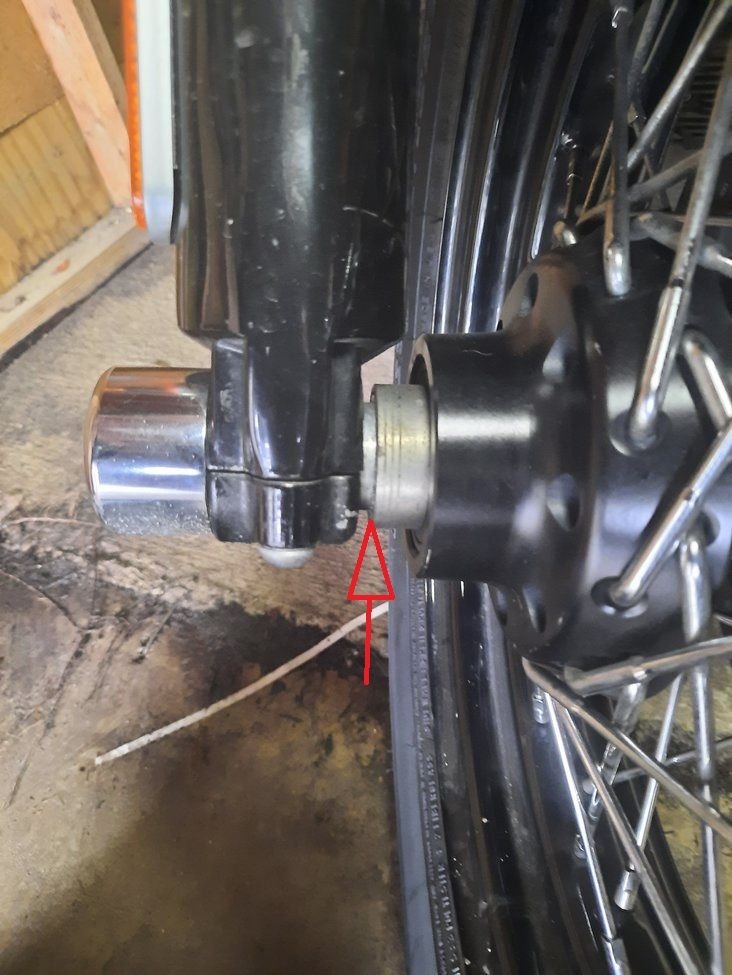

The step is here, this is where the axle goes against the spacer,
Just remove the axle cap and take a look...

Here`s some pics from an Evo Softail:

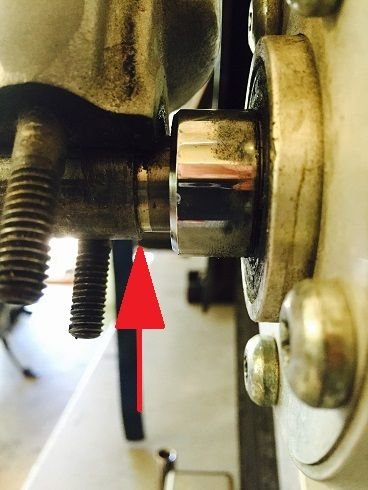

Step on axle, not pulled together yet.

Axle pulled in and torqued, step is now against the spacer.

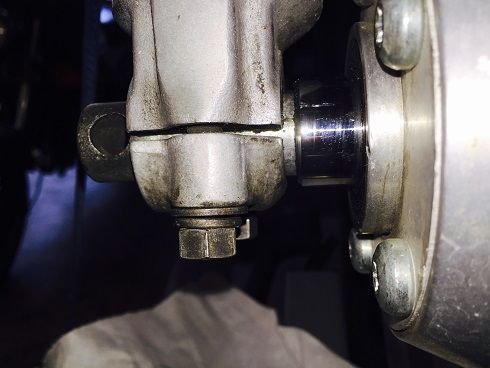

Axle torqued, cap installed.

Last edited by Dan89FLSTC; Aug 9, 2021 at 08:57 AM.

Aug 9, 2021 | 08:57 AM

#12

Jackie Paper

Seasoned HDF Member

Joined: Mar 2010

Posts: 38,537

Likes: 6,412

From: Honah Lee

Quote:

Originally Posted by Dan89FLSTC

Some of you are not reading that illustrated parts diagram correctly...

The mini hubcap may be shown in the illustration, but if you try to find detail 16 on the parts list, you will see that it is not listed, meaning it is not used on the 2016 Softail Slim S.

Cool. I was just guessing since I posted before he put bike and year in his original.

So you are saying that wasn't some option that a dealer could install?

Maybe there is a interference with the slider design on the 2016 Slim but it sure looks like crap.

Last edited by Jackie Paper; Aug 9, 2021 at 09:04 AM.

Aug 9, 2021 | 08:51 PM

#13

F150HD

Grand HDF Member

Joined: Mar 2011

Posts: 4,816

Likes: 1,320

From: Good roads, cold beer

I was referring to this
-

Aug 9, 2021 | 09:03 PM

#14

hattitude

Seasoned HDF Member

Joined: Sep 2008

Posts: 14,144

Likes: 11,219

From: San Diego, CA

Quote:

Originally Posted by F150HD

I was referring to this
-

Pretty sure that's what Dan89FLSTC was showing in his pics with the slider cap removed... One pic with the step before being pulled in by the torque, and another with the step up against the spacer after torqued. Both before the cap was replaced..

Of course, his pics had some flash glare and a dirtier axle...
