Headlight wire removal

Reply Subscribe

Thread Tools

Search this Thread

Nov 21, 2015 | 08:19 PM

georgelemos

Thread Starter

Stage II

Joined: Nov 2015

Posts: 2

Likes: 0

From: Brazil

Headlight wire removal

Hi guys,
I was looking hard at google about this second wire connected to the headlight assembly but couldn't find anything.

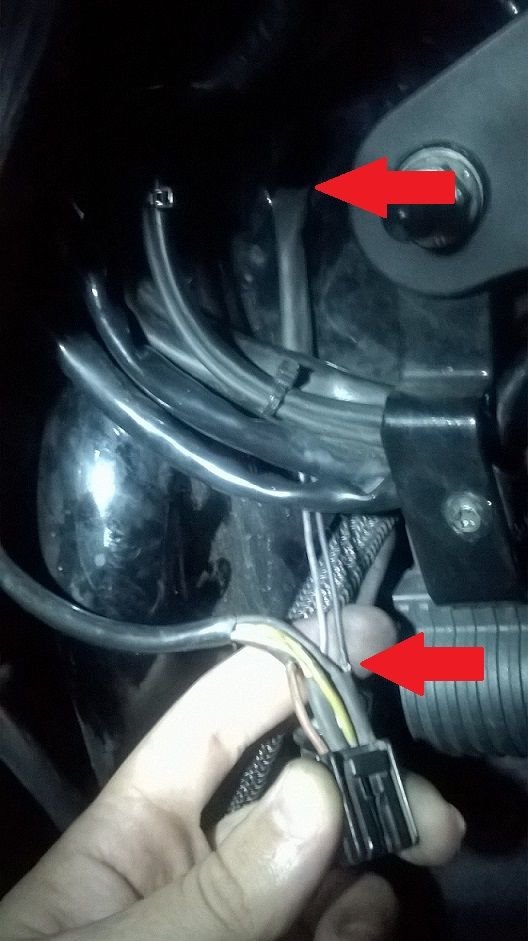

Any of you know how do i remove the top wire as below photo ? I can remove the main wire with no problem, but the second one is on the neck of the fork and I can't see where it is connected.

Nov 22, 2015 | 08:21 AM

HarleyScuba

Grand HDF Member

Joined: Jul 2007

Posts: 4,007

Likes: 126

From: Manassas, VA

Remove the pins from the black connector and pull the wires through the hole?

Nov 22, 2015 | 01:17 PM

hscic

Grand HDF Member

Joined: Dec 2014

Posts: 4,890

Likes: 553

From: USA

According to the schematics the headlight assembly should have: Headlight - black, yellow, white and Position Lamp - Orange, White with a ground from the black to the position lamp. Schematics indicate Position Lamp is for HDI only. I am assuming HDI means something like Harley Davidson International. I only have three wires black ground, yellow low, and white high on my bike (US). I just bought a headlight that had a position lamp in it with two wires, but since it is not required in the US, I just taped it up.

Last edited by hscic; Nov 22, 2015 at 01:23 PM.
