Missing frame fastener

I seem to have lost a fastener on the frame of my 2013 Custom, left side, between the battery and the tank:
https://i.imgur.com/2KFfeXp.jpg

I couldn't find it in the service manual, but I think I can see it in this image showing the side cover removal:
https://i.imgur.com/9M4It2u.jpg

Here's a closeup:
https://i.imgur.com/YSTsmGW.jpg

I've looked through the entire Chassis section of the 2013 service manual, can't find it. Can anyone tell me what this fastener is, and what it's for? And for my own sanity, where I can find it in the service manual?

Last edited by epswing; Aug 5, 2019 at 09:22 PM.

Aug 6, 2019 | 05:43 AM

Andy from Sandy

Seasoned HDF Member

Joined: Sep 2017

Posts: 12,185

Likes: 4,907

From: England

I have a flanged bolt in that hole on my 2017 but with everything in place I cannot determine if it is holding something inside the frame. It is not holding anything to the side of the frame.

http://partsfinder.onlinemicrofiche....T%20W/%20LINES

Could it be screw #1?

Last edited by Andy from Sandy; Aug 6, 2019 at 06:00 AM.

Aug 6, 2019 | 08:06 AM

epswing

Thread Starter

Advanced

Joined: Jul 2019

Posts: 89

Likes: 29

From: GTA

Quote:

Originally Posted by Andy from Sandy

Hey @Andy from Sandy thanks for looking. It certainly does look like screw #1. Especially considering the screw on the other side (oil tank side) is angled in a similar way. I'll try to confirm this today. My fear now is that angled inner bracket (#18 in the image) has moved a bit, and once I get the screw, I won't be able to get it in without taking apart the whole oil tank.

To be continued...

Aug 6, 2019 | 08:27 AM

Andy from Sandy

Seasoned HDF Member

Joined: Sep 2017

Posts: 12,185

Likes: 4,907

From: England

The thread you can see in the hole is hopefully that of the oil tank bracket (assuming I have got it right). With the tank in place and the other screw firmly in place maybe the bracket is unable to move.

Just to confirm there is the same screw on the other side of the frame.

Last edited by Andy from Sandy; Aug 6, 2019 at 08:28 AM.

Aug 6, 2019 | 11:00 AM

Midpegs

Outstanding HDF Member

Joined: Apr 2019

Posts: 2,180

Likes: 1,125

From: Coventry , England

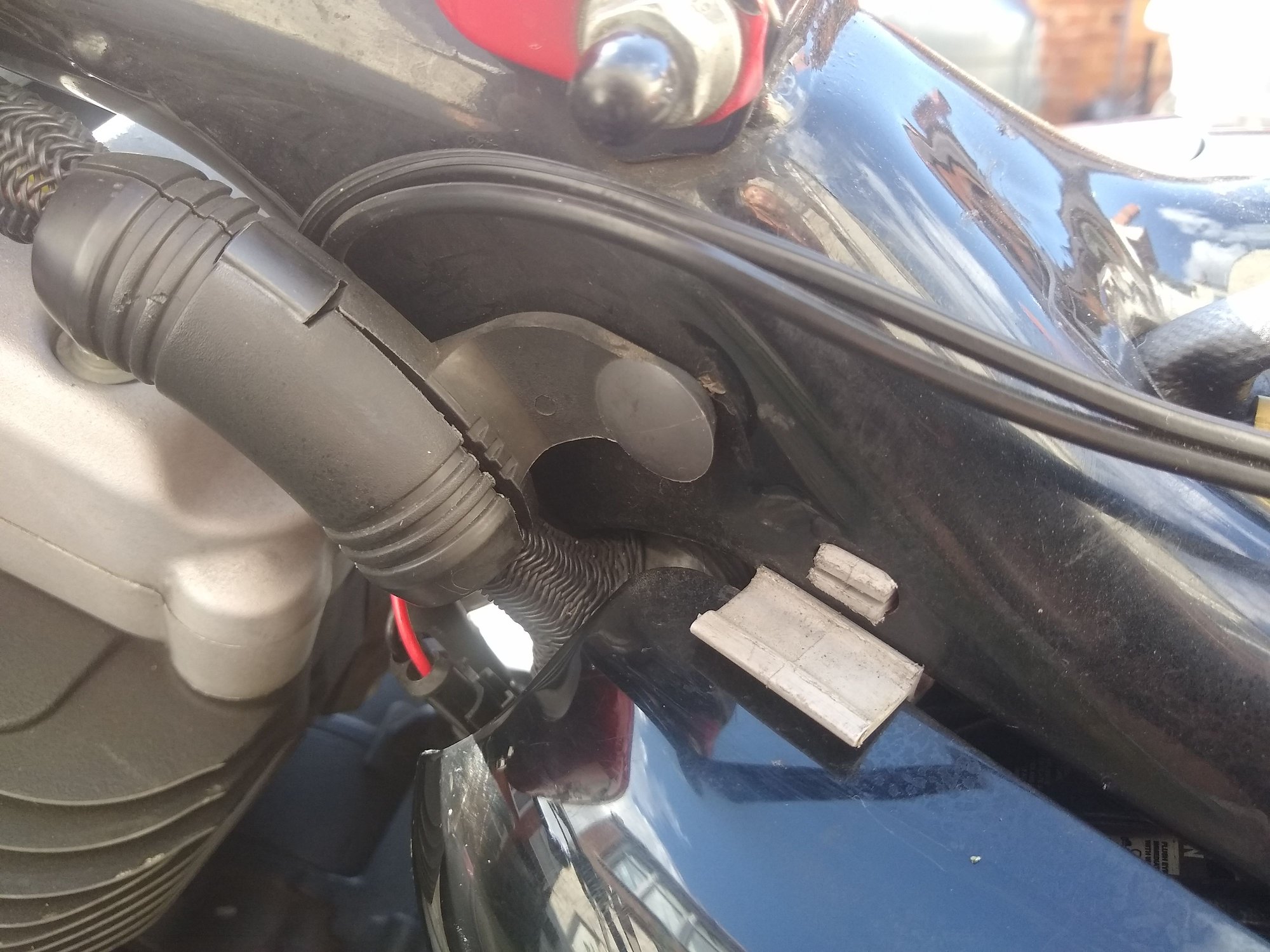

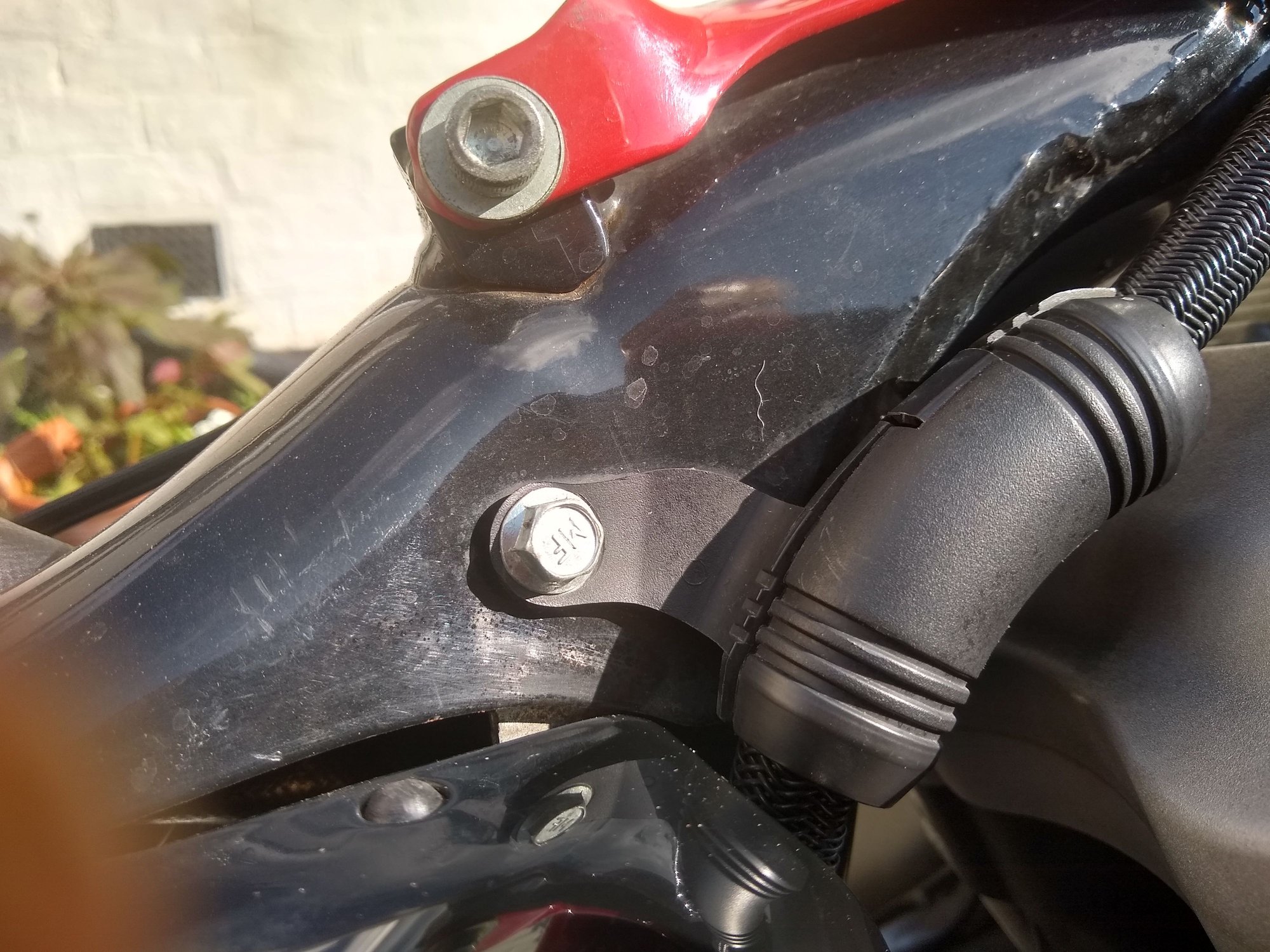

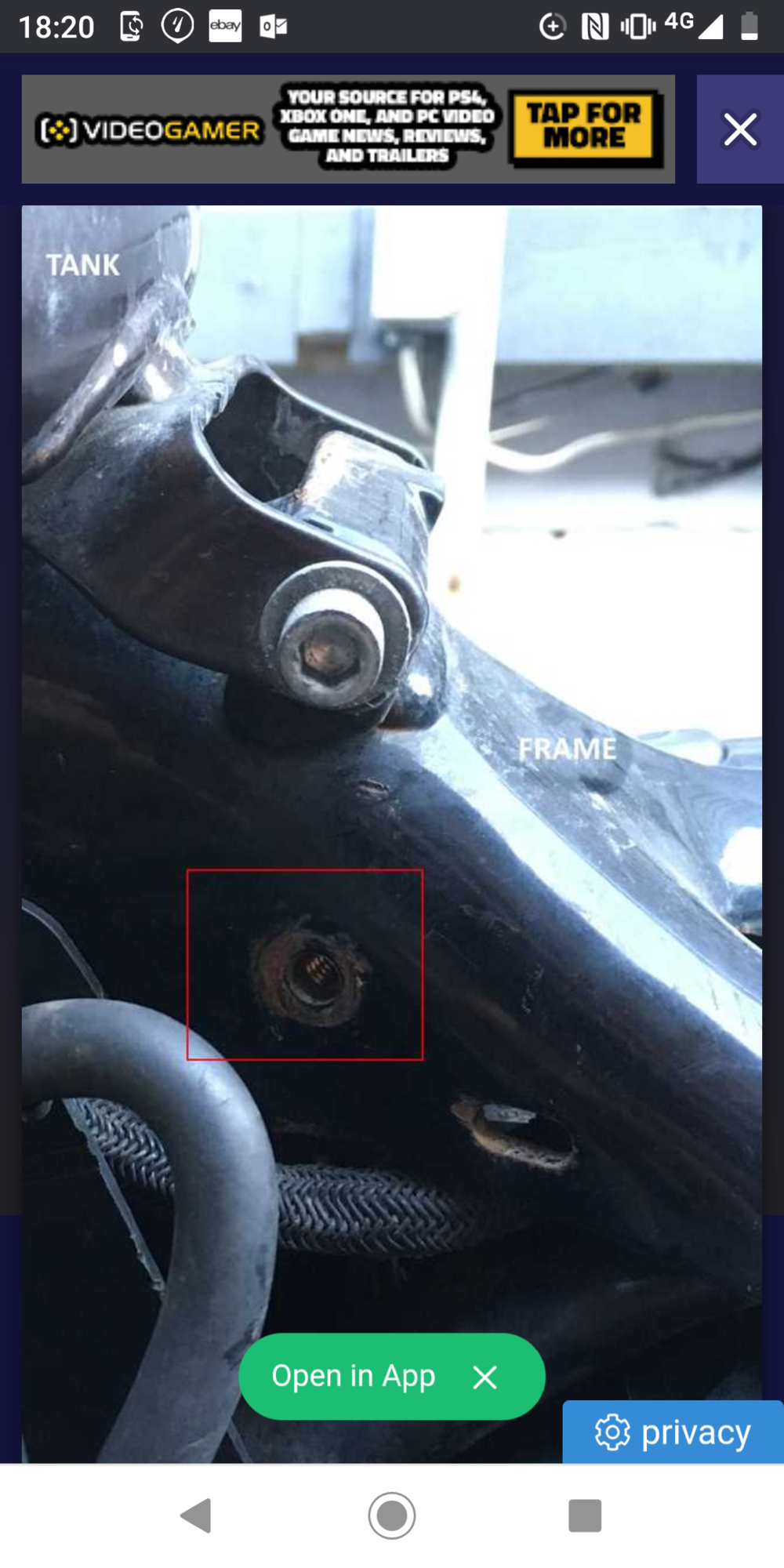

The threaded holes that are causing you concern are where the wiring loom should be secured to the frame by means of the curved plastic sleeve . Like this . On the right I have a bolt which also supports the oil tank and on the other side what appears to be just a push in plastic panel fastener. Looks like someone has just ditched the plastic sleeves on your bike and not plugged the hole or replaced the bolt . They are a little unsightly I suppose . Hope this puts your mind at rest .
