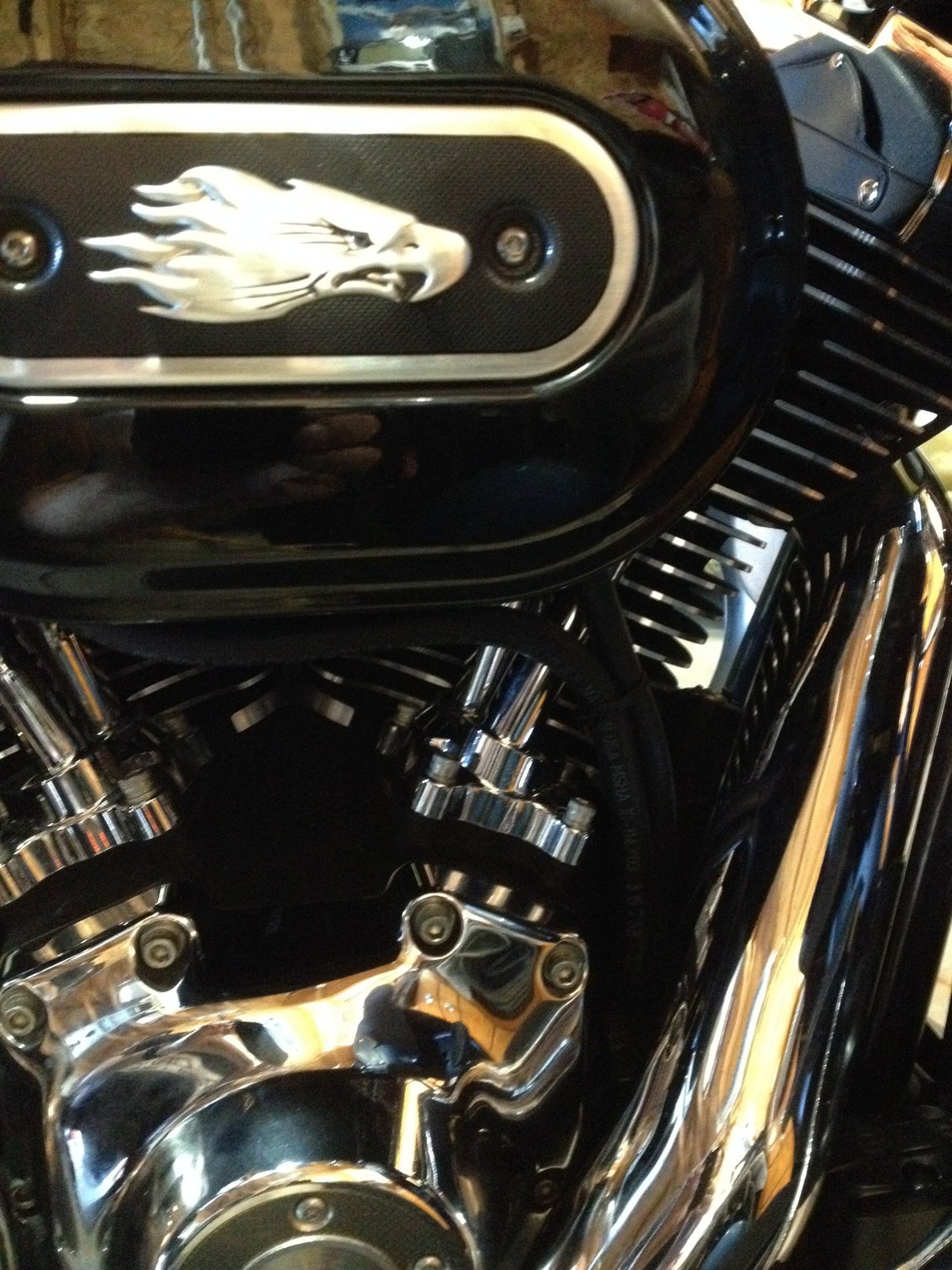

Finally did my breather bypass (pics included)
Tourer
Joined: Aug 2006
Posts: 412
Likes: 28
From:
barb
I highly doubt it. Look at my parts list a few posts above. This barb is MADE to use that specific HOSE to be clamp free. Any other barb/hose connection will not work. BTW I chose to route my hoses to atmosphere.
Road Master
Joined: Feb 2007
Posts: 908
Likes: 121
From: VA
I am going to do the breather mod this weekend to my Ventilator. I am using brass push-on hose barbed fittings that I ordered from McMaster-Carr part # 91465K11 and push on hose # 5283K31. With this setup you do not need hose clamps. But you have to use that fitting and hose combination. We use these in the plastic injection mold industry all the time on our molds. The hose does NOT come off, in fact you have to cut them off for removal.
25/64" drill
M10x1.25 Tap?
Also to DK, if you buy a few back plates, for me the new CVO backplate, and drill it for me..I would be game...
Thanks!!
Last edited by mastergunnera8; May 3, 2017 at 10:41 AM.
Tourer
Joined: Aug 2006
Posts: 412
Likes: 28
From:
barb
Well why don't you pull the part number out of your *** then and show everybody? Then we can compare the barbs side by side and see IF it's the same barb. Until you do, you ARE talking out your ***.
Tourer
Joined: Aug 2006
Posts: 412
Likes: 28
From:
drill tap size
The barb I used is a 1/8 NPT which requires a 11/32 dia drill and a 1/8 NPT pipe tap.
M10x1.25 is metric. I don't so metric
Tourer
Joined: Aug 2006
Posts: 412
Likes: 28
From:
And just to make sure we are comparing apples to apples, here is the McMaster Carr link that clearly states
"You don't need a clamp or ferrule to attach these fittings to hosepush them in until the ring covers the hose end."
"Note: These fittings are only for use with hose for push-on fittings"
so when you try and pass off another type of hose barb out of ignorance,
this information will set the parameters of what works and what will not work with clamps
https://www.mcmaster.com/#catalog/123/320/=17hjefo
Elite HDF Member
Joined: Nov 2013
Posts: 4,377
Likes: 647
From: Santa Clarita
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
Elite HDF Member
Joined: Nov 2013
Posts: 4,377
Likes: 647
From: Santa Clarita
Because I don't give a ruby red rip if you or anybody else believes me, and why should I do any research on it? I've given whoever asked about it enough information to find out for themselves. And I did this because I know the Edelman line. I don't know if McMaster Carr sells that line. I suspect they don't.
If you don't know what I know, and if you're not willing or able to research that line, don't get clever.
If you don't know what I know, and if you're not willing or able to research that line, don't get clever.
Road Warrior
Joined: Feb 2013
Posts: 1,625
Likes: 123
From: Meridian, Idaho
Because I don't give a ruby red rip if you or anybody else believes me, and why should I do any research on it? I've given whoever asked about it enough information to find out for themselves. And I did this because I know the Edelman line. I don't know if McMaster Carr sells that line. I suspect they don't.
If you don't know what I know, and if you're not willing or able to research that line, don't get clever.
If you don't know what I know, and if you're not willing or able to research that line, don't get clever.
