So here is my issue, 2013 FLHTK. When I turn on the left turn signal the hazard lights come on, but on the dash it looks normal. If I touch either brake, front or rear the hazard lights come on. The right turn signal works just fine. If I touch (apply) either brake the red Key (security ?) light comes on, any thoughts?

Jul 4, 2015 | 09:46 PM

EasternSP

Seasoned HDF Member

Joined: Jun 2006

Posts: 30,875

Likes: 32,914

From: King George, VA

Do you have a fresh Gremlin bell?

Jul 4, 2015 | 10:22 PM

ORradtech

Outstanding HDF Member

Joined: May 2015

Posts: 2,172

Likes: 377

From: Georgia

Did the problems start all at once or come on gradually?
Anything that may have precipitated the problem like voltage spikes, switch, handlebar, wiring changes or repairs?
Have you checked for trouble/engine codes?
How old is the battery?
Have you checked for clean and tight grounds everywhere?

Jul 5, 2015 | 12:03 AM

TcHunter

Outstanding HDF Member

Joined: Mar 2014

Posts: 2,452

Likes: 23

From: Michigan

Have you added anything that consisted of new wiring?

Sounds to me like there is a molex wired wrong.

Jul 5, 2015 | 03:31 AM

SafetyMan

Ultimate HDF Member

Joined: Jun 2007

Posts: 7,970

Likes: 85

From: San Antone

Check DTC's?

Jul 5, 2015 | 06:56 AM

DK's Limited

Thread Starter

Cruiser

Joined: Aug 2013

Posts: 230

Likes: 4

From: San Antonio, TX

Nothing is new, and it started very abruptly, i read possibly a Turn signal relay?

Jul 5, 2015 | 07:30 AM

Vernal

Club Member

Joined: Apr 2013

Posts: 7,681

Likes: 8,413

From: Utah

Quote:

Originally Posted by DK's Limited

Nothing is new, and it started very abruptly, i read possibly a Turn signal relay?

TSM/TSSM/HFSM, = Turn Signal Module - Turn Signal and Security module -
Hands Free Security Module.

Check connectors

http://www.boardtrackerharleyonline....odule-68924-07

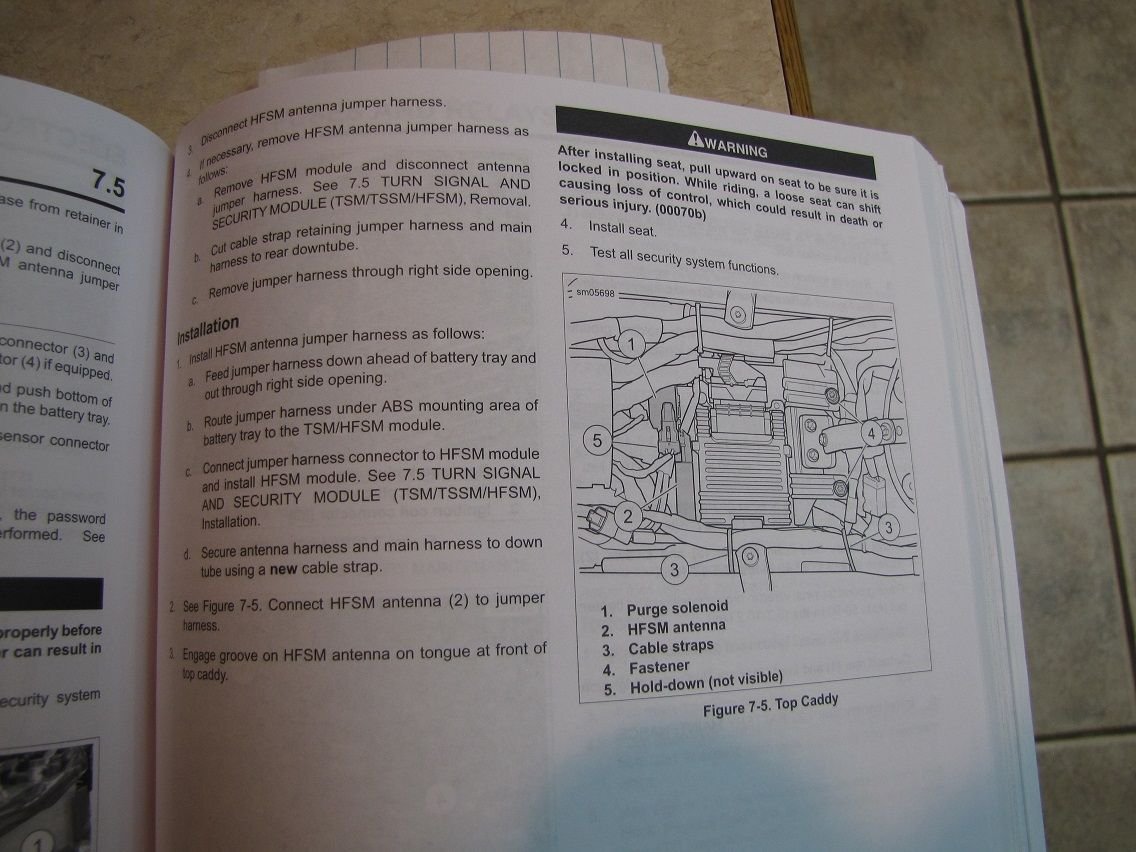

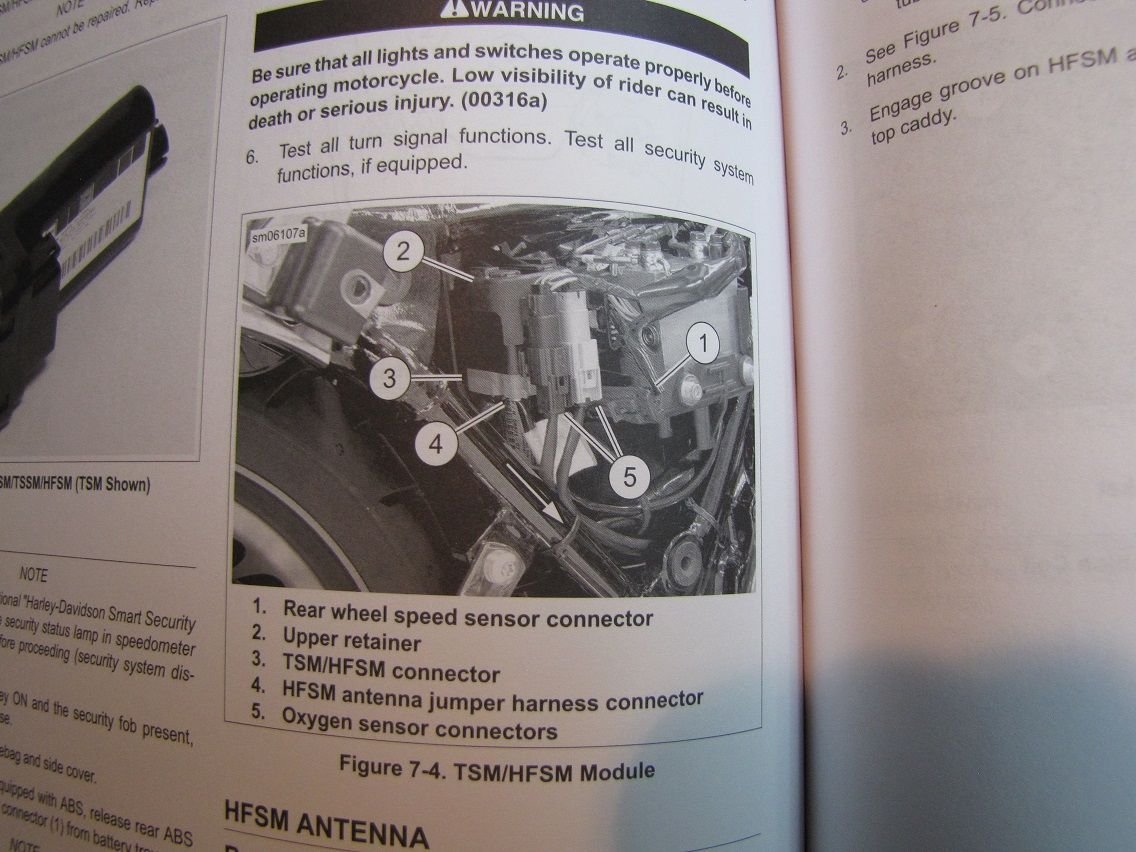

Pictures are from a 2012 Service Manual.

Good Luck
