Picture Needed

I have a weird request for a picture.......

Years ago I removed the rear intercom plug stuff and tucked it away next to the battery. Now I want to put it back in place to start using headsets, and I can't remember how the spring and wire run.

It's on my 2005 Ultra Classic.

Can anyone post a picture showing how the spring runs and how the wire runs?

I already have the clip on the bottom of the speaker pod, and I have the wire back to the area......but the spring and stiff part of the wire is holding me up.

Thanks in advance.

Steve

Aug 19, 2015 | 06:11 AM

maineultraclassic

Thread Starter

Elite HDF Member

Joined: Mar 2006

Posts: 4,722

Likes: 5

From: Biddeford, Maine

I was surprised I couldn't find anything in the service manual or the parts manual.......just need to see the routing and spring hook up.

Aug 19, 2015 | 06:44 AM

DXHD $100

Tourer

Joined: Jul 2010

Posts: 422

Likes: 12

From: Ivor VA

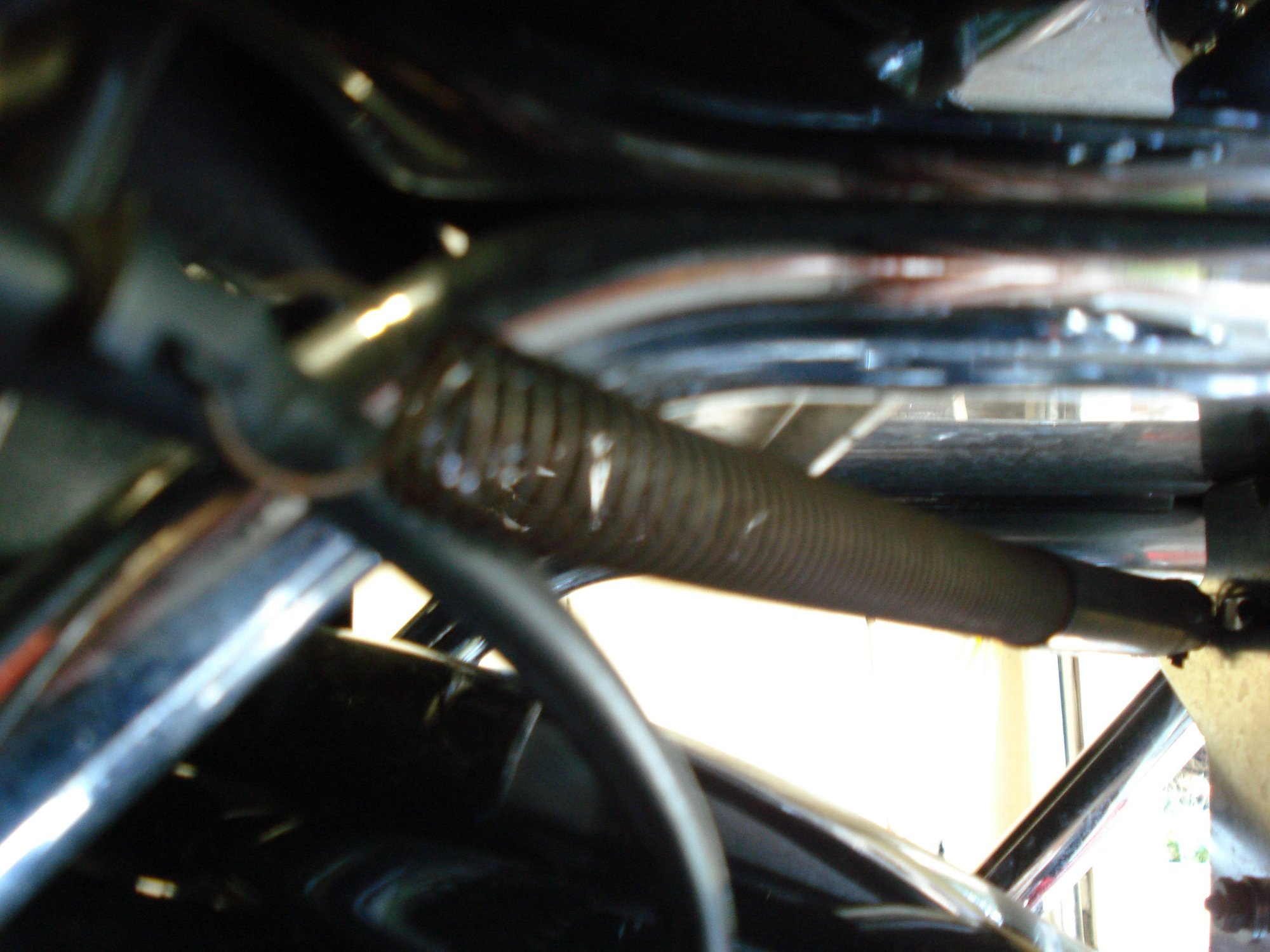

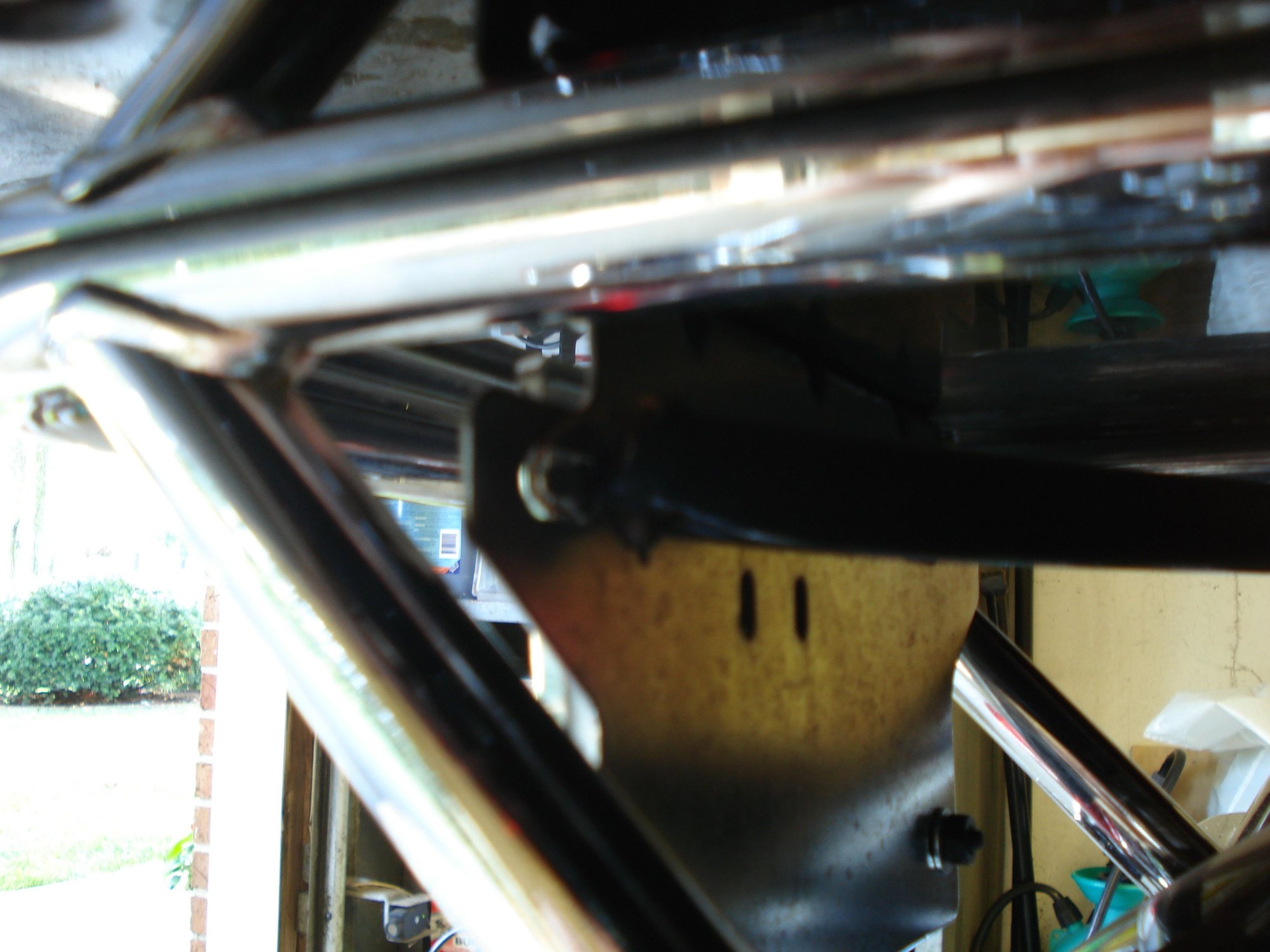

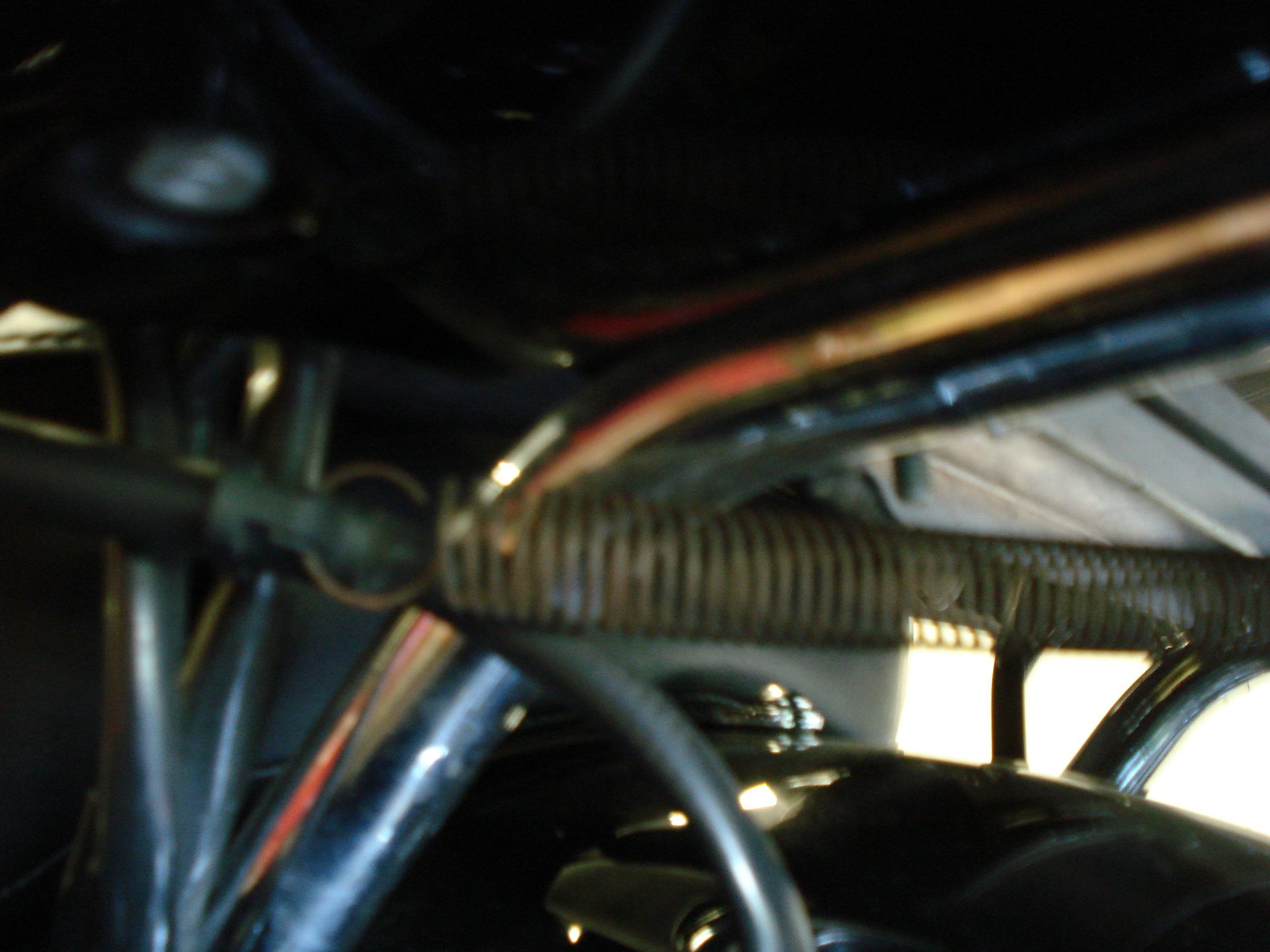

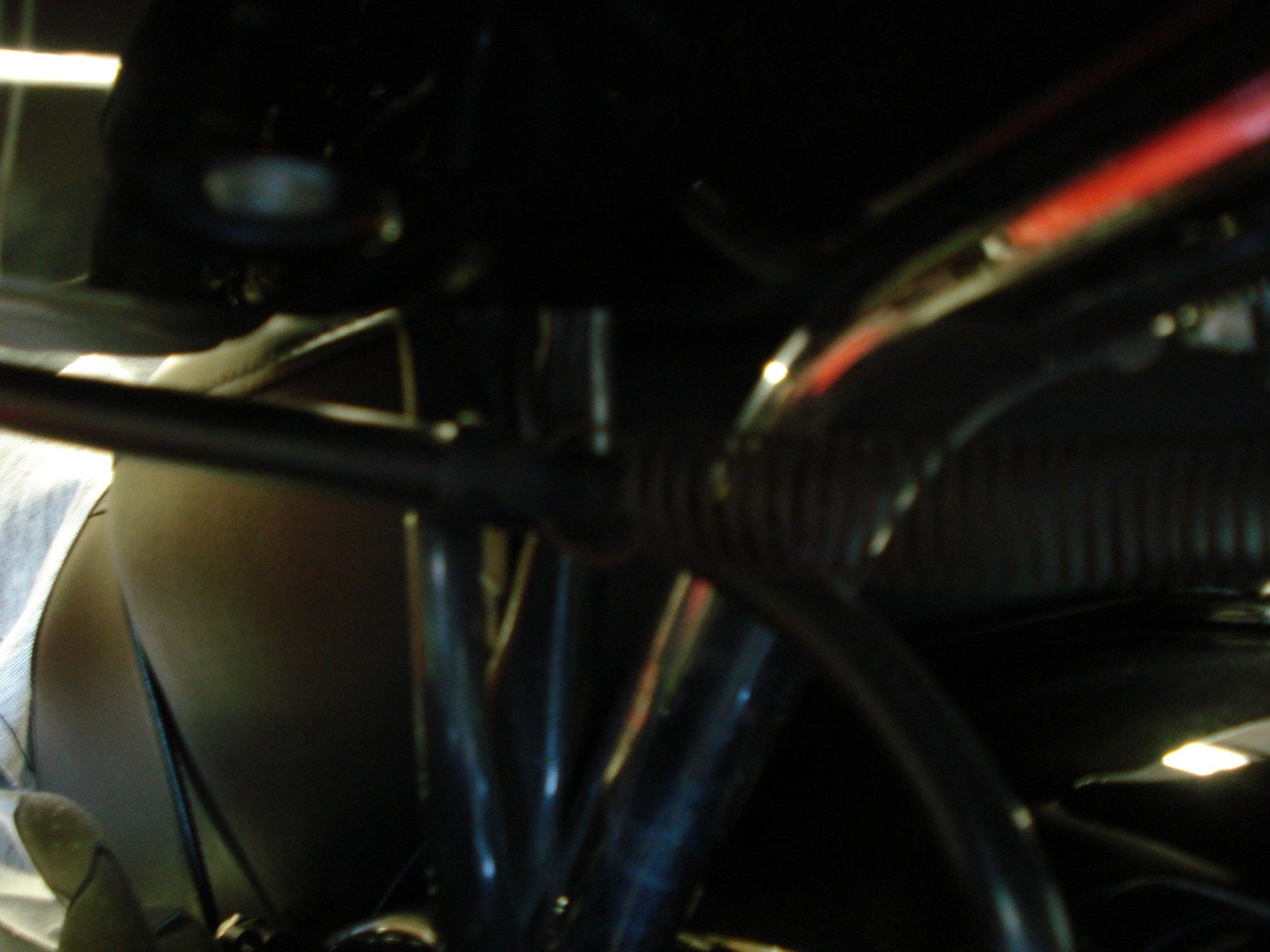

Can not find a picture but if memory serves the harness ran just under the seat along with the tour pak harness. The rigid covering holds the harness in a loop, the spring goes from the eyelet on hard cover over to the opposite side in a small hole in licence plate backing plate.

Aug 19, 2015 | 08:44 AM

14GuineaPig

Stellar HDF Member

Joined: Sep 2013

Posts: 3,490

Likes: 610

From: USA

Maybe this will help. I tried to find a picture but no luck. I remember the headset cable passing thru a plastic bracket and there was a spring that retracted the cable into the bracket. IIRC the spring connected from the cable back to the license plate bracket.

http://www.harley-davidson.com/app-c...ts/-J03652.PDF

http://www.ebay.com.au/itm/NOS-Harle...3D151612307013

Last edited by 14GuineaPig; Aug 19, 2015 at 08:51 AM.

Aug 19, 2015 | 12:24 PM

maineultraclassic

Thread Starter

Elite HDF Member

Joined: Mar 2006

Posts: 4,722

Likes: 5

From: Biddeford, Maine

I found all the parts needed, just that the wire and spring seem to be out of place. It's been about 8 years since I removed it all for a cleaner look, so I can't remember how it all "sits".
