Broken wire identification?
Extreme HDF Member
Joined: Sep 2010
Posts: 14,744
Likes: 402
From: Phoenix '53, '88, '09 Big Twins

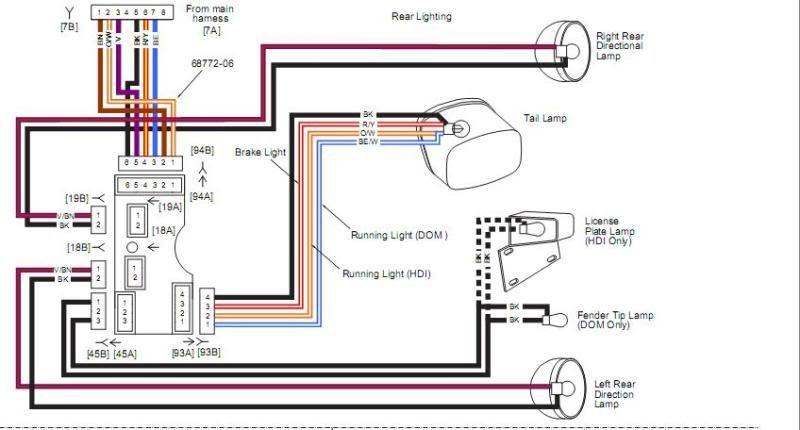

looking at the wiring diagram link for a 2015 SGS that wire is used for the P&A circuit including teh acc plug-
possible that someone cut off the plug and soldered in their own wiring for something?
Mike
possible that someone cut off the plug and soldered in their own wiring for something?
Mike
