2015 FLHTK Tour-Pak Lighting Not Working

Notices
Touring Models Road King, Road King Custom, Road King Classic, Road Glide, Street Glide, Electra Glide, Electra Glide Classic, and Electra Glide Ultra Classic bikes.
Sponsored by:
Sponsored by:

2015 FLHTK Tour-Pak Lighting Not Working


  #1
Old 03-13-2019, 06:35 PM
AydensPapa
AydensPapa is offline
New Member
Thread Starter
Join Date: Mar 2019
Location: Florida
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default 2015 FLHTK Tour-Pak Lighting Not Working

My 2015 FLHTK Ultra Limited I Just Purchased.

The lights on the tour-pak are not working.
I'm looking for what each wire in the #69200131 wire harness does.
I have a Blue/Redish Maroon wire, Blue/Purpleish, Blue/Brown ?, Blue and Black.

Black is Ground, what are the other ones. I want to test each and see if I have power coming to each one

  #2
Old 03-13-2019, 07:08 PM
Jaftica
Jaftica is offline
One Of The Regulars
Join Date: Oct 2015
Location: North Port FL
Posts: 196
Thanked 5 Times in 5 Posts
Default

Nothing working on tourpak? No running lights, turn signals? You have either blown a fuse,. (highly unlikely) or your tourpak connector came loose under the seat.

  #3
Old 03-13-2019, 11:43 PM
AydensPapa
AydensPapa is offline
New Member
Thread Starter
Join Date: Mar 2019
Location: Florida
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Jaftica View Post
Nothing working on tourpak? No running lights, turn signals? You have either blown a fuse,. (highly unlikely) or your tourpak connector came loose under the seat.
There are led's on the back of the saddlebags and they work properly.

The lower running lights that run along the side of the tourpak work.
The lights that run along the back of the tourpak are not working.

What does the connection under the seat look like.?, I haven't had the seat off.
If it may be a fuse, where is it located?


Last edited by AydensPapa; 03-14-2019 at 01:50 AM.
  #4
Old 03-14-2019, 04:06 AM
Jaftica
Jaftica is offline
One Of The Regulars
Join Date: Oct 2015
Location: North Port FL
Posts: 196
Thanked 5 Times in 5 Posts
Default

The fuses are under the left side cover. Can't remember what the plug for tourpak looks like but when you take seat off it will be easy to see the wires leading back to tourpak. The connector will pretty much be in the open. Personally I would take the carpeted liner inside the tourpak out first and look around in there for a unplugged connector. You have to take the 2 nuts off inside the owners manual pouch to get that carpeted liner out. That's it. nothing else needs to be removed.

  #5
Old 03-14-2019, 08:24 AM
Vernal's Avatar
Vernal
Vernal is offline
Club Member
Join Date: Apr 2013
Location: Utah
Posts: 3,865
Thanked 444 Times in 357 Posts
Default

Hey Papa welcome to the Forum from Utah!

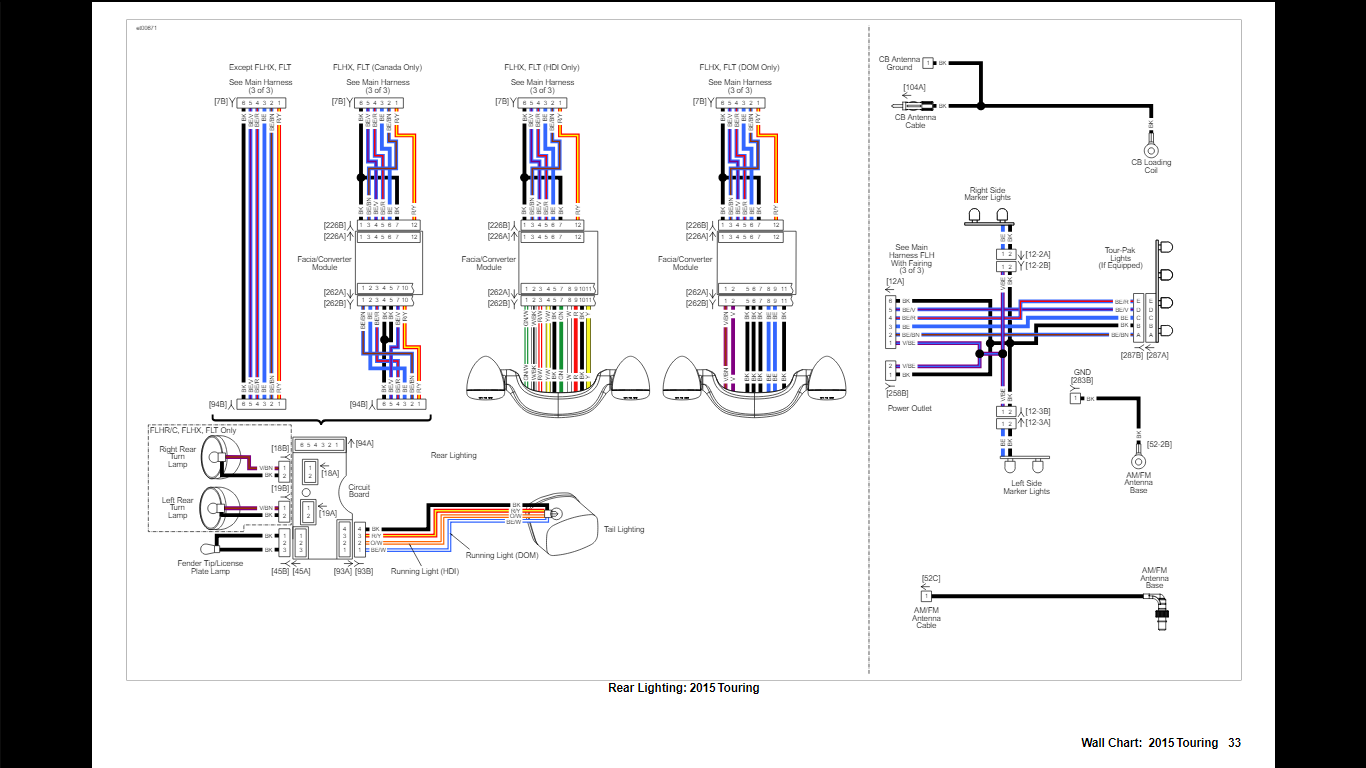

Look at the rear lighting schematic, I wonder if connector 287 is unplugged? I bet it's behind the liner.




Last edited by Vernal; 03-14-2019 at 08:27 AM.
  #6
Old 03-14-2019, 08:45 AM
AydensPapa
AydensPapa is offline
New Member
Thread Starter
Join Date: Mar 2019
Location: Florida
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Vernal View Post
Hey Papa welcome to the Forum from Utah!
Look at the rear lighting schematic, I wonder if connector 287 is unplugged? I bet it's behind the liner.

The plug that is connected to the tour-pak led light bar has voltage in each of the wires..08, .08, .04 and 12+.
light bar not working when plugged in

  #7
Old 03-14-2019, 08:46 AM
AydensPapa
AydensPapa is offline
New Member
Thread Starter
Join Date: Mar 2019
Location: Florida
Posts: 25
Thanks: 0
Thanked 0 Times in 0 Posts
Default

Originally Posted by Jaftica View Post
The fuses are under the left side cover. Can't remember what the plug for tourpak looks like but when you take seat off it will be easy to see the wires leading back to tourpak. The connector will pretty much be in the open. Personally I would take the carpeted liner inside the tourpak out first and look around in there for a unplugged connector. You have to take the 2 nuts off inside the owners manual pouch to get that carpeted liner out. That's it. nothing else needs to be removed.


The plug that is connected to the tour-pak led light bar has voltage in each of the wires..08, .08, .04 and 12+.

light bar not working when plugged in


  #8
Old 03-14-2019, 08:53 AM
Jaftica
Jaftica is offline
One Of The Regulars
Join Date: Oct 2015
Location: North Port FL
Posts: 196
Thanked 5 Times in 5 Posts
Default

Hmm, Never ran into that problem. Sounds light the problem lies in the lightbar itself.

  #9
Old 03-14-2019, 08:53 AM
Jaftica
Jaftica is offline
One Of The Regulars
Join Date: Oct 2015
Location: North Port FL
Posts: 196
Thanked 5 Times in 5 Posts
Default

*Like

  #10
Old 03-14-2019, 10:34 AM
Vernal's Avatar
Vernal
Vernal is offline
Club Member
Join Date: Apr 2013
Location: Utah
Posts: 3,865
Thanked 444 Times in 357 Posts
Default

Originally Posted by AydensPapa View Post
The plug that is connected to the tour-pak led light bar has voltage in each of the wires..08, .08, .04 and 12+.
light bar not working when plugged in
Not sure where your measuring voltage at.

Look at the rear lighting schematic and separate 287B from the Tour-PAK. wires are marked A-E.

Check B to ground for continuity.

All voltage measurements should be taken on 287B with the ignition on.

A- Put meter positive on A the BE/BN and Negative will stay in B the black which is grd. Turn on right turn signal and see if you get a pulsating 12V .

C - BE is the running lights and should show 12V

D - BE/V is rear left turn so check for pulsating 12V when left turn is on

E = BE/R is the brake light, 12v when you hit the brakes

The Following 2 Users Say Thank You to Vernal For This Useful Post:
GalvTexGuy (03-14-2019), hattitude (03-15-2019)
