Default Bike measurement

Hi all,
I just got an enclosed trailer to haul my trike and when I dropped my trike off at the shop I did not measure the distance from the front wheel back to the clutch inspection
plate. The shop is 47 miles from my house and closed Mondays. Can some one with a 2003 or similar Ultra classic do the measurement on your bike so I can install the
front wheel chock in my trailer?
Thanks.
Jeff
aka FT777

Reply
Old Jul 1, 2019 | 09:35 AM
  #2
Spider0408's Avatar
Spider0408
Banned
Joined: Jan 2013
Posts: 501
Likes: 252
From: Kentucky
Default

Why don't you just mount the chock as far forward as you can. You need to keep most weight forward in the trailer to keep it from weaving and whipping around while in motion.

Reply
Old Jul 1, 2019 | 11:20 AM
  #3
Cpl Ed's Avatar
Cpl Ed
Tourer
Joined: Mar 2015
Posts: 288
Likes: 25
From: Tumwater, Wa
Default

Demonstation:

Reply
Old Jul 1, 2019 | 12:28 PM
  #4
caulk04's Avatar
caulk04
Road Master
5 Year Member
Liked
Loved
Community Favorite
Joined: Jul 2016
Posts: 870
Likes: 245
From: Transfer, PA
Default

Clutch inspection plate? Never heard of her...lol. I gather you mean the derby cover? Just razzin'.

Either way, I'm with the other guys in thinking you'll want the chock all the way up (some assumptions taken). Then again, why a chock at all? It's a trike, it ain't falling over. Just find where you like it in the trailer and mark the floor so it gets parked in the right spot.

Reply
Old Jul 1, 2019 | 11:49 PM
  #5
FreightTrain777's Avatar
FreightTrain777
Thread Starter
|
6th Gear
5 Year Member
Liked
Joined: Jul 2016
Posts: 13
Likes: 0
From: North Carolina
Default

Got the measurements, 54" from front tire to middle of Derby Cover(Clutch Insp Plate), 57" to rear of DC, and 60" end of Primary cover.

Reply
Old Jul 2, 2019 | 01:48 PM
  #6
skinman13's Avatar
skinman13
Outstanding HDF Member
Veteran: Navy
Joined: Dec 2012
Posts: 2,557
Likes: 235
From: Texas
Default

From my 2001 touring manual






Last edited by skinman13; Jul 2, 2019 at 01:52 PM.
Reply
Old Jul 2, 2019 | 10:22 PM
  #7
FreightTrain777's Avatar
FreightTrain777
Thread Starter
|
6th Gear
5 Year Member
Liked
Joined: Jul 2016
Posts: 13
Likes: 0
From: North Carolina
Default

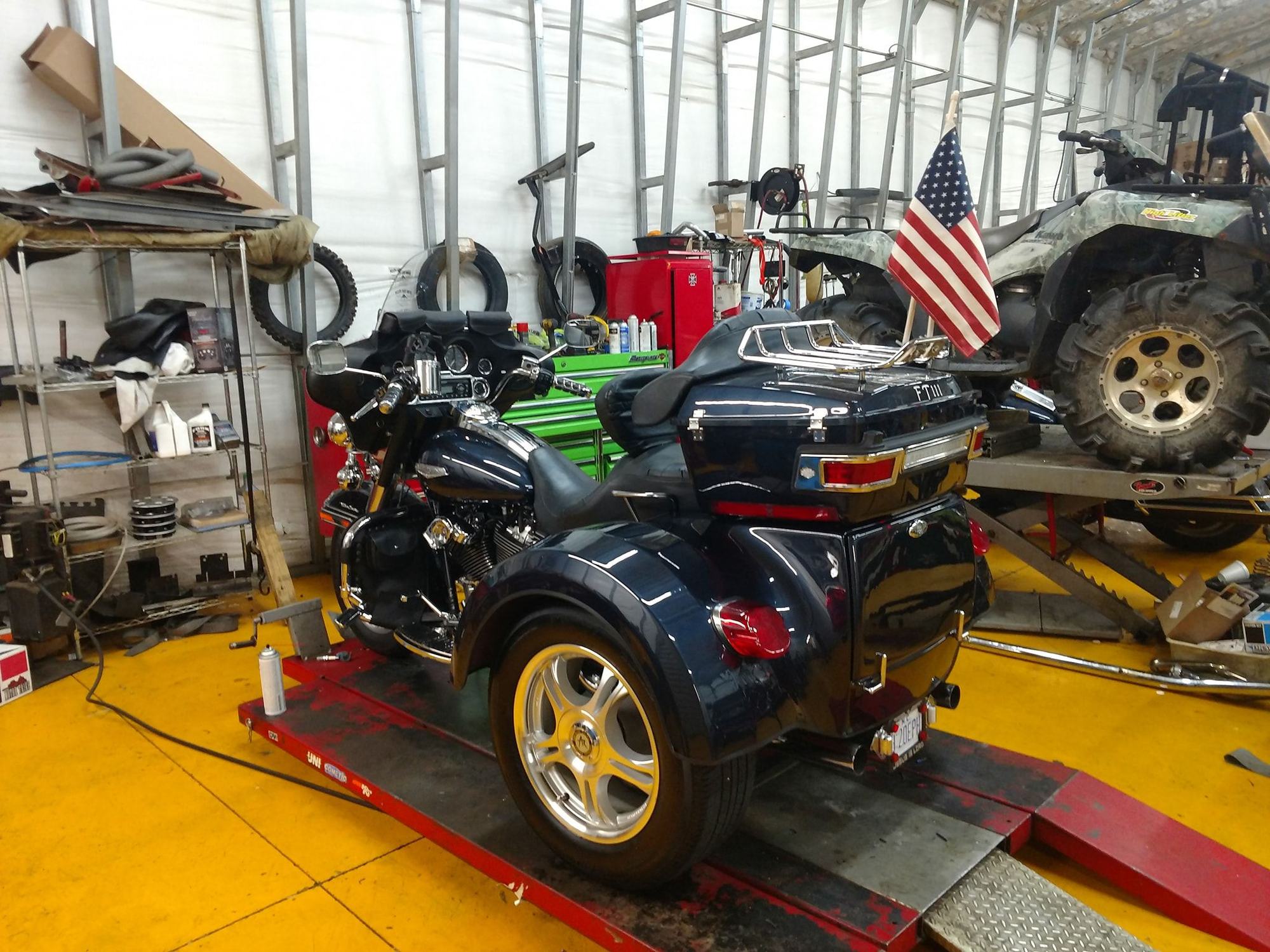

Top one is the original color, and the other two is the new paint job with GM Blue Ray Metallic to match my Silverado. Needed to be done because a Medium size buck ran into me cracking the tub and right fender. Now truck, trike, and trailer near match paint color.

Reply
