Lower fairing caps

Thread Tools

Search this Thread

Old Feb 22, 2020 | 10:51 AM
Share
  #1
rdmike's Avatar
rdmike
Thread Starter
|
Intermediate
Joined: Nov 2006
Posts: 26
Likes: 5
From: Fort Myers, Florida
Default Lower fairing caps
I am trying to figure out how to remove the lower fairing caps so I can add some lighting to my engine guard. I do have a service manual on order but taking longer than expected. Year is 2020 tri glide (same as ultra) much thanks in advance.

Reply
0
Old Feb 22, 2020 | 11:00 AM
Share
  #2
user 47363638's Avatar
user 47363638
Banned
Joined: Dec 2017
Posts: 4,506
Likes: 2,361
Default
Originally Posted by rdmike
I am trying to figure out how to remove the lower fairing caps so I can add some lighting to my engine guard. I do have a service manual on order but taking longer than expected. Year is 2020 tri glide (same as ultra) much thanks in advance.
Try YouTube

Reply
0
Old Feb 22, 2020 | 07:00 PM
Share
  #3
cncmike's Avatar
cncmike
Road Master
15 Year Member
Photogenic
Photoriffic
Liked
Joined: Dec 2010
Posts: 1,049
Likes: 264
From: Fresno Ca
Default
You can also look up every part on your bike here. It only goes up to 2019 but I'm sure most of it will be the same. This shows pictures of all of the parts and assemblies and the part numbers. Even though it doesn't tell you how to take it apart it does show you were all of the fasteners are and you should be able to figure it out from there.

Reply
0
Old Feb 22, 2020 | 08:24 PM
Share
  #4
EGS's Avatar
EGS
Cruiser
Joined: Jan 2020
Posts: 230
Likes: 162
From: Northwest
Default

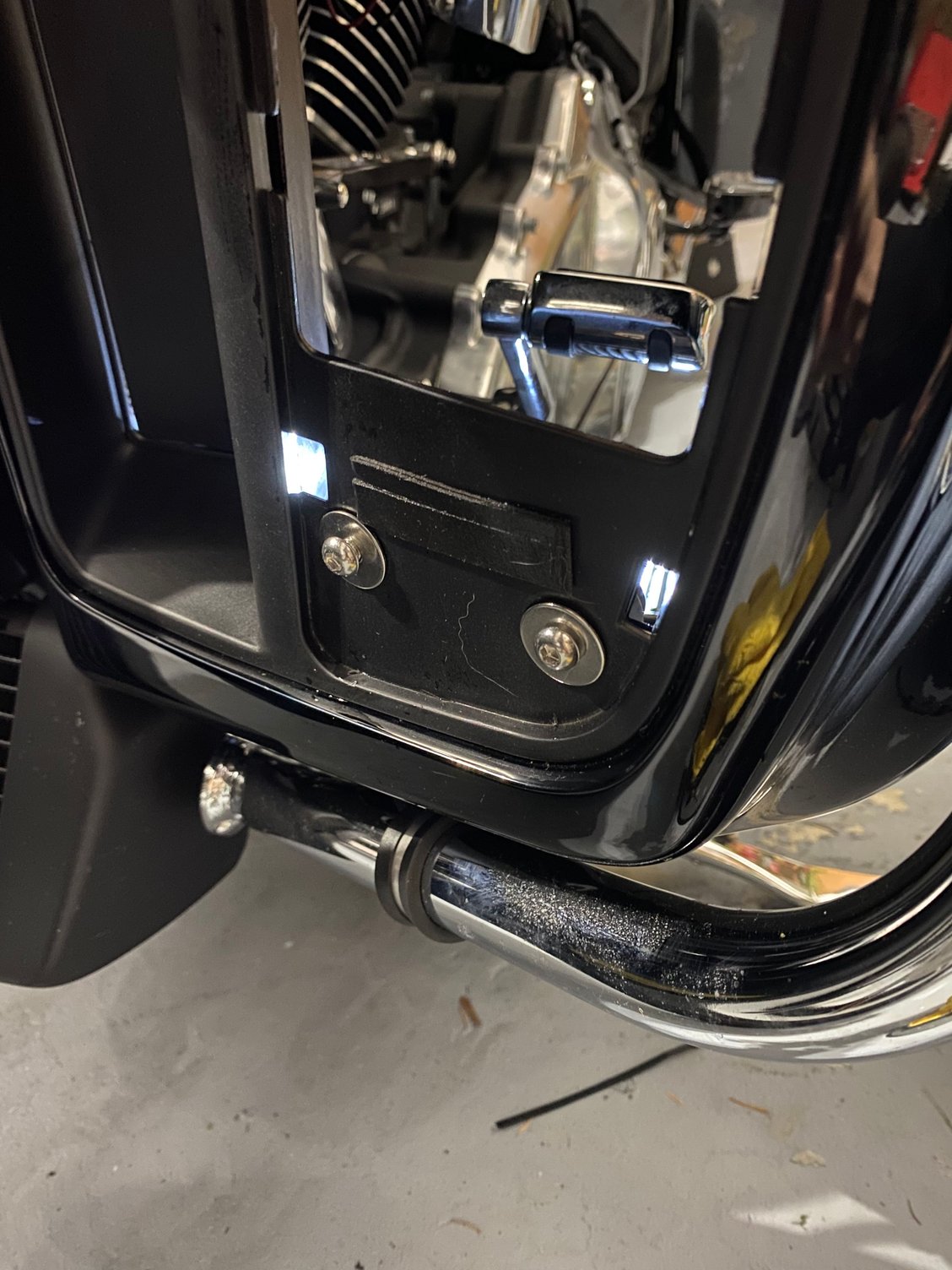

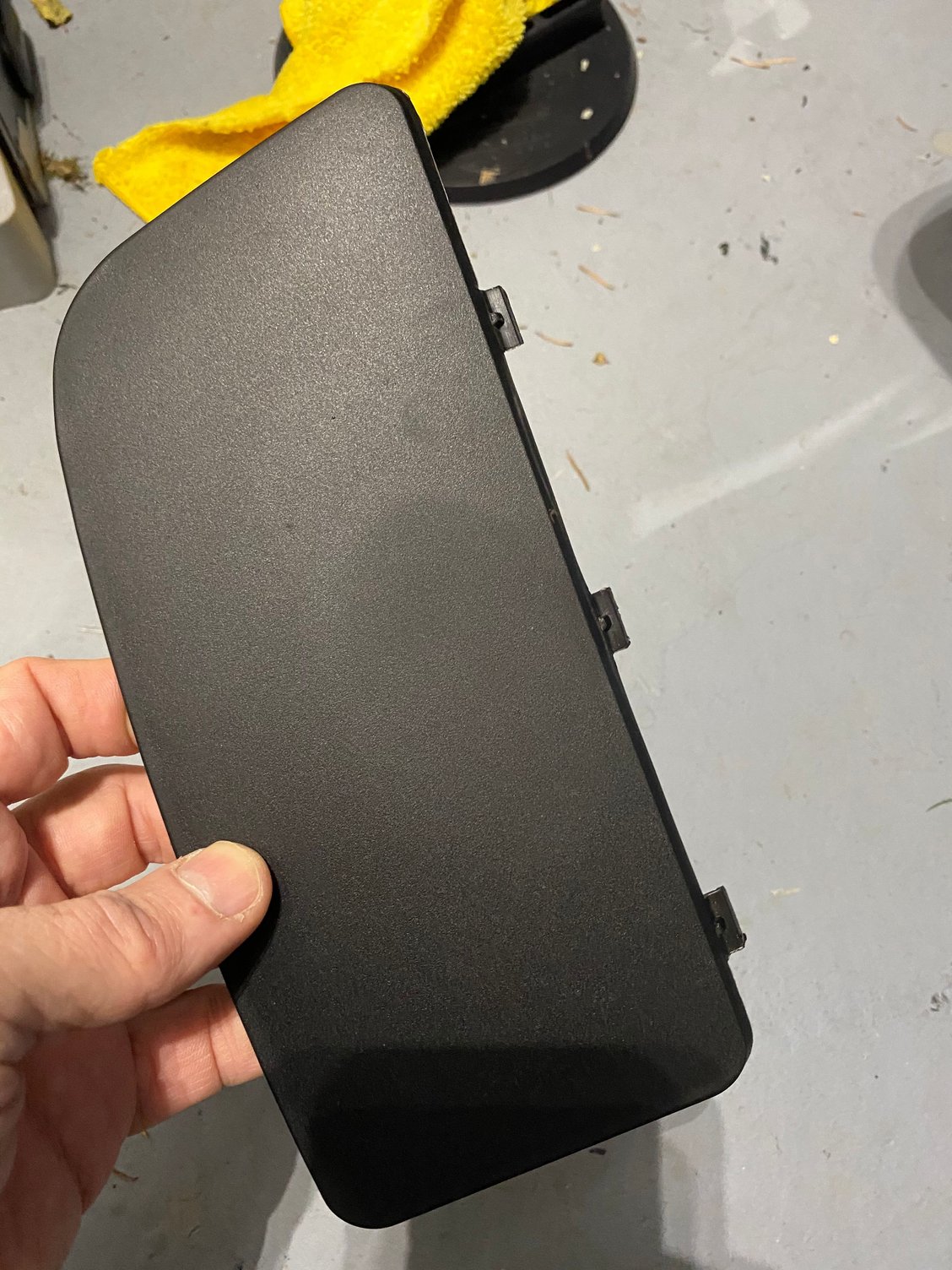

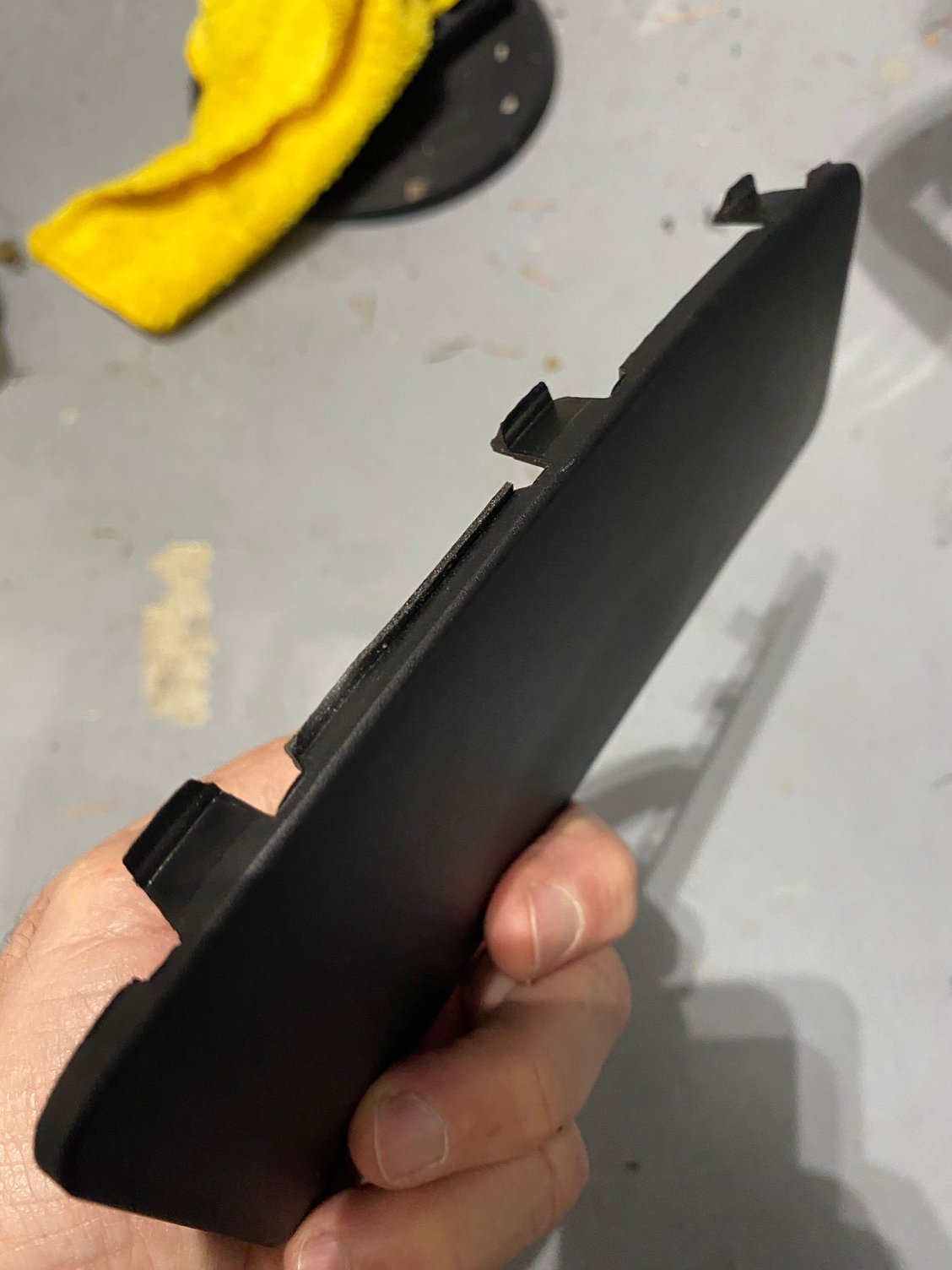

Do you mean the front panels. They just pop off. You can use a screw driver. I took the inside panel off and then just pushed the tabs to remove them.






Reply
0
Old Feb 22, 2020 | 08:29 PM
Share
  #5
EGS's Avatar
EGS
Cruiser
Joined: Jan 2020
Posts: 230
Likes: 162
From: Northwest
Default
The upper caps can only be removed by removing the bolt behind (inside) the speaker or cubby compartment. You have to be careful the bolt doesn’t drop into the inside of the fairing or you will have to take the whole fairing off to get it back out.

Last edited by EGS; Feb 22, 2020 at 08:41 PM.
Reply
0
Old Feb 22, 2020 | 08:44 PM
Share
  #6
coop creek's Avatar
coop creek
Road Captain
15 Year Member
Photogenic
Liked
Loved
Joined: Sep 2007
Posts: 625
Likes: 125
From: Reading, PA
Default
on air cooled, you need to remove a nut that attaches to a threaded stud inside the cubby as noted above. you need a ratchet wrench with a 6 inch (15 cm) extension to reach it. do not overtighten when assembling.

Reply
0
Old Feb 22, 2020 | 11:12 PM
Share
  #7
rdmike's Avatar
rdmike
Thread Starter
|
Intermediate
Joined: Nov 2006
Posts: 26
Likes: 5
From: Fort Myers, Florida
Default
Originally Posted by EGS
The upper caps can only be removed by removing the bolt behind (inside) the speaker or cubby compartment. You have to be careful the bolt doesn’t drop into the inside of the fairing or you will have to take the whole fairing off to get it back out.
on the 2020, there is no bolt. It is like a washer??

Reply
0

Trending Topics

Old Feb 23, 2020 | 12:50 AM
Share
  #8
EGS's Avatar
EGS
Cruiser
Joined: Jan 2020
Posts: 230
Likes: 162
From: Northwest
Default
Originally Posted by rdmike
on the 2020, there is no bolt. It is like a washer??
you should see a hole in the back of the compartment and the bolt is about an inch deep inside the hole.

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Feb 23, 2020 | 07:56 PM
Share
  #9
skratch's Avatar
skratch
Seasoned HDF Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2007
Posts: 20,616
Likes: 4,440
From: anacoco, la
Default
look at items 5 and 6 here: item 6 fits into a capture point on the cap, and the nut (item 5) comes in from the glovebox area.




Reply
0
Old Feb 23, 2020 | 08:16 PM
Share
  #10
rdmike's Avatar
rdmike
Thread Starter
|
Intermediate
Joined: Nov 2006
Posts: 26
Likes: 5
From: Fort Myers, Florida
Default
Originally Posted by skratch
look at items 5 and 6 here: item 6 fits into a capture point on the cap, and the nut (item 5) comes in from the glovebox area.



what year is this from? Does not look like mine at all. I see a washer, no bolt and nut. I will look again in the AM.

Reply
0
