Adding accessory switches to the right side ?
Stellar HDF Member
Joined: Jan 2017
Posts: 2,685
Likes: 2,087
From: Massachusetts
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
I don't know were you find these wiring diagrams. I'm looking to see if Base Dash Panel Switch #69200173 from Auxiliary Power Switch Kit #71400129 for a 2017 Ultra Limited will fit my 2015 Ultra Limited. I need to know if the plug of #69200173 will fit and work on my [105R] connector. I need to compare 2015 [105R] (above) to 2017 [105R] and Wiring Diagrams OE Radio: 2015 Touring (above) to 2017 Touring.

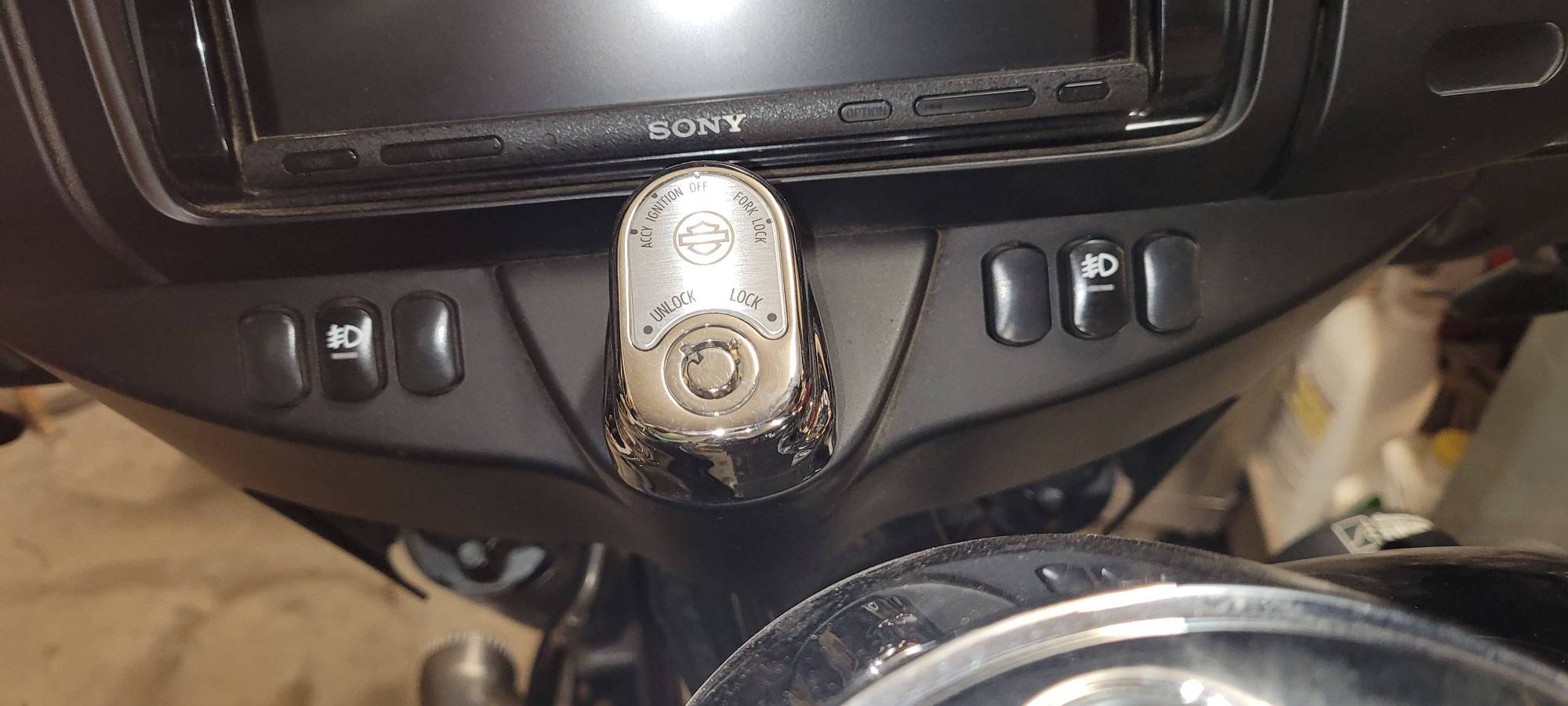

This is what I did. You can carefully remove the button front to flip the logo so the correct side is up.
Also, you may find parts of this video helpful (I didn't use the switch kit but his video showed me what the buttons powered):
Last edited by UrbanRunner; Jul 28, 2022 at 10:05 PM.
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
This is what I did. You can carefully remove the button front to flip the logo so the correct side is up.
Also, you may find parts of this video helpful (I didn't use the switch kit but his video showed me what the buttons powered):
https://youtu.be/WkzgY0IhRl8
You have to be very careful doing it. If that is outside one's skill set (like maybe that mechanic) that would be good advice.
Road Warrior
Joined: Jun 2014
Posts: 1,934
Likes: 722
From: Ontario, Canada
If you're still hesitant to try that, I'd be tempted to order 71400129 ($145.95) for the right side even though it says 2017+. And if for some reason it doesn't work, and depending how bad you want this, my next move would be to get 71400106 ($82.95) and try it with the wire harness from that kit. Yes, you'll be about $230 into it at this point, but who of us hasn't spent that kind of money on much lesser things.
For some reason, you can order the various parts separately (including the wire harness) from 71400129...but can't order just the wire harness from 71400106. As mentioned earlier, the base dash panel switch #4 (69200173) is the same for both. Here's the parts breakdown for 71400129...
