Adding accessory switches to the right side ?
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
Adding accessory switches to the right side ?
2015 Ultra Limited. How do I add accessory switches to the right side of the dashboard ?
I have 3 switches on the left side of the dashboard...fog Lights and 2 accessory on/off switches installed with the Harley Auxiliary Power Switch Kit on the left side panel (with the fuse box).
How do I add 2 matching accessory on/off switches on the right side of the dashboard ? Where does the plug on the right go to ?
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
2015 Ultra Limited

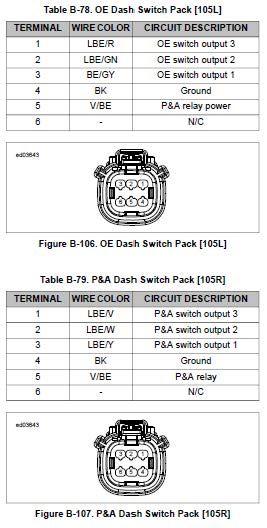

I see that the left [105L] and right [105R] connectors go to the same connector [4] in the left side panel.
Is there one harness that connects 8 pins into [4].controlling left and right side accessory switches? I have 4 pins going into [4] for the left side accessory buttons?
or would I have to add female terminal sockets to the existing connector from the Auxiliary Power Switch Kit #71400106 in order for right side accessory switches to work ?
On the right side of the console, I have 3 blanks and no Switch Dash Panel Base. What Switch Dash Panel Base, Blank Switch and 2 Accessory Switches do I need to purchase ?
I see that the left [105L] and right [105R] connectors go to the same connector [4] in the left side panel.
Is there one harness that connects 8 pins into [4].controlling left and right side accessory switches? I have 4 pins going into [4] for the left side accessory buttons?
or would I have to add female terminal sockets to the existing connector from the Auxiliary Power Switch Kit #71400106 in order for right side accessory switches to work ?
On the right side of the console, I have 3 blanks and no Switch Dash Panel Base. What Switch Dash Panel Base, Blank Switch and 2 Accessory Switches do I need to purchase ?
Seasoned HDF Member
Joined: May 2012
Posts: 32,934
Likes: 36,032
From: Carlsbad, CA
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
I don't believe that is correct for the right side switches.
#71400106 does not include the Switch Dash Panel Base (I need for the right side) and the 4 pin wire harness included controls left side switches.
#71400105 includes the Switch Dash Panel Base for the left side, I don't know if it will fit the right side and the 4 pin wire harness included controls left side switches.
#71400106 does not include the Switch Dash Panel Base (I need for the right side) and the 4 pin wire harness included controls left side switches.
#71400105 includes the Switch Dash Panel Base for the left side, I don't know if it will fit the right side and the 4 pin wire harness included controls left side switches.
Road Warrior
Joined: Jun 2014
Posts: 1,934
Likes: 722
From: Ontario, Canada
I don't believe that is correct for the right side switches.
#71400106 does not include the Switch Dash Panel Base (I need for the right side) and the 4 pin wire harness included controls left side switches.
#71400105 includes the Switch Dash Panel Base for the left side, I don't know if it will fit the right side and the 4 pin wire harness included controls left side switches.
#71400106 does not include the Switch Dash Panel Base (I need for the right side) and the 4 pin wire harness included controls left side switches.
#71400105 includes the Switch Dash Panel Base for the left side, I don't know if it will fit the right side and the 4 pin wire harness included controls left side switches.
I used 71400129 on the right side of my RG. Says if fits '17-later Electra GlideŽ, Street GlideŽ, Road GlideŽ, Ultra Limited and Tri Glide models.
Thread Starter
|
Advanced
Joined: Mar 2019
Posts: 51
Likes: 2
From: Florida
Trending Topics
Seasoned HDF Member
Joined: May 2012
Posts: 32,934
Likes: 36,032
From: Carlsbad, CA
BTW…your dealer parts guys can hook you up. Unless you are trying to find out what to order from Surdyke for a discount.
