"Correct" batwing cable routing

Thread Tools

Search this Thread

Old Aug 3, 2023 | 12:05 PM
Share
  #1
07UltraGuy's Avatar
07UltraGuy
Thread Starter
|
Banned
Joined: Aug 2021
Posts: 4,027
Likes: 6,286
From: SoCal
Default "Correct" batwing cable routing
I'm in the process of replacing the inner fairing on my '07 Ultra.
I did the bar swap a few years ago, and I believe that I followed the original cable routing at that time, but it looks fishy to me today.
Best I can tell, the clutch cable goes through the hole on the left with the grommet, and the throttle/idle cables do this on the right, but I cannot confirm if the front brake line also went through this grommet or if it runs into the fairing next to where the bars pop out.

Is there a reference image in the manual (or elsewhere) that someone can point me to?

Much appreciated.

Old Aug 3, 2023 | 09:05 PM
Share
  #2
dawg's Avatar
dawg
Seasoned HDF Member
Shutterbug
Liked
Loved
Community Favorite
Joined: Jun 2006
Posts: 28,520
Likes: 3,953
From: Vermont
Default
Brake line went through with the bars on my 08. Clutch obviously through grommet on left and throttle/idle cables go through right grommet.

Old Aug 4, 2023 | 08:03 AM
Share
  #3
skydude426's Avatar
skydude426
Club Member
15 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2010
Posts: 1,689
Likes: 457
Riders Club Member
Default
Normally the brake line follows the handlebars, not through a grommet in the fairing.

Old Aug 4, 2023 | 08:22 AM
Share
  #4
Uncle Larry's Avatar
Uncle Larry
Seasoned HDF Member
Veteran: Army
15 Year Member
Joined: Jan 2011
Posts: 157,459
Likes: 57,015
From: Michigan 15 Minutes East Of Hell
Default


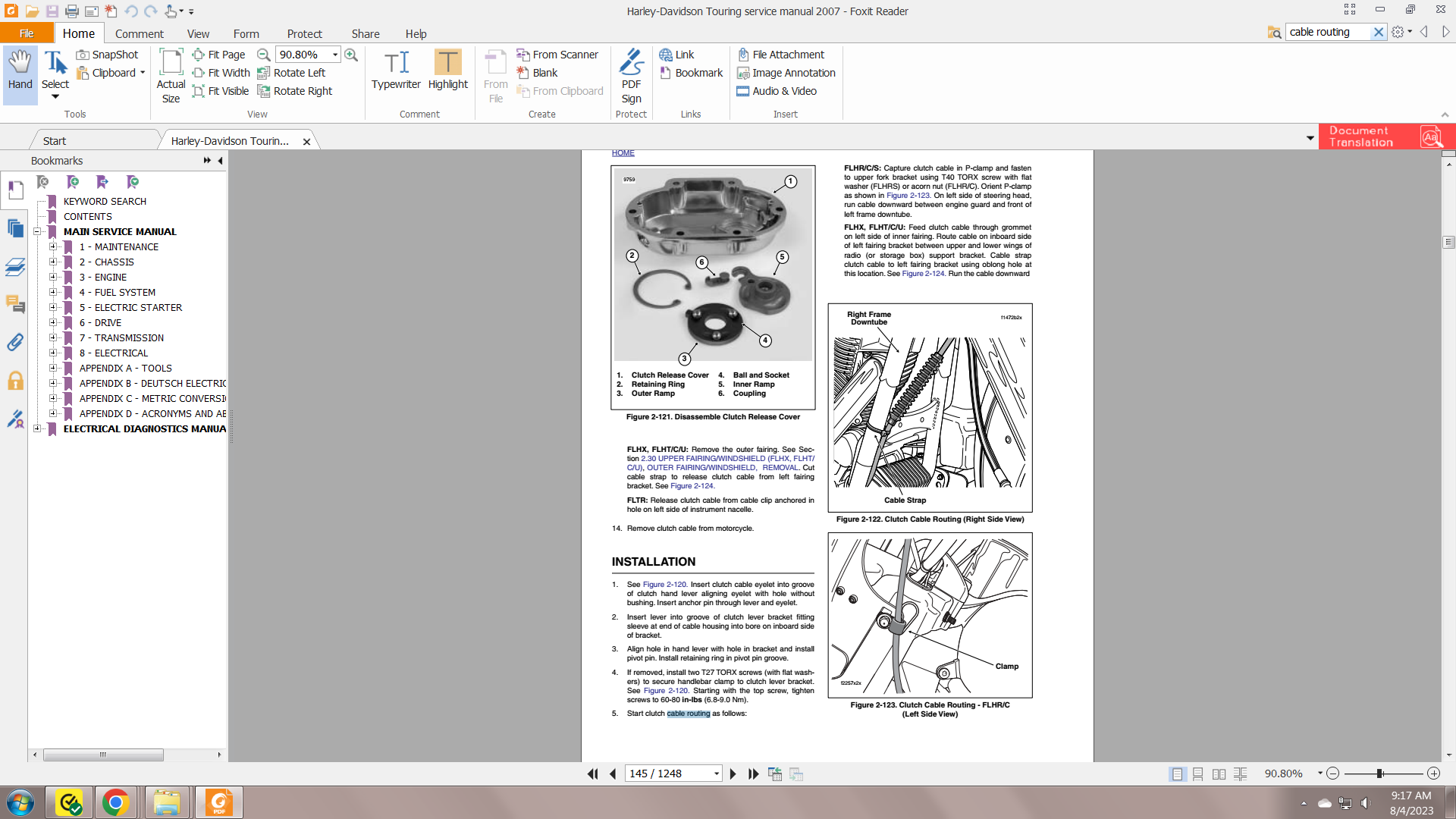

Best I could do :<(

Old Aug 4, 2023 | 09:11 AM
Share
  #5
Rounders's Avatar
Rounders
Seasoned HDF Member
Community Builder
Liked
Loved
Community Favorite
Joined: Mar 2021
Posts: 18,245
Likes: 3,679
From: backwoods
Default
The fairing has no effect on clutch cable routing on that bike, I am fairly sure. I can look later

Old Aug 4, 2023 | 09:30 AM
Share
  #6
MURPHCC1's Avatar
MURPHCC1
Club Member
Joined: Apr 2013
Posts: 5,808
Likes: 3,809
From: Cape Cod
Default
Originally Posted by Rounders
The fairing has no effect on clutch cable routing on that bike, I am fairly sure. I can look later
What does that even mean?

Old Aug 4, 2023 | 09:34 AM
Share
  #7
MURPHCC1's Avatar
MURPHCC1
Club Member
Joined: Apr 2013
Posts: 5,808
Likes: 3,809
From: Cape Cod
Default

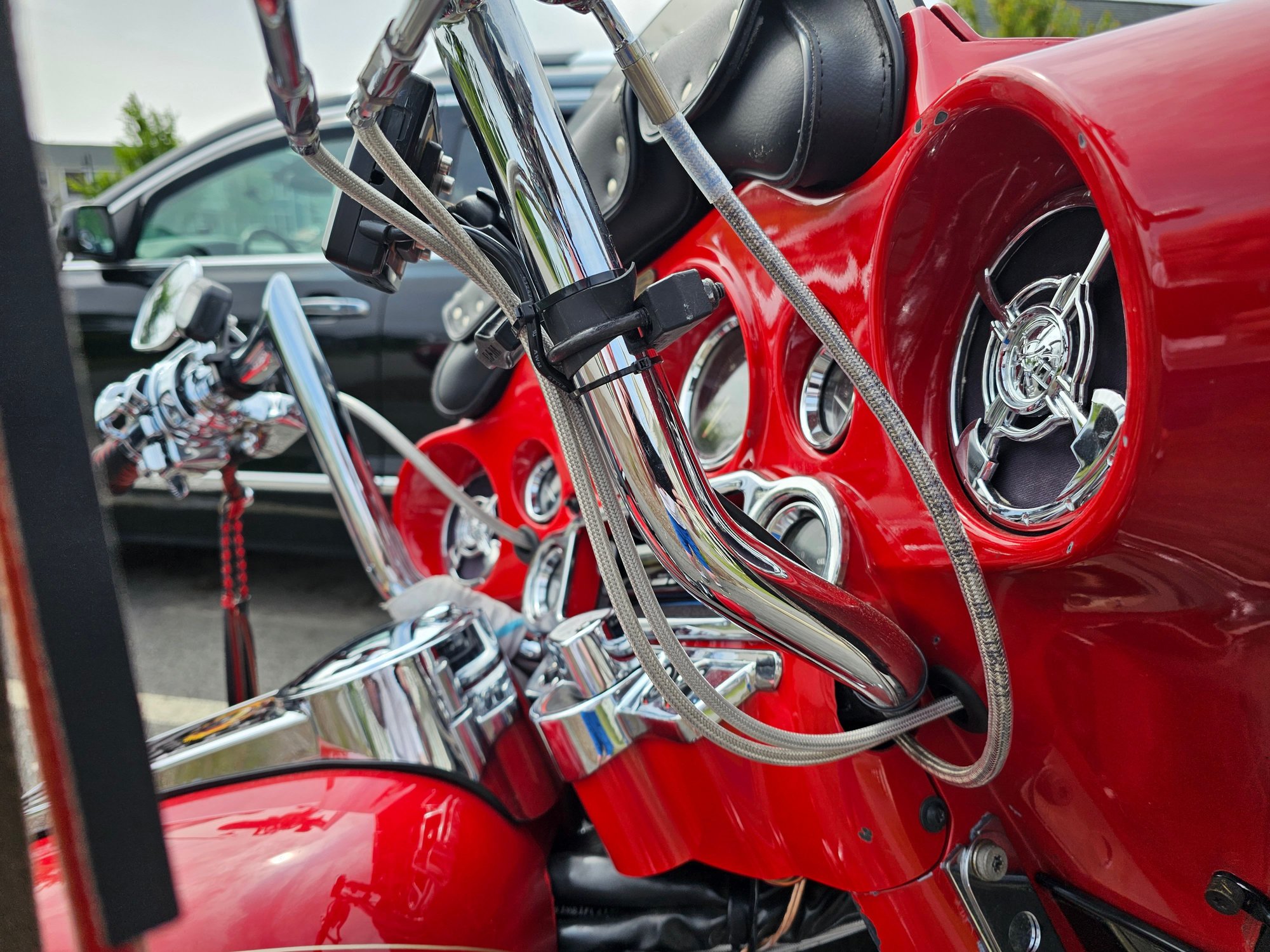

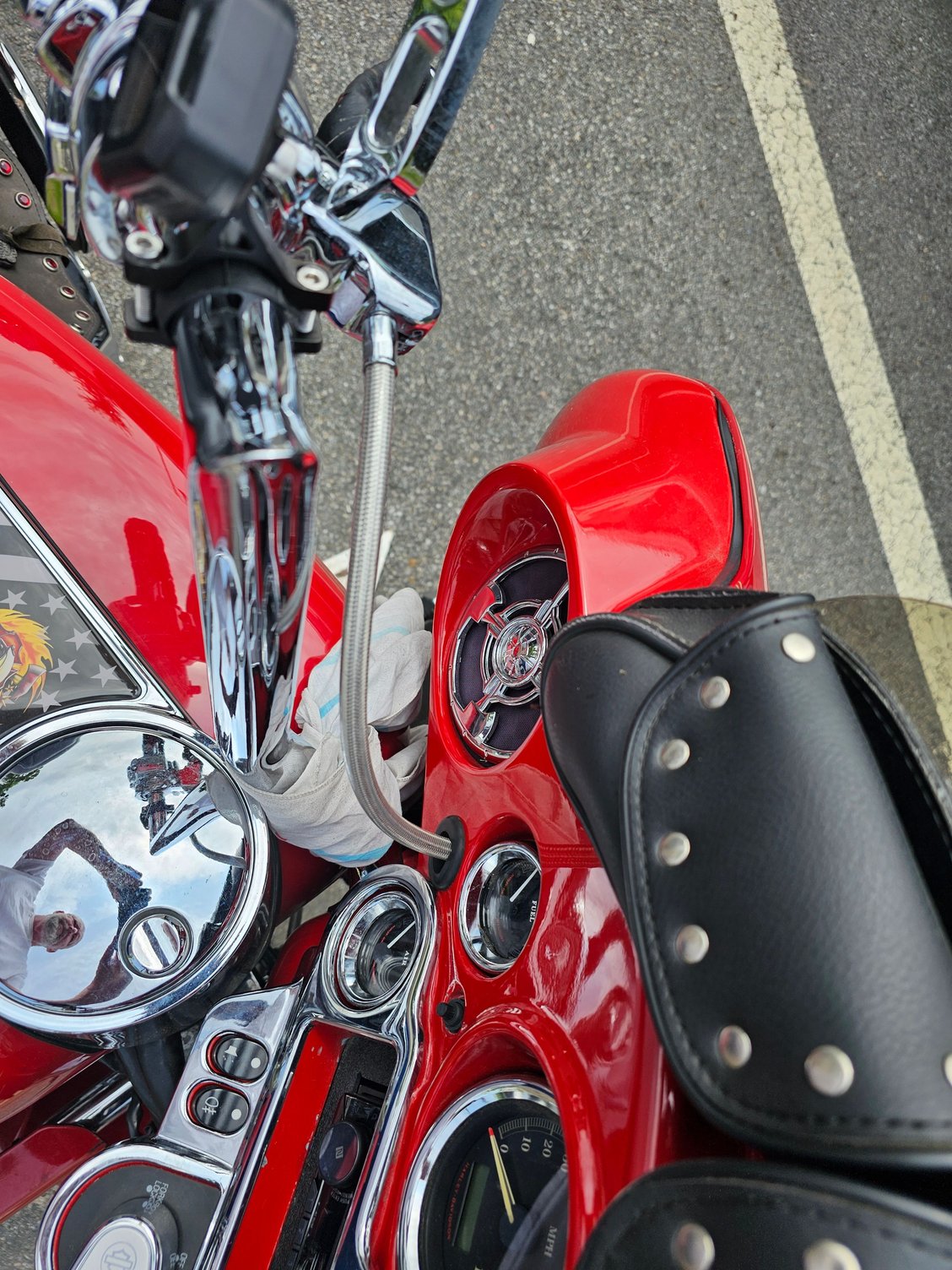

Clutch DEF goes through the fairing hole.
Brake line follows the bars.
Throttle cables go through hole in fairing
