Extended bar wiring problems!
Thread Starter
|
4th Gear
Joined: Aug 2023
Posts: 8
Likes: 1
From: ky
Extended bar wiring problems!
I’m going to look after I post BUT i just installed a a bigger handlebar and wired everything up. Testing before i button everything up and my
left turn signal dont work.
Cruise control doesn’t light up ( it wasn’t working prior but still lit up at the switch lol)
brake light on handle bar clicks at the fuse but seems to work in reverse. Foot brake doesn’t respond at all.
and horn doesnt work.
i tried googling wire diagram for the 4 deutch connectors simplified but just get the full expanded wire diagram that i have in my service manual already.
2003 road king classic*
left turn signal dont work.
Cruise control doesn’t light up ( it wasn’t working prior but still lit up at the switch lol)
brake light on handle bar clicks at the fuse but seems to work in reverse. Foot brake doesn’t respond at all.
and horn doesnt work.
i tried googling wire diagram for the 4 deutch connectors simplified but just get the full expanded wire diagram that i have in my service manual already.
2003 road king classic*
Seasoned HDF Member
Joined: Apr 2011
Posts: 6,185
Likes: 2,134
From: W. Texas
Well it's gonna require you go back through reck everything.
This kinda stuff comes up here a good bit. It's flat tuff when things go side ways.
First place to ck is in the L&R controls , that a tight place to put all back in.
How did you extend the wires or did ya
WP
This kinda stuff comes up here a good bit. It's flat tuff when things go side ways.
First place to ck is in the L&R controls , that a tight place to put all back in.
How did you extend the wires or did ya
WP
HDF Community Team
Joined: Jan 2022
Posts: 1,119
Likes: 859
From: B.C.
I’m going to look after I post BUT i just installed a a bigger handlebar and wired everything up. Testing before i button everything up and my
left turn signal dont work.
Cruise control doesn’t light up ( it wasn’t working prior but still lit up at the switch lol)
brake light on handle bar clicks at the fuse but seems to work in reverse. Foot brake doesn’t respond at all.
and horn doesnt work.
i tried googling wire diagram for the 4 deutch connectors simplified but just get the full expanded wire diagram that i have in my service manual already.
2003 road king classic*
left turn signal dont work.
Cruise control doesn’t light up ( it wasn’t working prior but still lit up at the switch lol)
brake light on handle bar clicks at the fuse but seems to work in reverse. Foot brake doesn’t respond at all.
and horn doesnt work.
i tried googling wire diagram for the 4 deutch connectors simplified but just get the full expanded wire diagram that i have in my service manual already.
2003 road king classic*

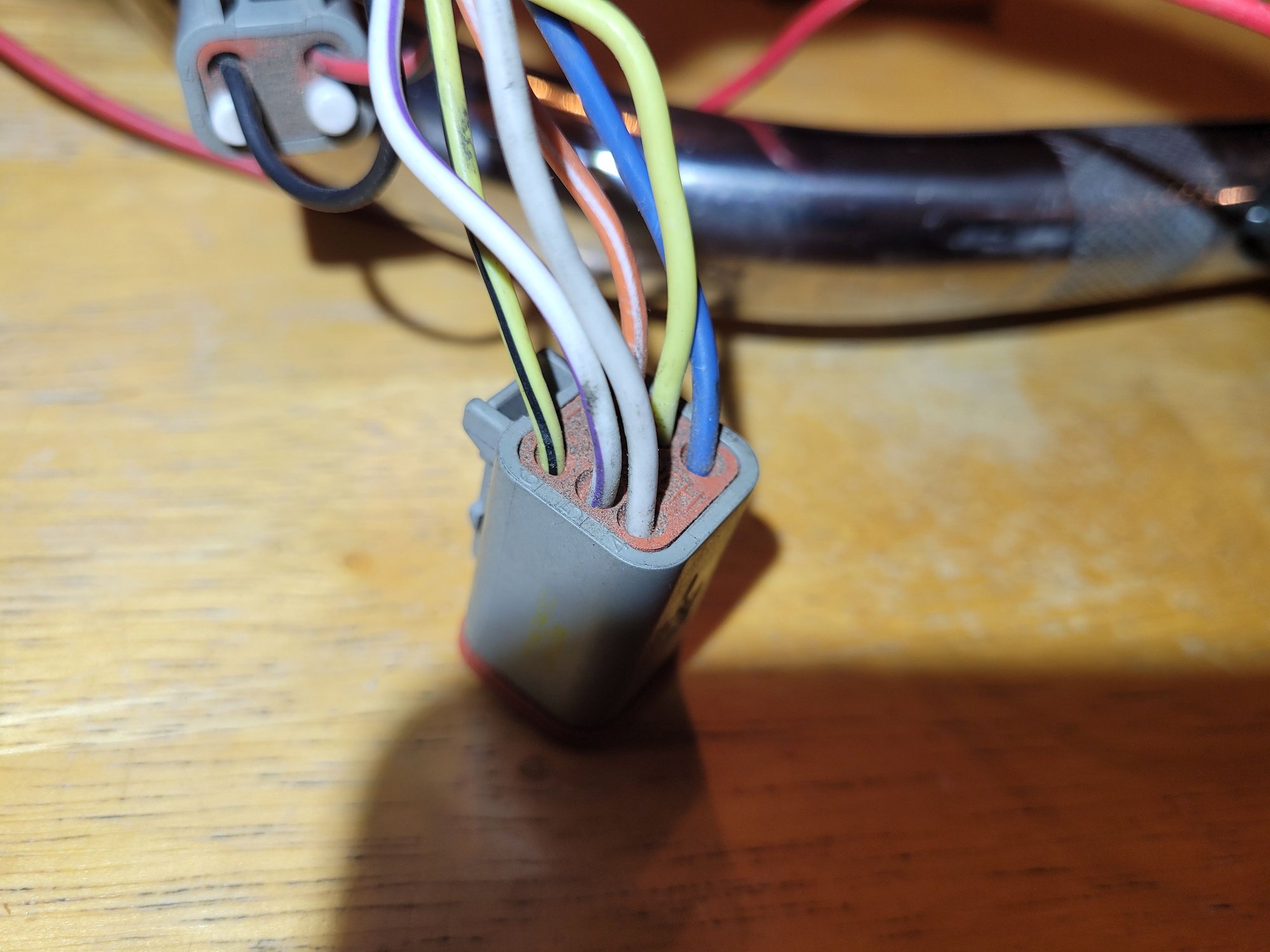

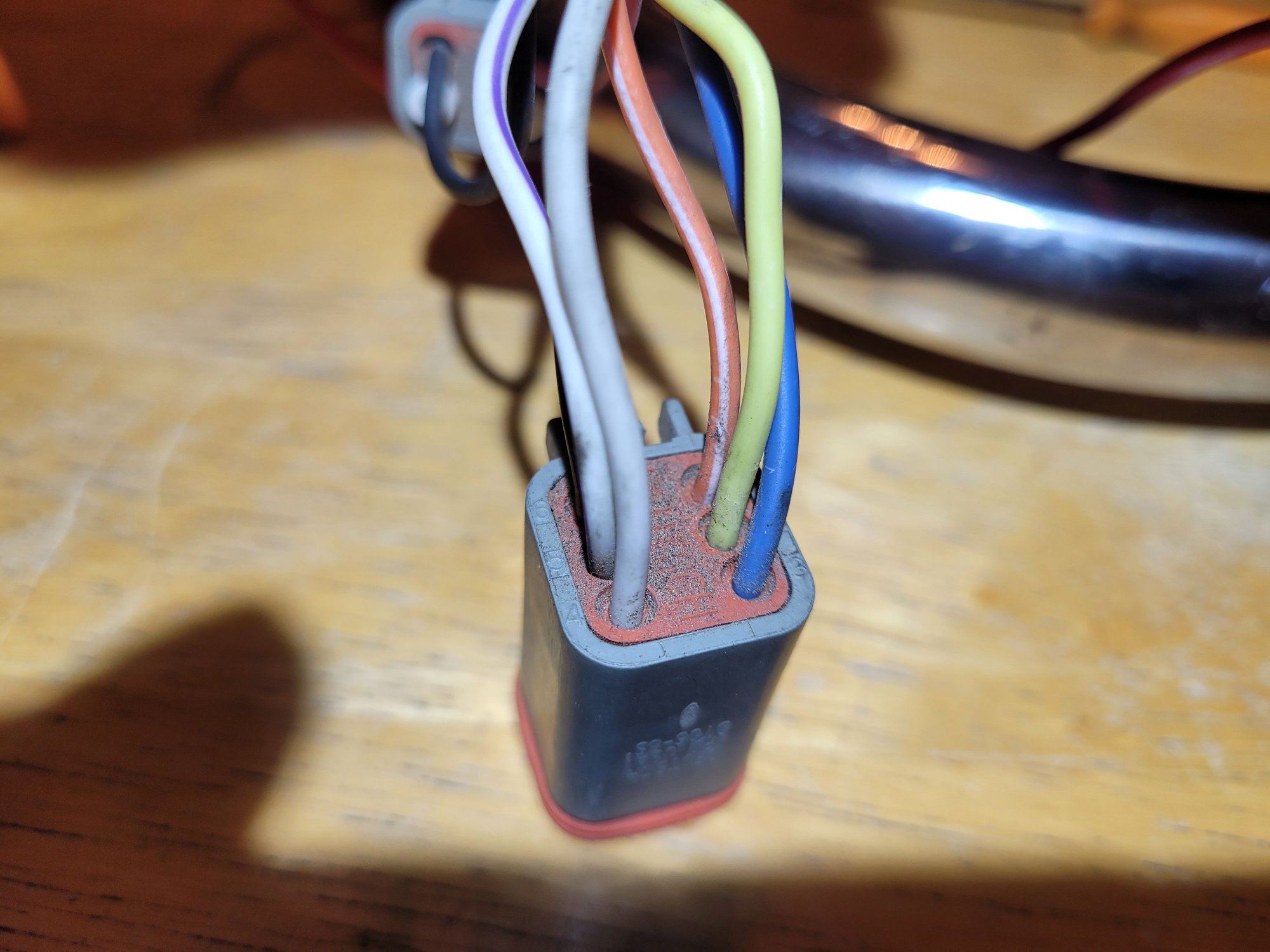

I don’t know if I can help. This is my wiring on my 2002 Road King Classic.
May or may not be the same as your 2003.
if it is, pay attention to the orientation of the wires and the colour of the connector.
One is black and the other grey. I can try and find the picture of the smaller black connector if I need to.
Let us know if this helps.
And yes this is on my kitchen table, this is how you can find out what kind of wife you have!
Banned
Joined: Aug 2012
Posts: 14,866
Likes: 31,162
From: Whiskey Falls, Texas
9 times out of 10 if there's this kind of ***** up it's in the switch housing somewhere. Not always, but that's where I would start.
Last one I did I rebuilt the molex connectors as well as new wiring. Lots of wires in a small space in the switch housing, and it's not hard to pinch a wire or more if you're not very careful.
Last one I did I rebuilt the molex connectors as well as new wiring. Lots of wires in a small space in the switch housing, and it's not hard to pinch a wire or more if you're not very careful.
Grand HDF Member
Joined: Oct 2018
Posts: 4,162
Likes: 9,673
From: Flyover Country
9 times out of 10 if there's this kind of ***** up it's in the switch housing somewhere. Not always, but that's where I would start.
Last one I did I rebuilt the molex connectors as well as new wiring. Lots of wires in a small space in the switch housing, and it's not hard to pinch a wire or more if you're not very careful.
Last one I did I rebuilt the molex connectors as well as new wiring. Lots of wires in a small space in the switch housing, and it's not hard to pinch a wire or more if you're not very careful.
Thread Starter
|
4th Gear
Joined: Aug 2023
Posts: 8
Likes: 1
From: ky
I upgraded to 14 inch apes with a burley wire kit. I reckon I’m going to start over and retrace my steps. One thing i can think of that may of happened is some of the connections slid out that may not have been heat shrunk good enough and pulled loose when pulling thru the bar.
start , ignition, right signal, work which leads me to believe its the other side has the issue minus the brake light.
The hand lever button works opposite. Pressed it glows softer and unpressed shines brighter 🤷♂️
lol here’s to a fun weekend!!
start , ignition, right signal, work which leads me to believe its the other side has the issue minus the brake light.
The hand lever button works opposite. Pressed it glows softer and unpressed shines brighter 🤷♂️
lol here’s to a fun weekend!!
Trending Topics
Club Member
Joined: Sep 2010
Posts: 15,428
Likes: 7,122
From: Beyond Fucital
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Banned
Joined: Aug 2021
Posts: 4,027
Likes: 6,286
From: SoCal
People jack up bar extensions all the time by thinking it’s an easy job.
Did you stagger the joints to prevent a giant lump of connections being in the same spot?
Did you solder them, or splice them with a connector?
Three things can guarantee a failure:
1- Crossing wires.
This makes 2 different circuits not work.
2- Broken connections.
This can impact any or all of the wires that were extended.
3- Shorting out to the inside of the bars (ground).
This often happens when the connections are not heat shrinked, or burrs and sharp points are not filed down smooth; they end up poking through the tape and/or heat shrink and can cause all kinds of issues.
You’ve probably got little choice but to pull it all out and inspect the connections.
Did you stagger the joints to prevent a giant lump of connections being in the same spot?
Did you solder them, or splice them with a connector?
Three things can guarantee a failure:
1- Crossing wires.
This makes 2 different circuits not work.
2- Broken connections.
This can impact any or all of the wires that were extended.
3- Shorting out to the inside of the bars (ground).
This often happens when the connections are not heat shrinked, or burrs and sharp points are not filed down smooth; they end up poking through the tape and/or heat shrink and can cause all kinds of issues.
You’ve probably got little choice but to pull it all out and inspect the connections.
