Stupid Question???
Hey guys, here is your laugh for the day.
When installing new cams, do the 2 dots on the cams have to line up, at the same time that the marks on the gears line up?
The reason I ask is, I put my new cams in the plate with the dots aligned. but when I went to put the gears/chain on the exterior of the plate I had to move the motor around a smidge and now the exterior gear marks line up, but the dots on the cams are out.
ALL THE DOTS NEED TO LINE UP AT THE SAME TIME, RIGHT?
I know this is beginer stuff, but I cant seem to find the answer on the forum here, or any of the videos that I've watched. Please help (and laugh if you have to)
Thanks.
When installing new cams, do the 2 dots on the cams have to line up, at the same time that the marks on the gears line up?
The reason I ask is, I put my new cams in the plate with the dots aligned. but when I went to put the gears/chain on the exterior of the plate I had to move the motor around a smidge and now the exterior gear marks line up, but the dots on the cams are out.
ALL THE DOTS NEED TO LINE UP AT THE SAME TIME, RIGHT?
I know this is beginer stuff, but I cant seem to find the answer on the forum here, or any of the videos that I've watched. Please help (and laugh if you have to)
Thanks.
Thread Starter
|
Cruiser
Joined: May 2009
Posts: 120
Likes: 1
From: Calgary, Alberta, Canada
I think you guys misunderstood the question. Thanks for the pictures. I know that the Cam dots have to line up. When you put the exterior chain and sprockets on (rear cam to crank), do those marks have to line up at the same time that the dots on the cams line up?

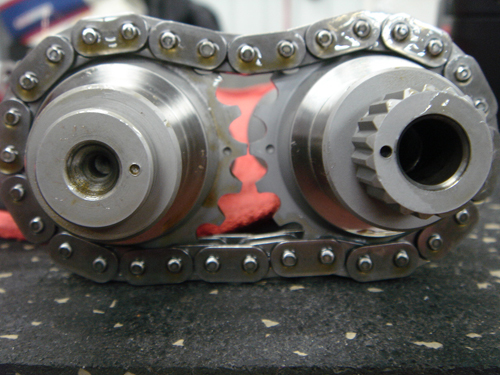

The pic shows the "internal chain". Those marks were lined up......until, I put the "rear cam - crank sprokets and chain on. When the "exterior "crank-rear cam" marks line up......the dots on the cams themselves do not.
