Anyone with a 2014+ Limited know or can take a measurement of the vertical tubing (the mounting points) diameter? Is it 1/2" or 5/8" OD?

Reply
0
Old Aug 24, 2015 | 03:29 PM
Share
  #2
14GuineaPig's Avatar
14GuineaPig
Stellar HDF Member
10 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Sep 2013
Posts: 3,490
Likes: 610
From: USA
Default
I think you are asking about the tour-pak support. It isn't round tubing on the 14 Limited anymore.


http://www.granitestateharleystore.c...K%7c%7eSUPPORT


I found this post ... it has some good photos of the support that might help you.


https://www.hdforums.com/forum/touri...3000125-a.html

Last edited by 14GuineaPig; Aug 24, 2015 at 04:17 PM.
Reply
0
Old Aug 24, 2015 | 04:06 PM
Share
  #3
p51bombay's Avatar
p51bombay
Thread Starter
|
Ultimate HDF Member
Joined: Jun 2010
Posts: 5,105
Likes: 16
From: Blaine, WA
Default

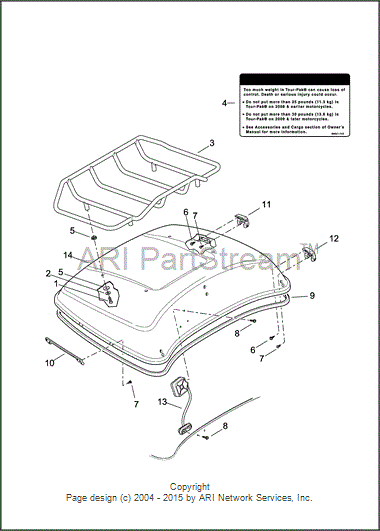

Not the mounting rack - I mean the luggage rack that sits on top of the lid - Number 3 in image. There's 4 vertical tubes where the rack bolts to the lid - 1/2" or 5/8" ?

Last edited by p51bombay; Aug 24, 2015 at 04:10 PM.
Reply
0
Old Aug 24, 2015 | 04:30 PM
Share
  #4
Seventy4blazer's Avatar
Seventy4blazer
Road Master
Joined: Apr 2015
Posts: 1,149
Likes: 137
From: Surprise, AZ
Default
three are one size, one is slightly bigger...


I will head out and get measurements in a bit...

Reply
0
Old Aug 24, 2015 | 04:46 PM
Share
  #5
14GuineaPig's Avatar
14GuineaPig
Stellar HDF Member
10 Year Member
Photogenic
Photoriffic
Shutterbug
Joined: Sep 2013
Posts: 3,490
Likes: 610
From: USA
Default
Sorry, when I saw mounting points I was thinking of the TP Support.


1/2" tubing. About 8" center to center for the screws front to back
About 12" center to center side to side

Reply
0
Old Aug 24, 2015 | 04:56 PM
Share
  #6
p51bombay's Avatar
p51bombay
Thread Starter
|
Ultimate HDF Member
Joined: Jun 2010
Posts: 5,105
Likes: 16
From: Blaine, WA
Default
Originally Posted by 14GuineaPig
Sorry, when I saw mounting points I was thinking of the TP Support.


1/2" tubing. About 8" center to center for the screws front to back
About 12" center to center side to side

thanks

Reply
0
