Auxiliary Switches

Reply Subscribe

Thread Tools

Search this Thread

Feb 27, 2019 | 06:14 PM

#11

Hammz

Grand HDF Member

Joined: Sep 2013

Posts: 3,820

Likes: 588

From: Michigan

Quote:

Originally Posted by bill_1202

So what you are saying is that the ignition switch has to be on for these switch banks to work? I was hoping to use one of the accessory switches in the kit to control LED accent lights that can be on when the bike is parked. Cannot do it?

Yes. For what you want to do, consider this switch housing & build your own harness with an inline fuse on the positive line connected to the battery B+.

Feb 28, 2019 | 08:54 AM

#12

The lark

Tourer

Joined: May 2017

Posts: 252

Likes: 27

From: Chesterfield New Jersey

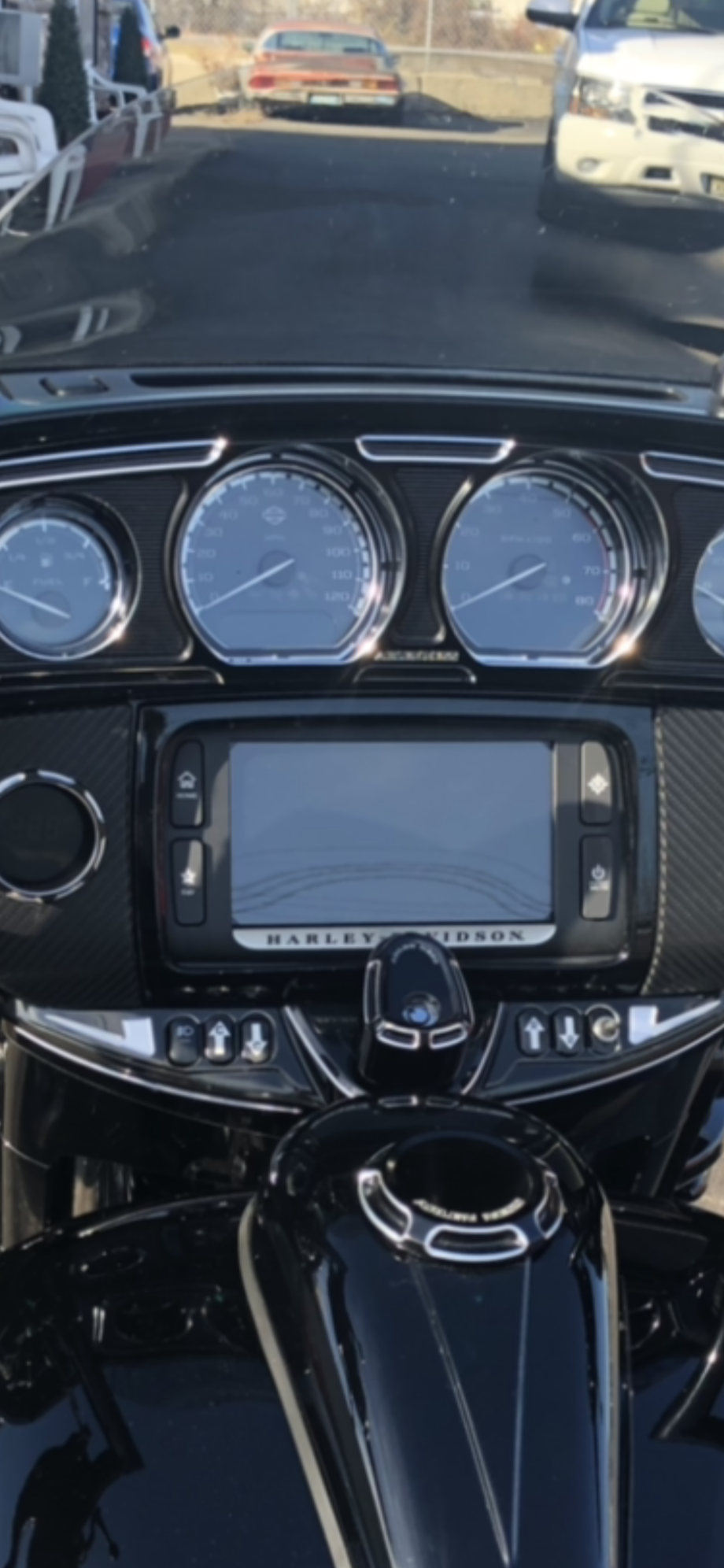

I also use them for my air ride

Jun 22, 2020 | 09:43 PM

#13

David Walls

Stage II

Joined: Jun 2020

Posts: 2

Likes: 0

From: Southern NH

Auxiliary Follow Up

I know this older but this has the closest info I am looking for. Just to clarify...I have the Daymaker Fog Loghts and mounts for my 16 Road Glide. I bought the wiring harness and the auxiliary switch assembly that has the 2 ACC and relay and what not. Is that what I need to power those Fogs with a switch? I don’t particularly need the switch with the fog light symbol on it right? Would I need to move either of those switches or what? Just working on how it’s all plug n play with getting the dogs to work on one of those switches....and how would I know which one it’ll be. I was going to plug the relay assembly to the left side unless that’s not needed for the fogs just “other” accessories. Thanks

Quote:

Originally Posted by VinceTheArchitect

Yes. The power activation is handled by the computer. You connect the Y-harness to the plug under the left side cover creating aux-1 and aux-2; install the buttons in the dash. The wiring between the two already exists.
The only tools you should need are a hex key for the dash trim, and a screwdriver to mount the switches. Everything else is plug and play. You will have to run wiring from the Y-harness to whatever accessory you want to power. Depending on the accessory, the manufacturer may already have the appropriate harness as part of the kit (Motolight did)

For my Motolight install, I did have to run the Motolight provided harness under the tank dash panel to get power to the lights themselves, but that was pretty easy.

Jun 22, 2020 | 10:12 PM

#14

EGS

Cruiser

Joined: Jan 2020

Posts: 230

Likes: 162

From: Northwest

Follow this post:

https://www.hdforums.com/forum/new-r...tch-kit-4.html

I did a write up on thread #40. It may help.

Jun 24, 2020 | 08:53 AM

#15

GlidingJoe

Stellar HDF Member

Joined: Feb 2013

Posts: 2,325

Likes: 333

From: Upper Providence Pa

Quote:

Originally Posted by David Walls

David,
Not knowing where you are installing the LED AUX Fog lights as in crash bar or fairing mount, but you don't need AUX Switch *** Kit w the relay unless your looking to add additional accessories at a later date or??
I am attaching both the install instructions for crash bar and fairing mount.
The crash bar mount will require two items a switch pack and the wiring harness:
The Switch pack part number is 69200172
https://shop.newcastlehd.com/part/69200172

https://www.harley-davidson.com/us/e...ess/p/69201109

https://serviceinfo.harley-davidson....D%22-J05962%22

The Fairing Mount will require the same switch pack but you will not need the wiring harness and attached is the install directions of how to wire.
https://www.harley-davidson.com/us/e...ome/p/68000183

https://serviceinfo.harley-davidson....D%22-J06145%22

Last edited by GlidingJoe; Jun 24, 2020 at 08:58 AM.
