Question about risers and and ABS brake cable / clutch cable

Reply Subscribe

Thread Tools

Search this Thread

Jul 6, 2020 | 11:27 PM

gthmnyt2580

Thread Starter

Cruiser

Joined: Mar 2020

Posts: 137

Likes: 132

From: Los Angeles

Question about risers and and ABS brake cable / clutch cable

I just picked up a set of Drag Specialties 4 1/2 risers off of Ebay for my 2020 Slim for a decent price. I should be getting them later this week and was hoping to install them before the weekend.
https://www.dragspecialties.com/sear...umber-06020409

I'm noticing now that some people say that you have to re-route the stock brake and clutch cables and some people say you don't. With that being said, my Slim has ABS brakes equipped so I'm not sure if that makes any difference in terms of the brake cable length. Anybody manage to make the stock cables WITH ABS brakes work with 4 1/2 risers and if so, how?

I should also note that I'm keeping the Hollywood bars on there.

Thanks in advance!

Jul 7, 2020 | 01:10 AM

Agoober

Banned

Joined: Jan 2019

Posts: 3,036

Likes: 1,013

From: Nunya.

Thinking you might have to get a longer brake cable man and maybe clutch too.
The boys will know.

Sep 19, 2020 | 10:29 AM

Rob Cor

5th Gear

Joined: Apr 2020

Posts: 9

Likes: 0

From: Orlando

Wiring and cables

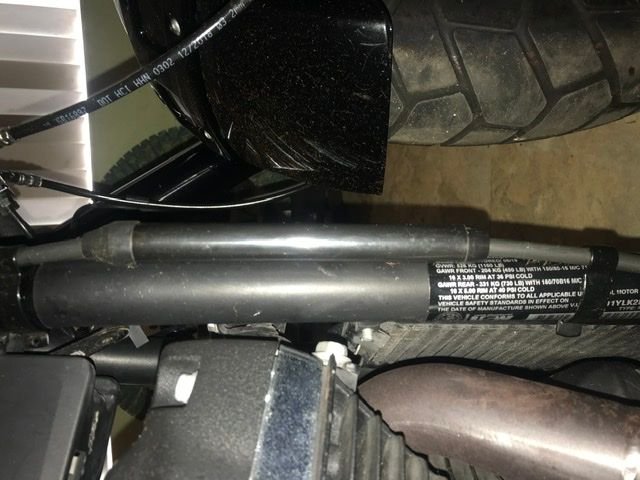

12” risers narrow bars on my FatBob 114. Required upper brake line (ABS) and upper clutch cable. However if you route the clutch cable on

the right hand side of bike you may be able to get away with not buying the clutch cable upper part. Use a string to measure from the bottom of triple tree for ABS brakes or caliper on non ABS system. Magnum Chromite II is what I went with for the ABS.

Sep 19, 2020 | 10:58 AM

LaRSin

Tourer

Joined: Sep 2010

Posts: 269

Likes: 101

From: Southern Ont, Canada

From what I understand you just have to reroute the clutch cable , And a new top clamp , as the drag sp. is angled .

check the last post on this thread , I'm going to do the same thing , Just not sure which one to go with HD or Drag

https://www.hdforums.com/forum/2018-...ar-change.html

Last edited by LaRSin; Sep 19, 2020 at 11:08 AM.
