96 Electra Glide Speaker Problem
Any help would be appreciated. Installed a Kenwood KMR R328bt stereo with Kicker speakers. All brand new. Had to use the adapter from 98 up models with the handlebar control module. Also have a Rockford Fosgate amplified antenna. Everything works except the right speaker. I removed it and it worked when I hooked it up to the left side terminals. Anything I’m missing or I should check? Not an audio expert.
Road Warrior
Joined: Feb 2016
Posts: 1,354
Likes: 399
From: Vancouver, BC
Is it possible to bypass the adaptor and handlebar controls to help isolate? Then if both channels work when controlling l/r balance from the head unit you'll have a better idea of where your problem is. What adaptor and control module are you using?
Thread Starter
|
Intermediate
Joined: Mar 2015
Posts: 39
Likes: 24
From: New Jersey
Trending Topics
Road Warrior
Joined: Feb 2016
Posts: 1,354
Likes: 399
From: Vancouver, BC

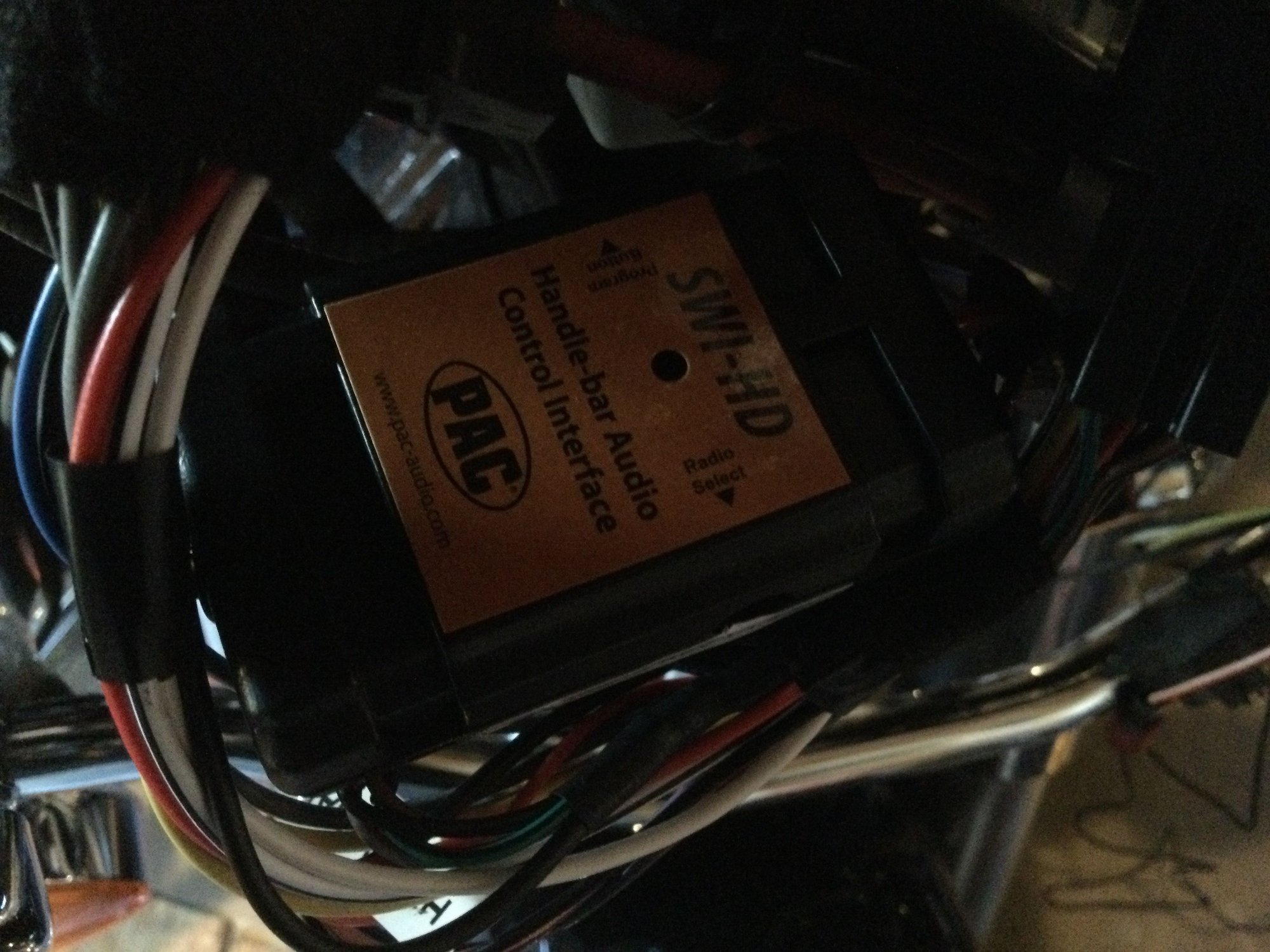

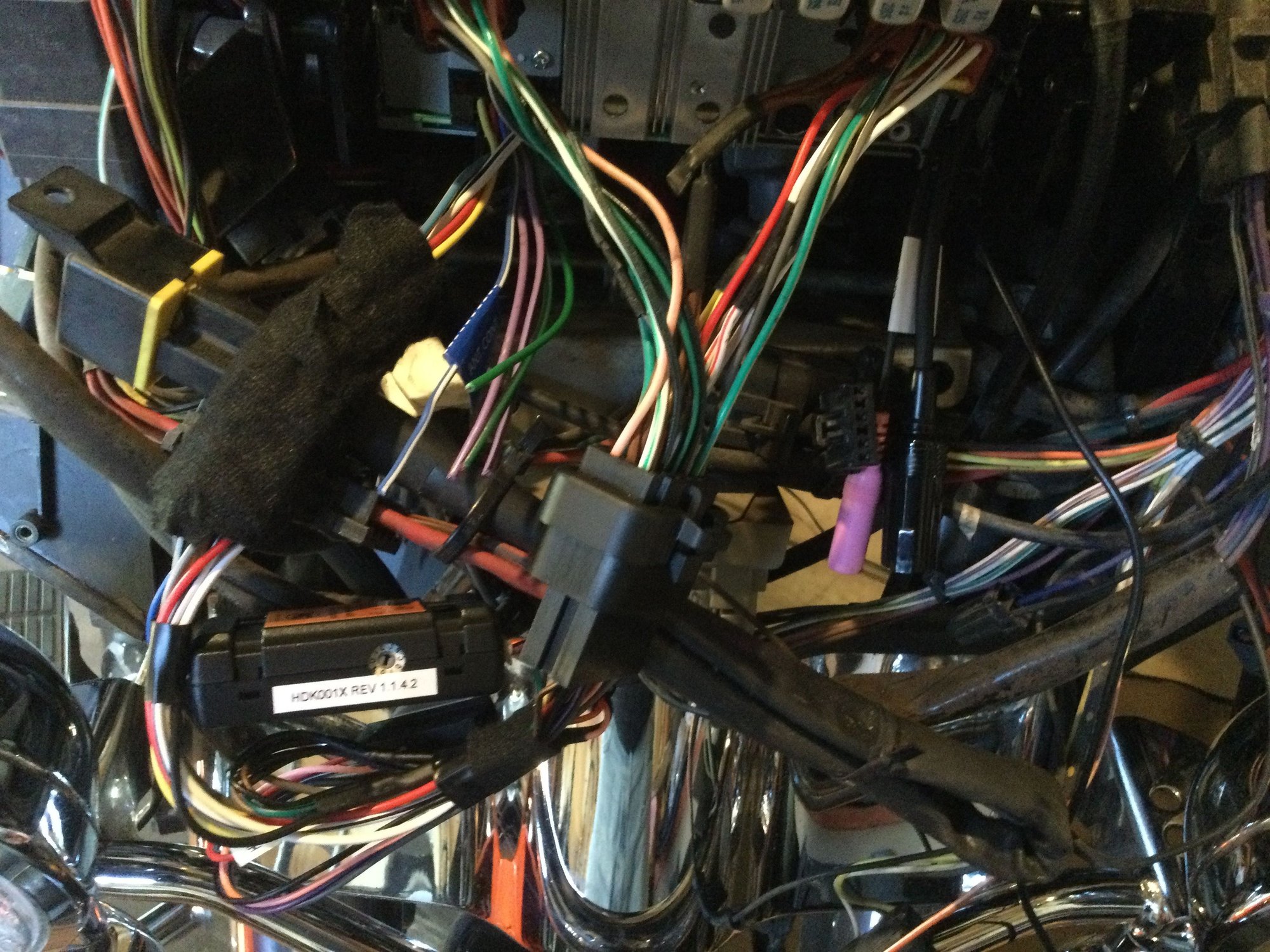

From the sticker on the side of the module that looks like it's the PAC HDK001X kit. I took a look at the instructions found here.
The problem is either the radio right channel, the kit wiring harness between the radio and the bike harness, or the bike harness itself. It's comes down to isolating the problem to fix it. You already eliminated the speaker itself and have also proven the left channel path is good all the way through.
You should confirm the right channel wiring is correct with good connections coming from the radio and connecting through the kit's harness into the bike harness. Then if that looks ok you could swap the left and right channel wiring at the radio to see if the problem might be the right channel of the radio itself.
If the radio and HD001X harness then test out ok you need to look at the bike harness. It looks like the bike harness itself has been modified but it's hard to tell from the pictures. You should make sure the bike's wiring from the harness connector to the speaker terminals is good.
Did you install this yourself? Was the original radio in place before this kit and radio were installed and the right channel working?
EDIT: In case you need the Harley wiring diagrams they can be found here. The '96 FLHT diagrams are WD26-30, 33. The bike harness (radio plug 27A in the diagrams) uses the following to connect the speakers:
Right: pin 9 (Grey/Red) is +, pin 10 (Green/Black) is -
Left: pin 11 (White/Orange) is +, pin 12 (Green/White) is -
The problem is either the radio right channel, the kit wiring harness between the radio and the bike harness, or the bike harness itself. It's comes down to isolating the problem to fix it. You already eliminated the speaker itself and have also proven the left channel path is good all the way through.
You should confirm the right channel wiring is correct with good connections coming from the radio and connecting through the kit's harness into the bike harness. Then if that looks ok you could swap the left and right channel wiring at the radio to see if the problem might be the right channel of the radio itself.
If the radio and HD001X harness then test out ok you need to look at the bike harness. It looks like the bike harness itself has been modified but it's hard to tell from the pictures. You should make sure the bike's wiring from the harness connector to the speaker terminals is good.
Did you install this yourself? Was the original radio in place before this kit and radio were installed and the right channel working?
EDIT: In case you need the Harley wiring diagrams they can be found here. The '96 FLHT diagrams are WD26-30, 33. The bike harness (radio plug 27A in the diagrams) uses the following to connect the speakers:
Right: pin 9 (Grey/Red) is +, pin 10 (Green/Black) is -
Left: pin 11 (White/Orange) is +, pin 12 (Green/White) is -
Last edited by hamah; May 5, 2021 at 12:18 AM. Reason: Adding Info
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo
Thread Starter
|
Intermediate
Joined: Mar 2015
Posts: 39
Likes: 24
From: New Jersey
Had a friend check everything over and his determination was a faulty head unit. I sent it back and will be waiting on a new one to arrive next week. I’ll let ya know if it works out. Thanks for all the time and info👍👍
