Default PMX-HD9813 with Stinger spx700x4 amp
Hi,

I'm trying to connect my Fosgate PMX-HD9813 stereo to an Stinger spx700x4 amp.
I will be replacing a Hogtunes system do I need any specific wiring harness?



Reply
0
Old May 11, 2022 | 05:46 AM
Share
  #2
Fireball Jack's Avatar
Fireball Jack
Stellar HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2015
Posts: 2,681
Likes: 851
From: Puyallup, wa
Default
RCA from head unit to amp.

Reply
0
Old May 11, 2022 | 08:45 AM
Share
  #3
hmalekib's Avatar
hmalekib
Thread Starter
|
4th Gear
Joined: Dec 2020
Posts: 8
Likes: 0
From: Toronto
Default
Hi,

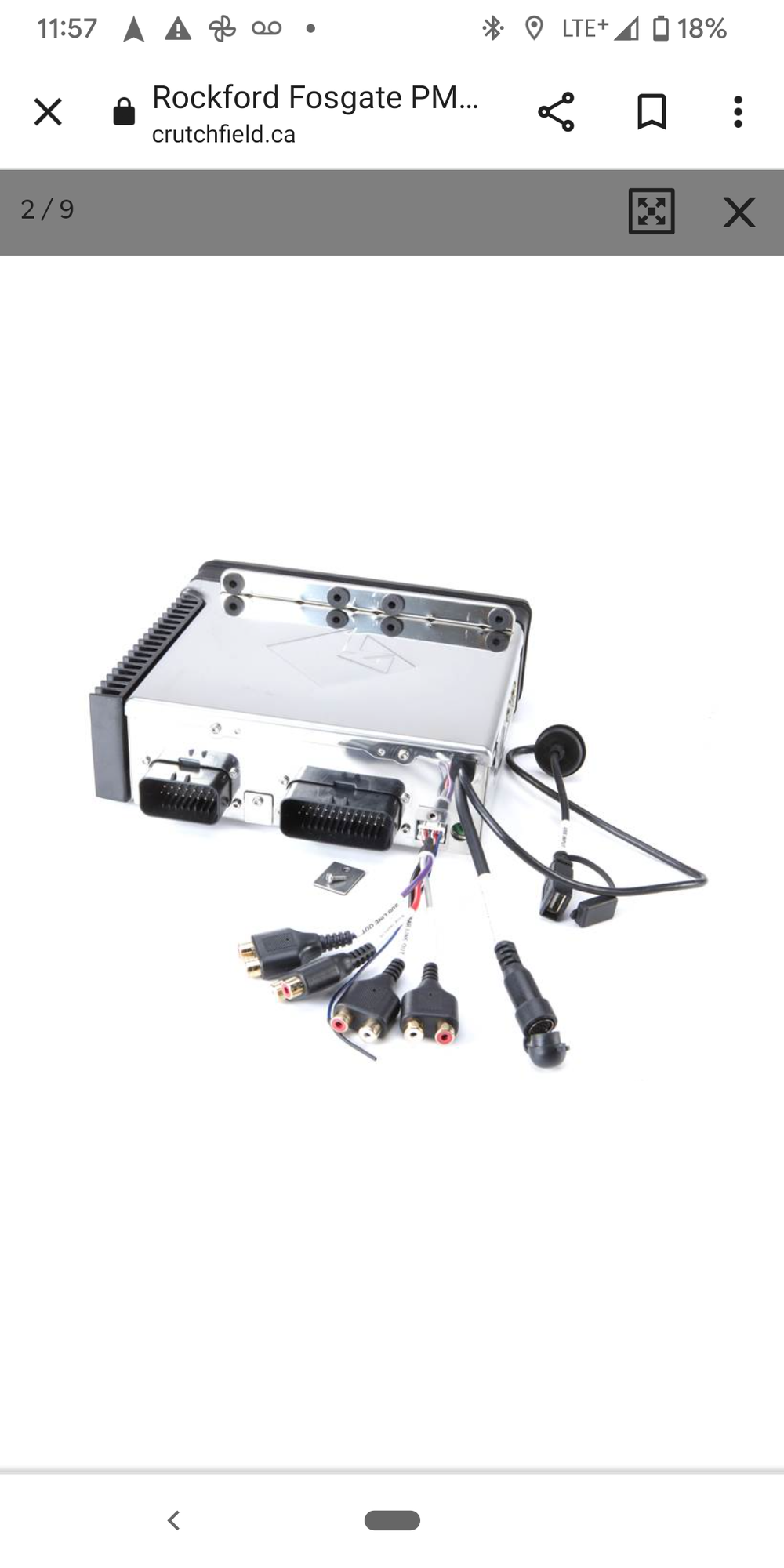

The head unit doesn't have RCA... See below:


Reply
0
Old May 11, 2022 | 08:46 AM
Share
  #4
decencyxdefied's Avatar
decencyxdefied
Seasoned HDF Member
10 Year Member
Liked
Top Answer: 1
Joined: Mar 2012
Posts: 5,157
Likes: 740
From: new caney, tx
Default
Originally Posted by hmalekib
Hi,

The head unit doesn't have RCA... See below:
​​​​​​If that's the case there should be a plug with rca on the other end

Reply
0
Old May 11, 2022 | 08:58 AM
Share
  #5
Fireball Jack's Avatar
Fireball Jack
Stellar HDF Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Oct 2015
Posts: 2,681
Likes: 851
From: Puyallup, wa
Default
Operating Voltage
9.5 - 16 VDC
Output Power
CEA-2006 Power Rating
25W x 4 @ 4Ω RMS
50W x 4 @ 2Ω MAX
≤1.0% THD+N
Output Impedance
< 500 Ohms
Idle Current
< 2 Amps
Frequency Response
RCA: 20Hz - 20 kHz
High-Level: 20Hz - 20 kHz
RCA Output Voltage
Front: 4 V Max
Rear: 4 V Max
Sub: 4 V Max
THD+N
4-Ohms: < 1.0 %
Channel Separation
RCA: > 50 dB
High-Level: > 50 dB
Signal-to-Noise Ratio
RCA 2V: > 85 dB
High Level (CEA-2006): > 75 dB
Max Wrms: > 80 dB

AM Tuner
Range: 530 - 1710 kHz
Sensitivity: 40 dB
Frequency Response: 45 to 2.4 kHz
FM Tuner
Range: 87.9 - 107.9 MHz
Sensitivity: 8 dB
Frequency Response: 20 - 15 kHz

Reply
0
Old May 11, 2022 | 01:05 PM
Share
  #6
Bluesman280's Avatar
Bluesman280
Road Master
Joined: Jun 2017
Posts: 1,027
Likes: 188
From: Edmonton, AB
Default
Your RF HU should have a small cover that can be removed on the bottom right side of the HU.
You RF HU should have also came with a plug with RCA outputs that gets plugged into the HU.


Reply
0
Old May 11, 2022 | 06:04 PM
Share
  #7
madhunter60's Avatar
madhunter60
Road Captain
Joined: Jul 2010
Posts: 615
Likes: 83
From: Jackson, Michigan
Default

Reply
0

Trending Topics

Old May 12, 2022 | 06:54 PM
Share
  #8
Lcd1773's Avatar
Lcd1773
Stage II
Joined: May 2022
Posts: 2
Likes: 0
From: Ohio
Default RCA wiring harness question
I see on the harness it has a remote wire, do I need to hook it up and if so we’re and do I need a loc or a dsp?

it’s going to be hooked up to a soundigital 800.4 evo4 and the speakers are hertz sx165 neo

tyia!!

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old May 12, 2022 | 10:44 PM
Share
  #9
Bluesman280's Avatar
Bluesman280
Road Master
Joined: Jun 2017
Posts: 1,027
Likes: 188
From: Edmonton, AB
Default
Originally Posted by Lcd1773
I see on the harness it has a remote wire, do I need to hook it up and if so we’re and do I need a loc or a dsp?

it’s going to be hooked up to a soundigital 800.4 evo4 and the speakers are hertz sx165 neo

tyia!!
If you are talking about the blue remote turn on wire, that goes to the amp to turn on the amp.
No LOC or DSP required. You have a built in EQ in that HU to help with tuning.

Reply
0
Old May 13, 2022 | 05:33 AM
Share
  #10
Dsm Limited's Avatar
Dsm Limited
Club Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2014
Posts: 7,618
Likes: 10,437
From: Des moines IA
Riders Club Member
Default
Originally Posted by Lcd1773
I see on the harness it has a remote wire, do I need to hook it up and if so we’re and do I need a loc or a dsp?

it’s going to be hooked up to a soundigital 800.4 evo4 and the speakers are hertz sx165 neo

tyia!!
No LOC or DSP needed. The Remote (blue) wire needs connected to a "keyed" power source.

Reply
