Please help identify

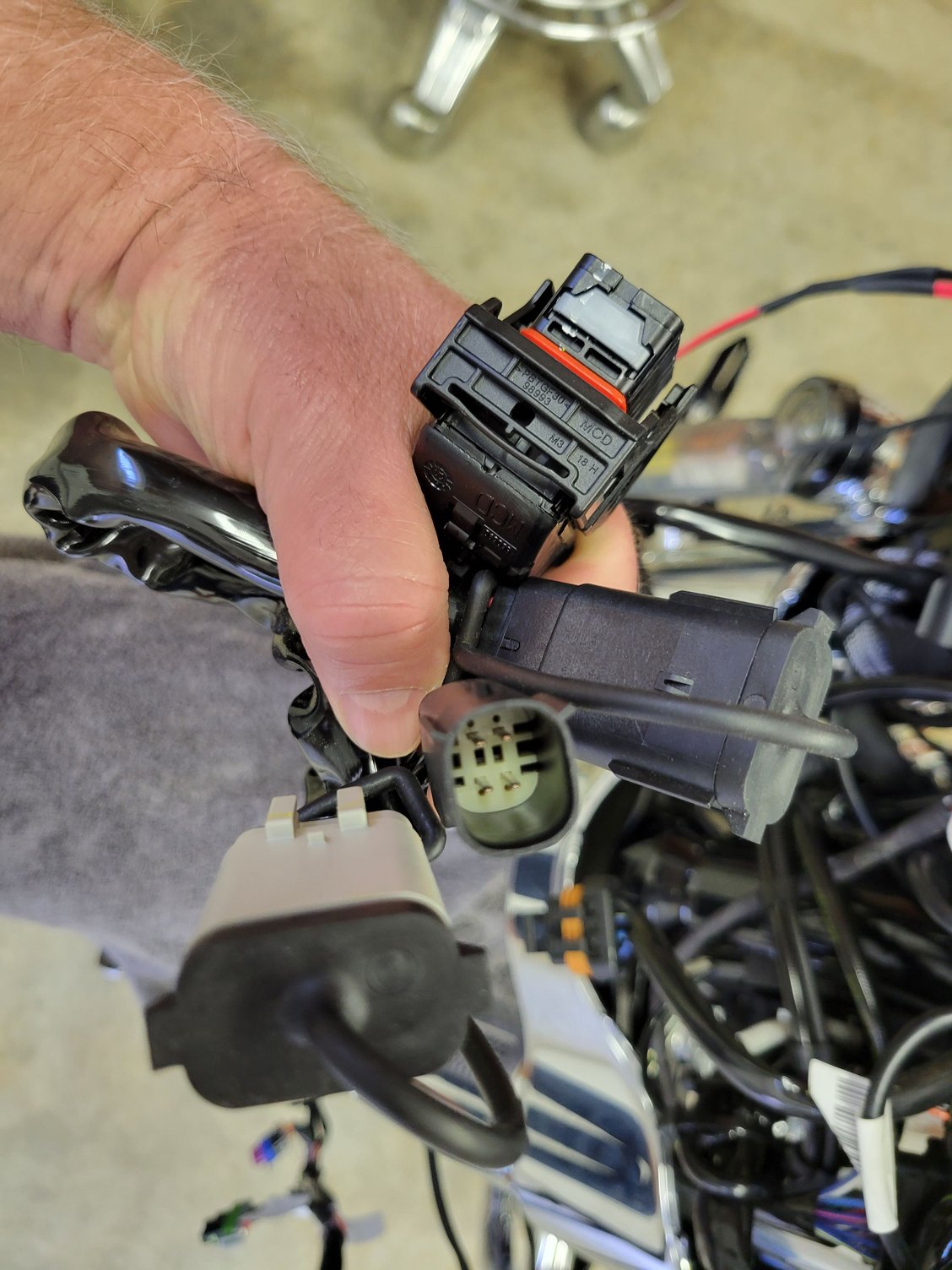

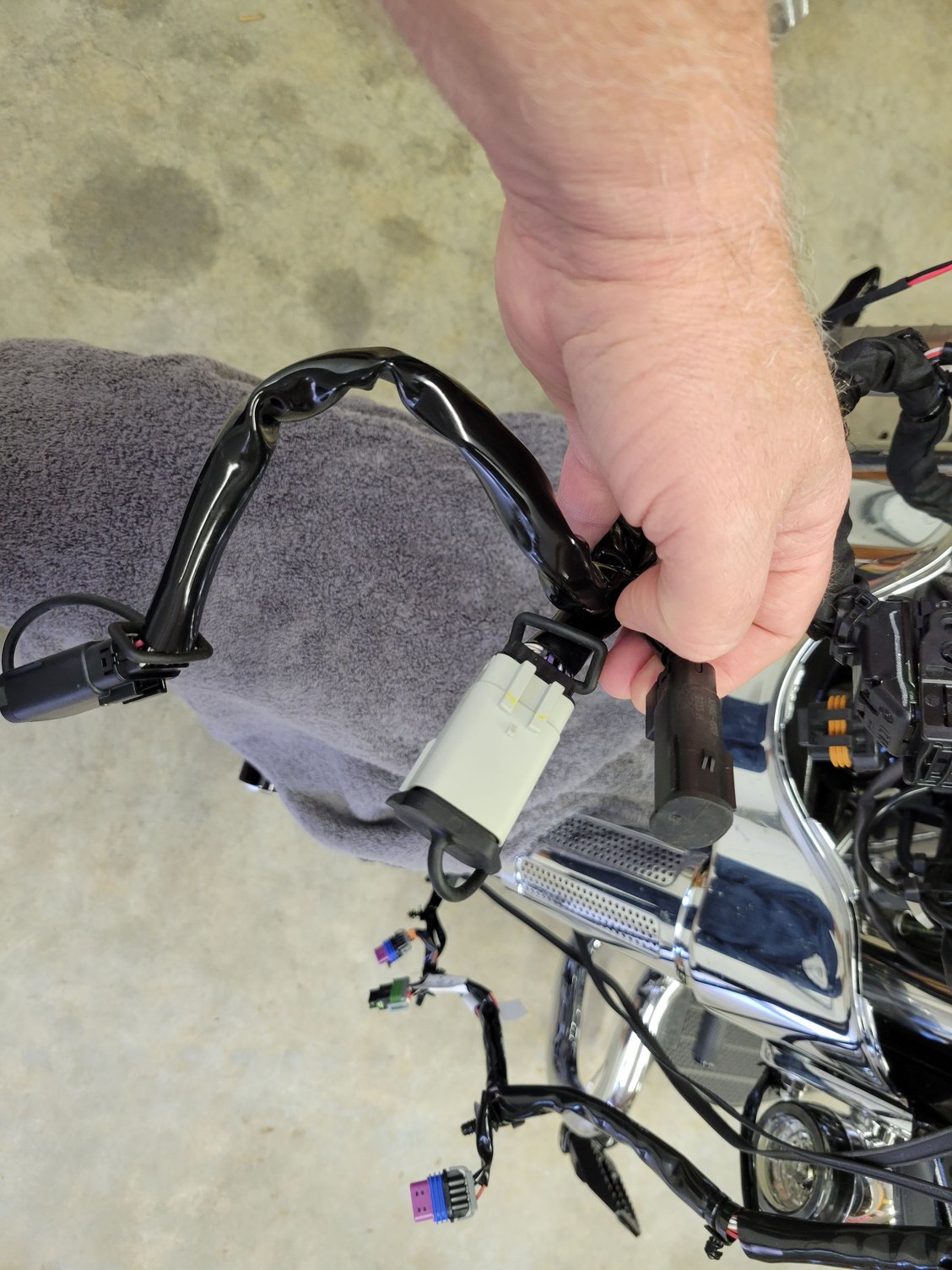

Please help me confirm that this is the correct connection under the fairing to plug my backbone harness to for the rear speakers.

I've look all through my service manual and cannot confirm this is correct. It is the only open four pin male under the fairing.

I'm specifically speaking of the one I have my thumb on.

Thanks

Jun 28, 2022 | 06:38 AM

Cosmic Razorback

Thread Starter

Club Member

Joined: Aug 2008

Posts: 21,645

Likes: 22,575

From: North Carolina

I got it figured out.

Thanks

Jul 3, 2022 | 12:58 PM

Bookie

Cruiser

Joined: Nov 2015

Posts: 117

Likes: 16

From: Dallas, TX

rear speaker plug location

I have a 2015 Ultra

Did you figure out where the rear speaker plug is located under the fair?

I am installing a amp under the fairing and cannot find the rears speakers.

I have looked at the wiring diagram and cannot seem to located the rear speaker plugs.

Jul 4, 2022 | 09:24 AM

Cosmic Razorback

Thread Starter

Club Member

Joined: Aug 2008

Posts: 21,645

Likes: 22,575

From: North Carolina

Quote:

Originally Posted by Bookie

Yes it is the plug I referenced above that I have my thumb on. It was the only male pin connector open on my main wire harness under the fairing. It will have a rubber plug in it that you’ll Remove.

Hope this Helps.
