Help Identifying This Old Frame
Thread Starter
|
3rd Gear
Joined: May 2025
Posts: 7
Likes: 1
From: Houston TX
Help Identifying This Old Frame

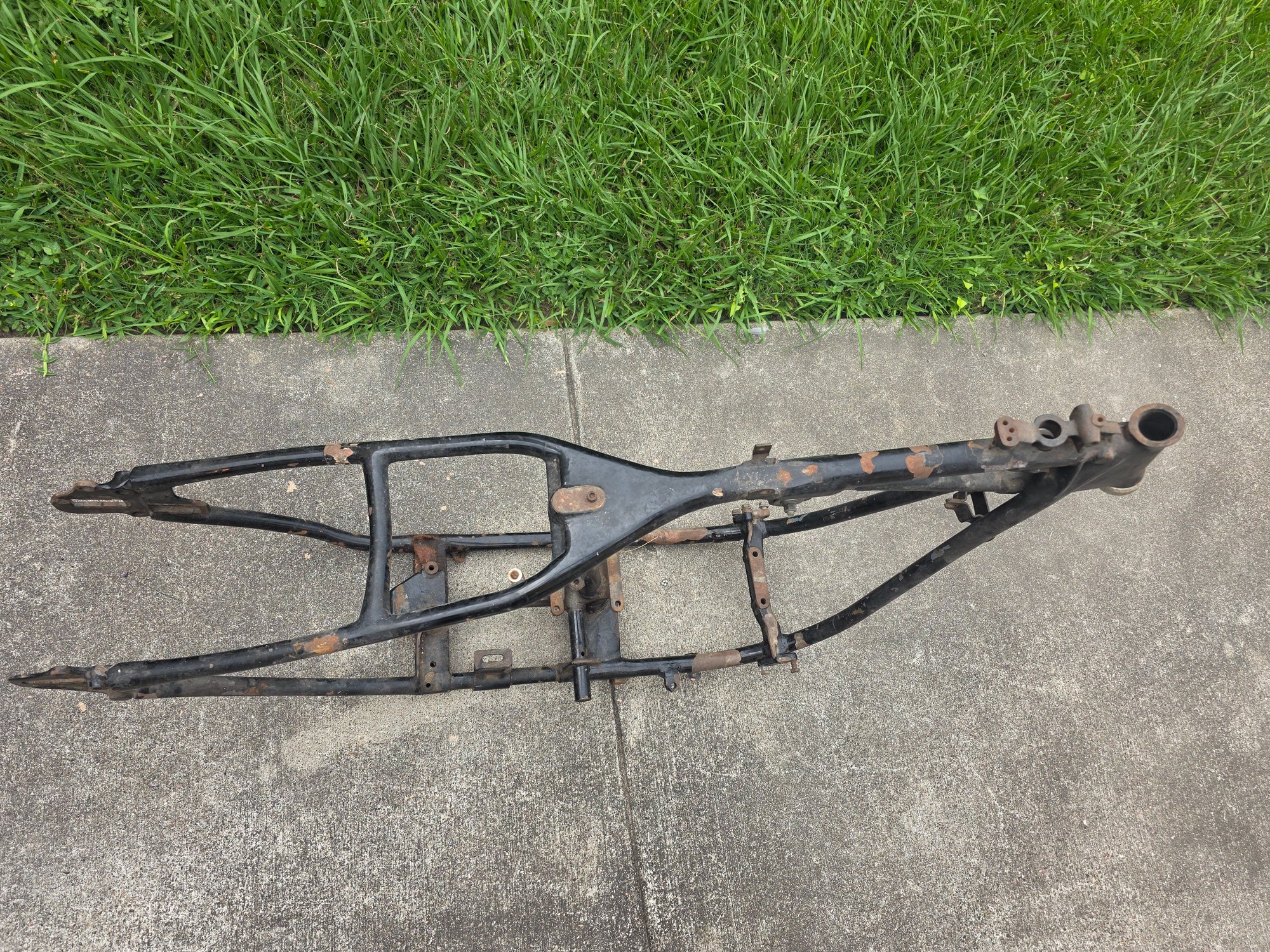

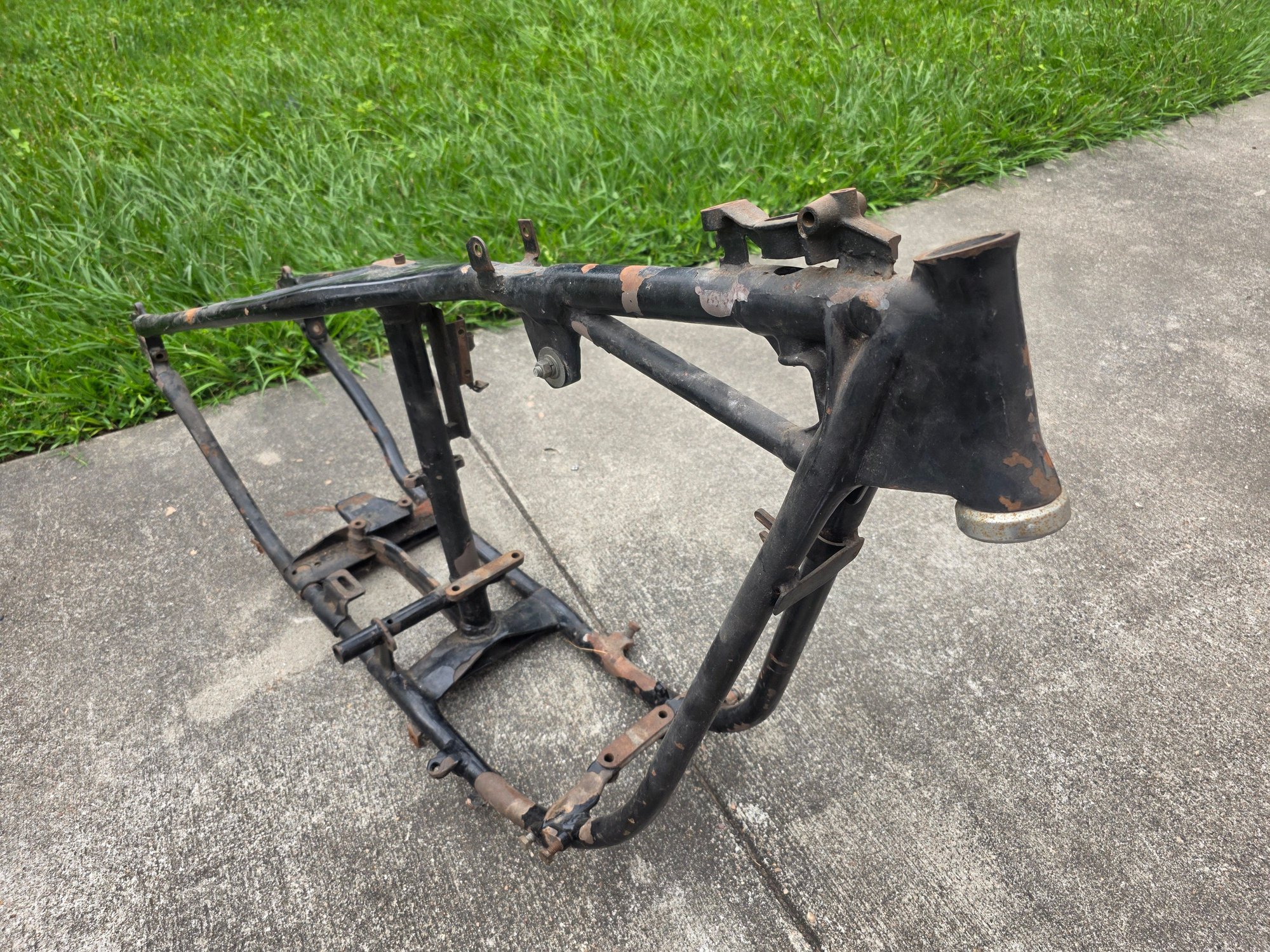

Given to me by an old family member, I am pretty sure its oem but has no numbers whatsoever. I know its a straight leg but thats it. Just looking to get a general idea of what year this may be from.
Seasoned HDF Member
Joined: Jun 2012
Posts: 6,163
Likes: 2,573
From: CT/FL
Somebody made a chopper years ago. It appears the numbers were either ground off or hidden behind a lot of filler. Not much help, but someone will know soon.
@hellonewman
@hellonewman
Seasoned HDF Member
Joined: Apr 2010
Posts: 9,591
Likes: 7,974
From: Long Island, New York
Yeh, lots of filler and modifications, not stock. Look around for any numbers or forging symbols and post pics. Check the rear axel plates, they look unmolested.
What are you intentions? What were you told it was??
What are you intentions? What were you told it was??
Thread Starter
|
3rd Gear
Joined: May 2025
Posts: 7
Likes: 1
From: Houston TX
Thanks for the advice just found these numbers under a bit of paint! Looks to say xe-7 01F or 0iF? leads me to think maybe a 1940s frame?
So I actually have a few of these and am looking to sell this one. Family member who gave them to me just called them "straight legs".
Thread Starter
|
3rd Gear
Joined: May 2025
Posts: 7
Likes: 1
From: Houston TX
Thanks! posted a pic of the numbers above. Want to sell told it was a "straight leg"
Seasoned HDF Member
Joined: Jun 2015
Posts: 8,055
Likes: 8,080
From: Canada
The fastest way is to scrape the paint off the portion of the upper engine mount tab on the right side where its overlaid on the backbone. Look for a Letter like an F and a number like a 5 which would be 6th month of 1945 for example. Other wise you need to dig out some bondo to check other forgings. The right rear axle tab will also have numbers like the left that says XE-7, there will be a number after that either single or double digits. Then we can help more.
Trending Topics
Seasoned HDF Member
Joined: Jun 2015
Posts: 8,055
Likes: 8,080
From: Canada
Its a straight leg.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom
Verdad Gallardo
6 Weirdest Harley-Davidsons Ever Sold to the Public
Verdad Gallardo
7 Times Harley-Davidson Chucked Tradition Out the Window
Verdad Gallardo
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Thread Starter
|
3rd Gear
Joined: May 2025
Posts: 7
Likes: 1
From: Houston TX
The fastest way is to scrape the paint off the portion of the upper engine mount tab on the right side where its overlaid on the backbone. Look for a Letter like an F and a number like a 5 which would be 6th month of 1945 for example. Other wise you need to dig out some bondo to check other forgings. The right rear axle tab will also have numbers like the left that says XE-7, there will be a number after that either single or double digits. Then we can help more.
Ok so here's what I managed to get.

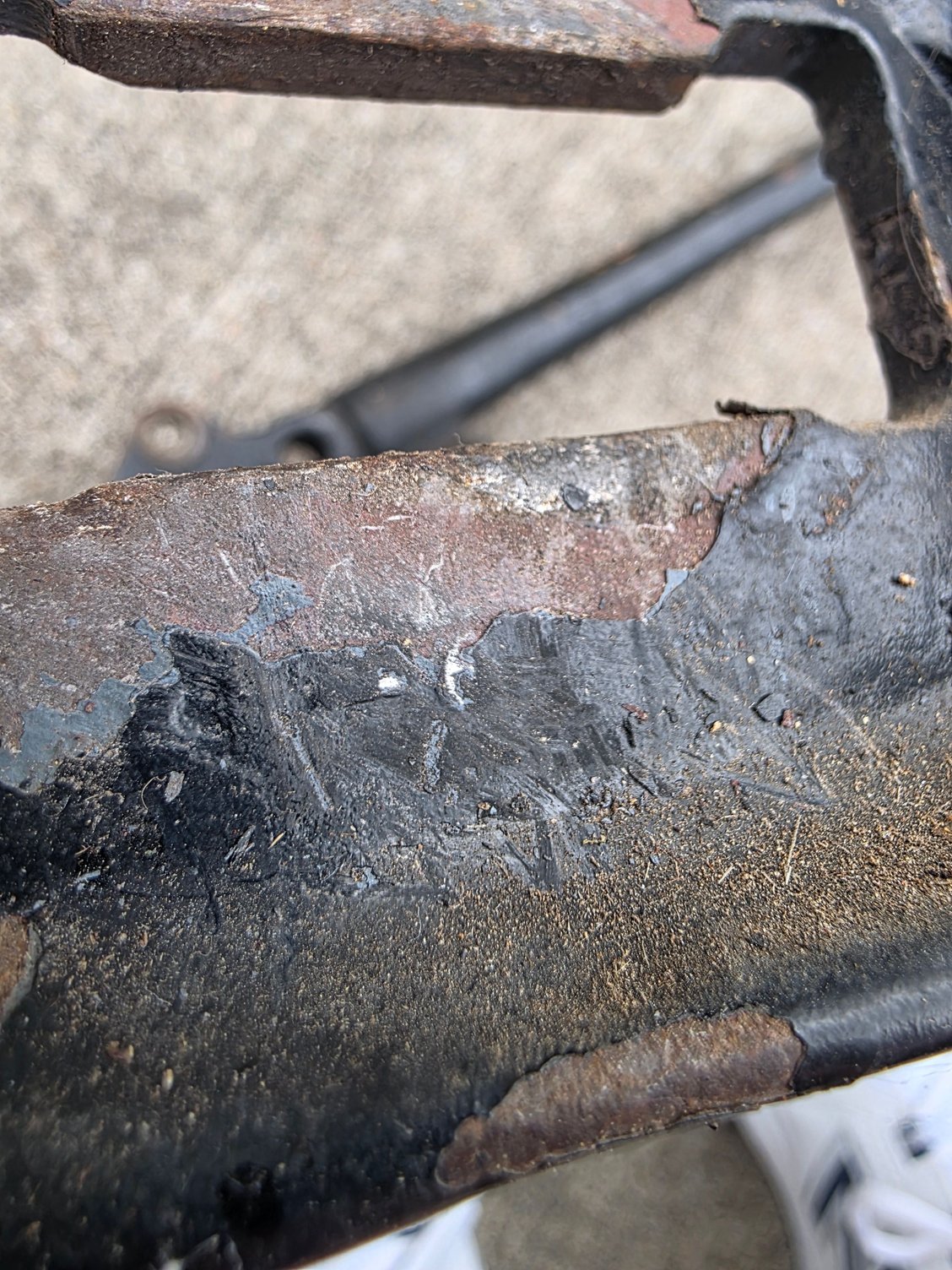

Not a great photo of rear right axel but it looks to say xe-6

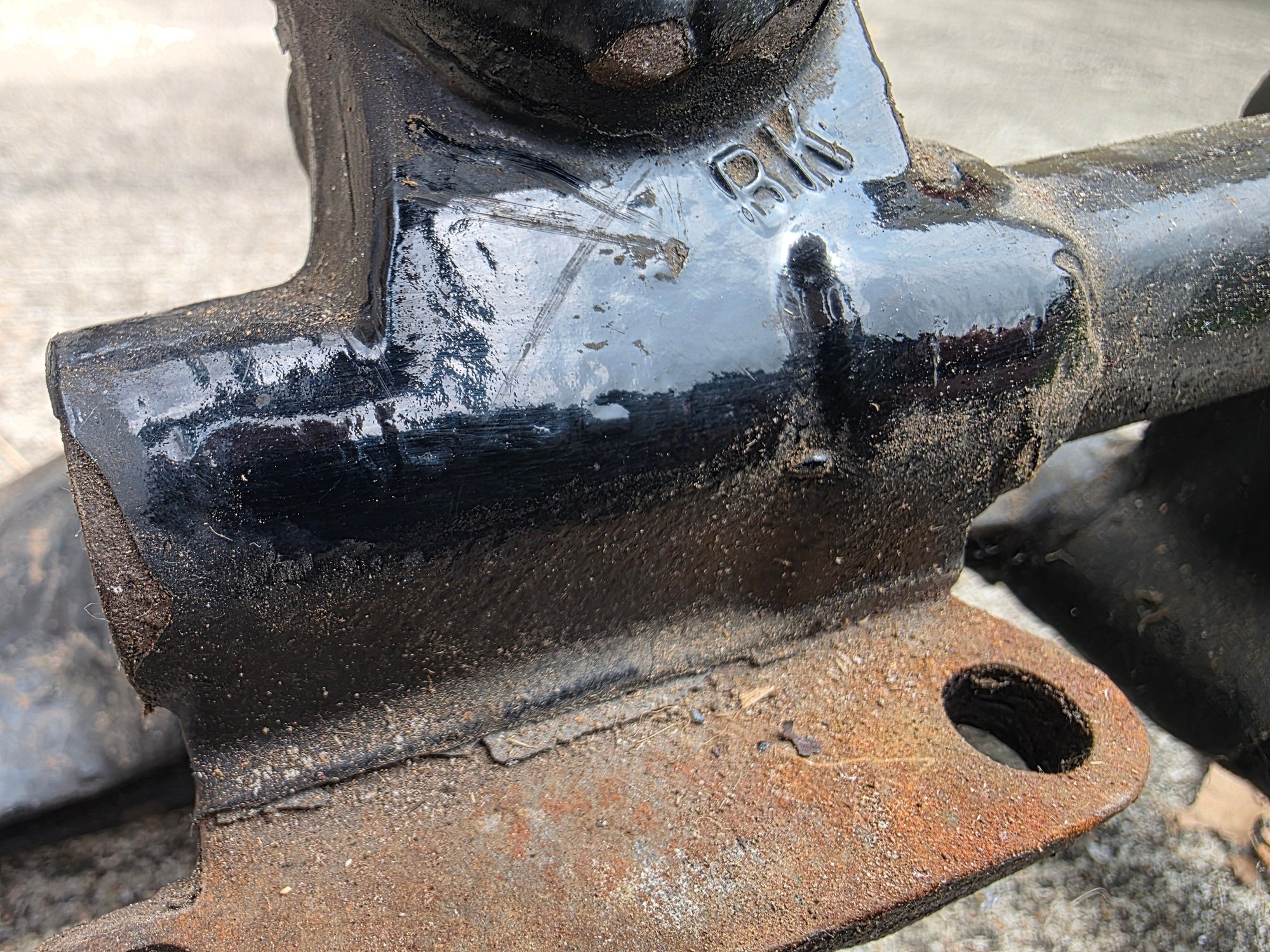

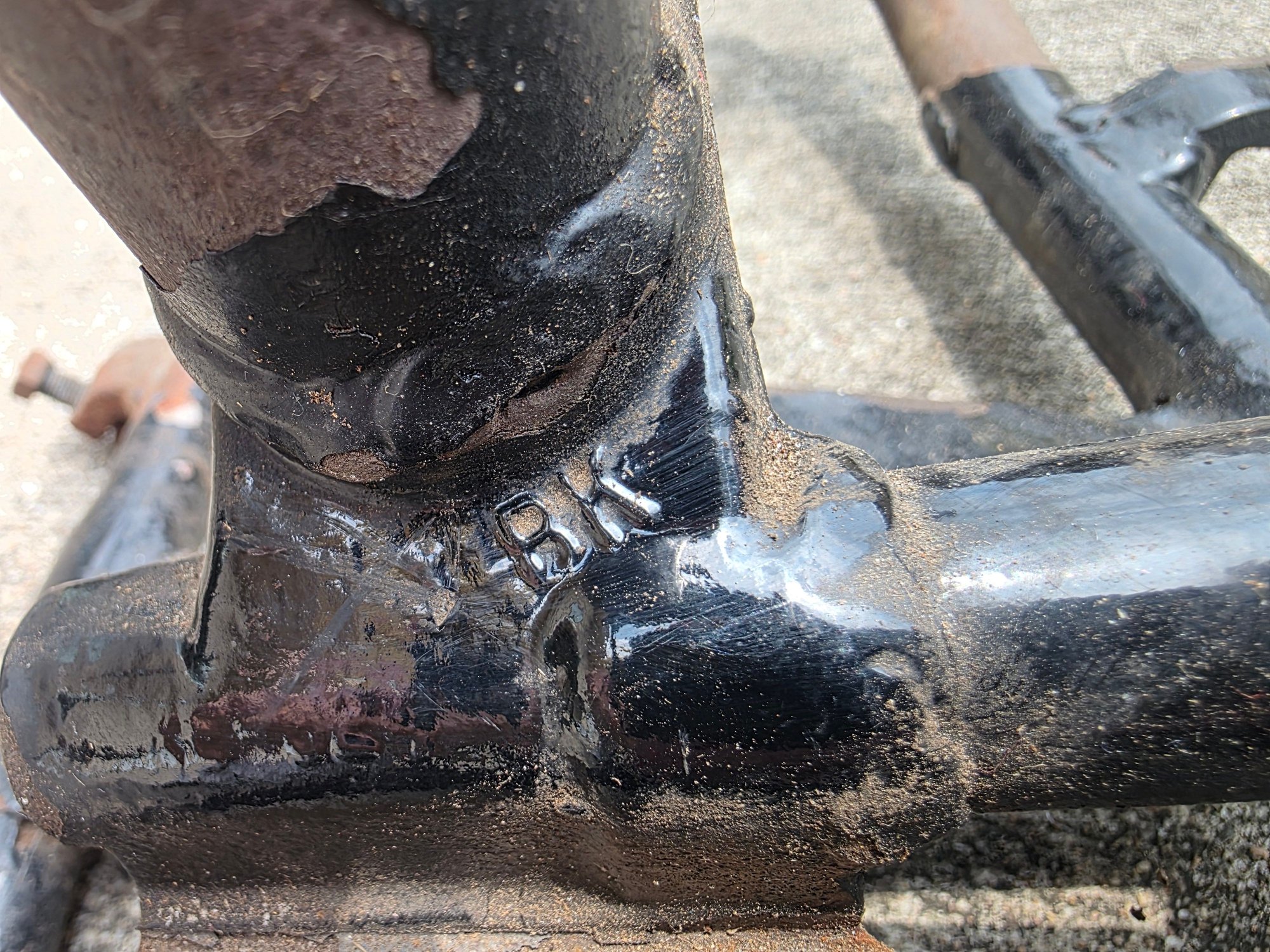

found some numbers/letters on the backbone obviously can make out BK and to the bottom left of the BK under the paint I can make out a clear 2 and possibly a 5 before the 2 so 52? and just to the left of those numbers looks to be a letter maybe a F or an E+
sorry again for the not great photos its starting to rain here so I needed to make it quick.
