Switchback owners.....need help

Reply Subscribe

Thread Tools

Search this Thread

Mar 22, 2015 | 07:21 AM

Rainmakr

Thread Starter

Road Master

Joined: Jul 2011

Posts: 814

Likes: 8

From: Virginia

Switchback owners.....need help

I just finished installing the FLD rear fender on my superglue custom. I just picked up the license plate light (white light) that mounts underneath the turn signal bar. Can someone take a picture or tell me where the license plate light plugs into? It should plug somewhere inside with the plugs hidden by the brake light. Thanks!

Mar 22, 2015 | 08:30 AM

blueangel73

Grand HDF Member

Joined: Mar 2010

Posts: 3,949

Likes: 150

From: South of Mordor

Quote:

Originally Posted by Rainmakr

Wish I could help you man, I am sure someone will get you an answer soon. Where abouts in Va are ya?

Mar 22, 2015 | 10:13 AM

Low budget Dan

Road Master

Joined: Dec 2012

Posts: 1,241

Likes: 514

From: Getzville New York

take the lens off there shoulld be an empty spot to put the connector

Mar 22, 2015 | 10:48 AM

Low budget Dan

Road Master

Joined: Dec 2012

Posts: 1,241

Likes: 514

From: Getzville New York

you can also get the lens that does not have the clear window on top that i saw in your other post

Last edited by Low budget Dan; Mar 22, 2015 at 10:50 AM.

Mar 22, 2015 | 10:58 AM

bigjames4xl

Tourer

Joined: Nov 2012

Posts: 496

Likes: 46

From: Columbia sc

If this link works it will show you the components, there's an oem parts finder enter the fld and go to the rear tail light page

http://partsfinder.onlinemicrofiche....-W/-TAIL-LIGHT

Last edited by bigjames4xl; Mar 22, 2015 at 11:01 AM.

Mar 22, 2015 | 12:37 PM

Rainmakr

Thread Starter

Road Master

Joined: Jul 2011

Posts: 814

Likes: 8

From: Virginia

Quote:

Originally Posted by blueangel73

Wish I could help you man, I am sure someone will get you an answer soon. Where abouts in Va are ya?

Virginia Beach area

Mar 22, 2015 | 12:39 PM

Rainmakr

Thread Starter

Road Master

Joined: Jul 2011

Posts: 814

Likes: 8

From: Virginia

Quote:

Originally Posted by bigjames4xl

If this link works it will show you the components, there's an oem parts finder enter the fld and go to the rear tail light page

http://partsfinder.onlinemicrofiche....-W/-TAIL-LIGHT

Thanks. I'll give that a try. I have/use another link that shows OEM parts and the exploded view of the parts but it doesn't show the electrical connections.

10 Most Awkward-Looking Motorcycles Ever Built

Verdad Gallardo

Jason Momoa Is Turning Classic Harleys Into PHEVs

Verdad Gallardo

Harley-Davidson Fat Boy Becomes a Dark, Decepticon-Inspired Custom

Verdad Gallardo

6 Weirdest Harley-Davidsons Ever Sold to the Public

Verdad Gallardo

7 Times Harley-Davidson Chucked Tradition Out the Window

Verdad Gallardo

7 Surprising Harley-Davidson Products that Are Not Motorcycles

Verdad Gallardo

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Mar 23, 2015 | 07:46 PM

Rainmakr

Thread Starter

Road Master

Joined: Jul 2011

Posts: 814

Likes: 8

From: Virginia

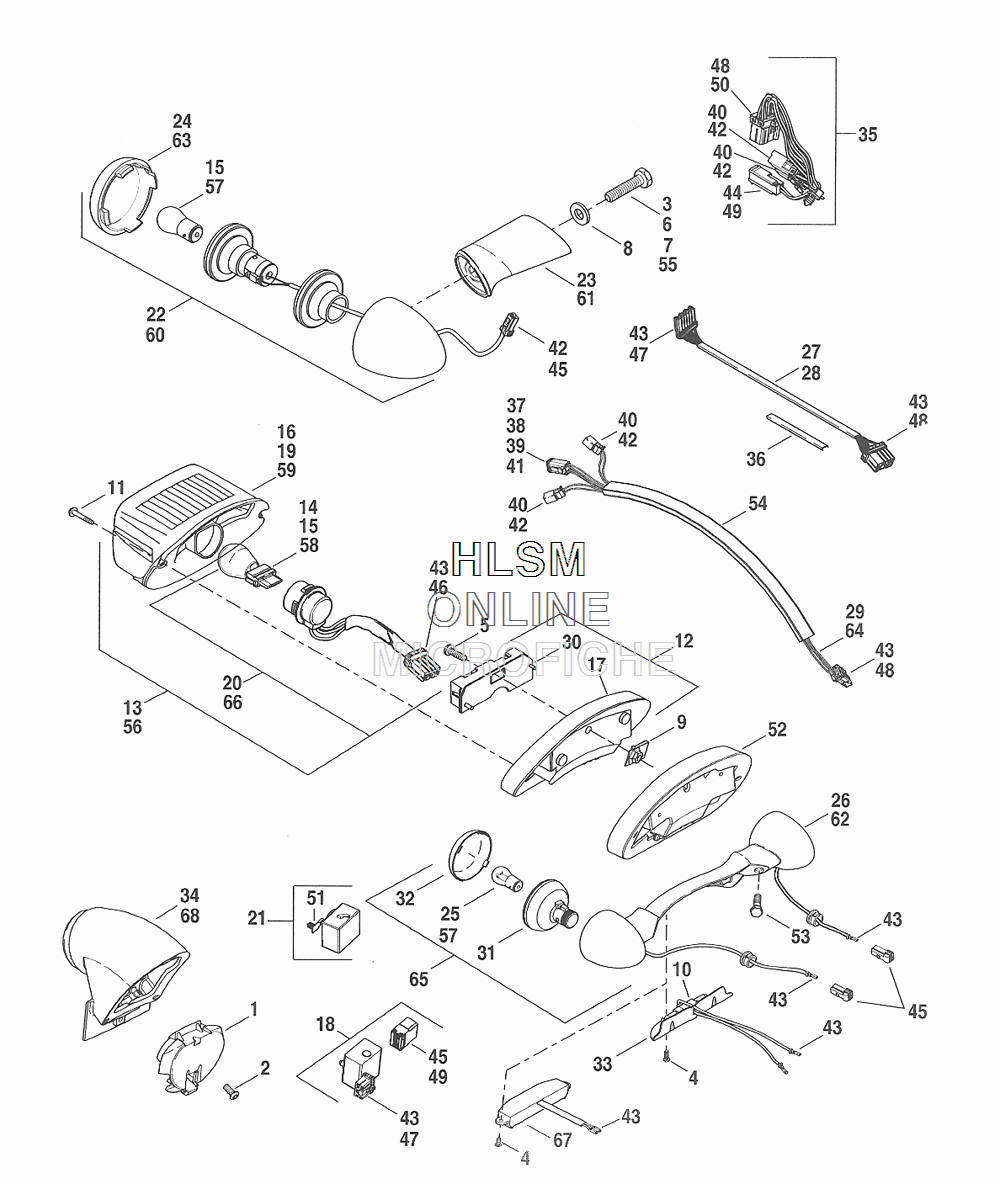

I need help finding out where item 10 (license plate light) plugs into item 30 (circuit board).
