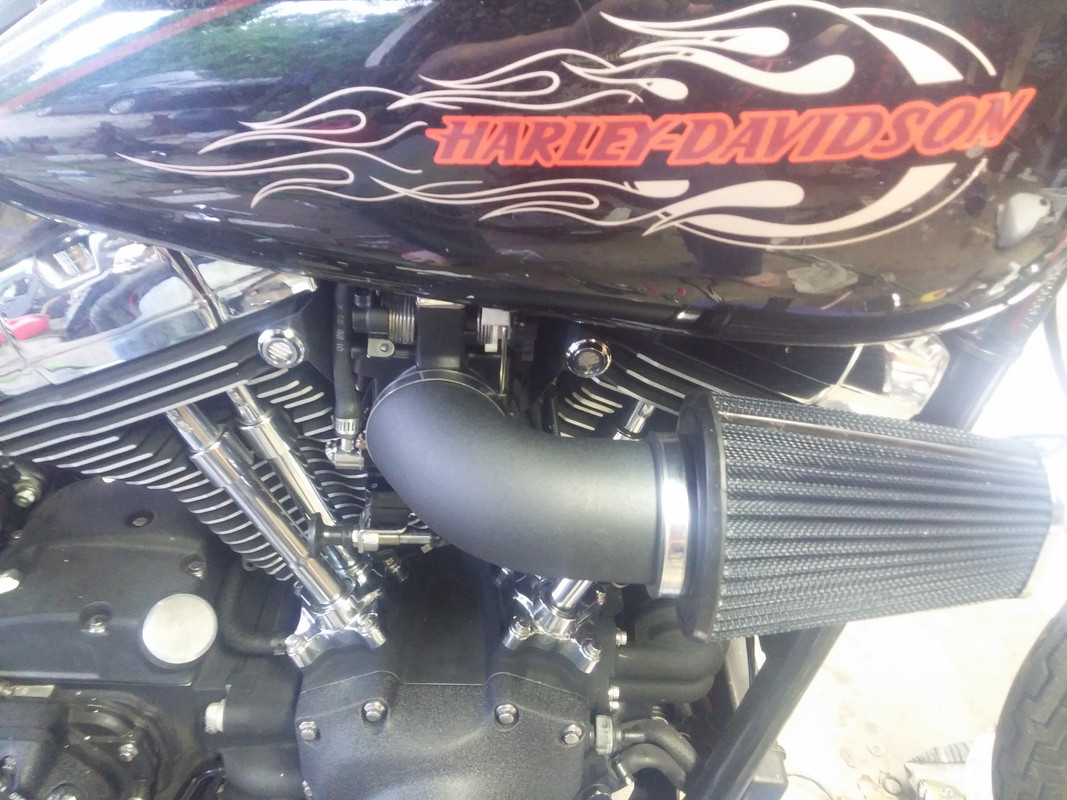

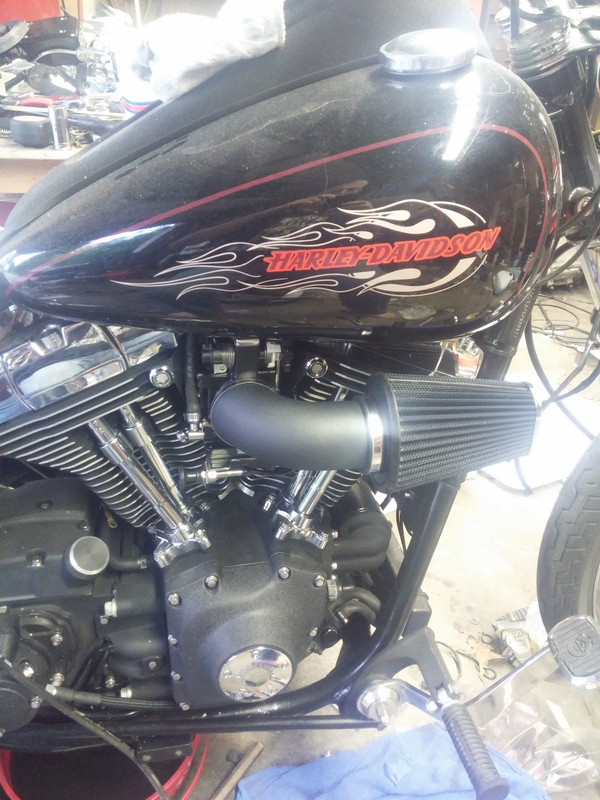

The paint on the induction tube is dry enough to install, so here it is...

I know this style AC is non traditional and certainly isn't for everyone, but for me it's form following function. I tried a couple other ACs and they all interfere badly with my knee. This one doesn't.



None of that bulky bracket and breather crap here!


Last edited by cggorman; 09-07-2017 at 10:59 PM.
  #102
Old 05-13-2016, 07:08 PM
hetkehog's Avatar
hetkehog
hetkehog is offline
One Of The Regulars
Join Date: Jul 2015
Location: bloomer wi
Posts: 218
Received 15 Likes on 11 Posts
Default

just awesome is all i can say

  #103
Old 05-13-2016, 08:25 PM
tcarson84
tcarson84 is offline
Senior Rider
Join Date: Jan 2016
Location: charleston wv
Posts: 312
Received 6 Likes on 6 Posts
Default

Very nice did you build ac or buy it that way very clean looking setup

  #104
Old 05-13-2016, 08:32 PM
cggorman's Avatar
cggorman
cggorman is online now
Club Member
Thread Starter
Join Date: Jun 2014
Location: NW Ohio
Posts: 10,771
Received 1,954 Likes on 1,482 Posts
Default

I built the tube. The filter is a modified (dyed black) K&N. The tube has cam lock slots in it and I pressed pins into the carb that lock it together. The band clamp is extra security.

  #105
Old 05-13-2016, 08:57 PM
cggorman's Avatar
cggorman
cggorman is online now
Club Member
Thread Starter
Join Date: Jun 2014
Location: NW Ohio
Posts: 10,771
Received 1,954 Likes on 1,482 Posts
Default

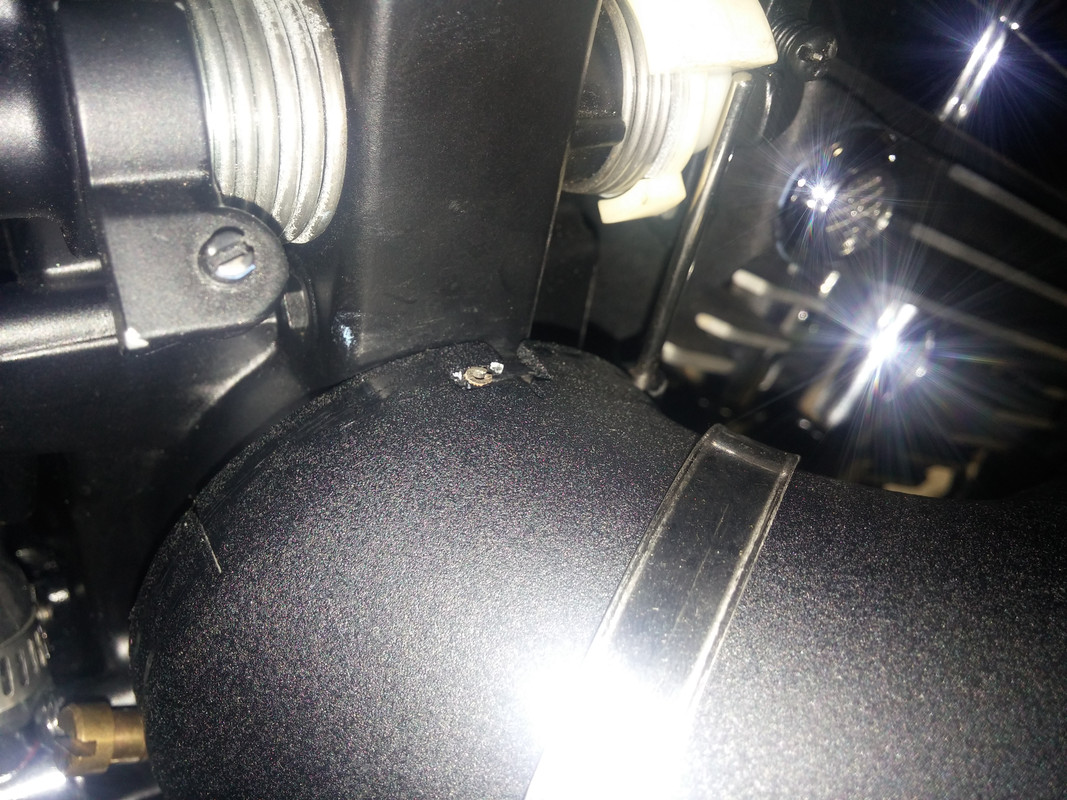

Kinda hard to see but here is the top lock and pin.



Last edited by cggorman; 09-07-2017 at 11:00 PM.
  #106
Old 05-13-2016, 09:14 PM
1999 Wide Glide's Avatar
1999 Wide Glide
1999 Wide Glide is offline
Senior Rider
Join Date: Oct 2013
Location: Delco, NC
Posts: 358
Received 1 Like on 1 Post
Default

Nice build. This is the beauty of the 99 FXDWG. It can be made into the exact bike any owner desires. I am excited to see where she winds up.

  #107
Old 05-13-2016, 10:16 PM
multihdrdr's Avatar
multihdrdr
multihdrdr is offline
Club Member
Join Date: Oct 2011
Location: Nor Cal
Posts: 8,222
Likes: 0
Received 1,169 Likes on 1,010 Posts
Default

Originally Posted by cggorman View Post
The paint on the induction tube is dry enough to install, so here it is...

I know this style AC is non traditional and certainly isn't for everyone, but for me it's form following function. I tried a couple other ACs and they all interfere badly with my knee. This one doesn't.



None of that bulky bracket and breather crap here!


Plus the bonus of Not hiding all that purdiful work you did on the mikuni



btw, while on the theme of making stuff, i just had to do some makin'
https://www.hdforums.com/forum/elect...l#post15143630

  #108
Old 05-14-2016, 11:19 AM
robbyville
robbyville is offline
Outstanding HDF Member
Join Date: May 2014
Location: Palm Desert,CA
Posts: 3,408
Received 130 Likes on 110 Posts
Default

Wow just read the whole thread from my post on the first page. For a guy who wasn't sure of his plan (or so you said at the time), this is turned into an incredibly cool build. Hats off to a craftsman and excellent family man!

Fwiw, neither my 9 yr old son nor wife enjoy helping me with my wrenching this has both reminded and inspired to find a summer project of some sort for my son and I to do together.

Thanks again for the great build, keep the pics coming, looking forward to a ride report soon!

  #109
Old 05-14-2016, 04:44 PM
cggorman's Avatar
cggorman
cggorman is online now
Club Member
Thread Starter
Join Date: Jun 2014
Location: NW Ohio
Posts: 10,771
Received 1,954 Likes on 1,482 Posts
Default

Thanks. My ex wife wasn't into this type of thing and neither is my oldest son (21). The older boy can't even change his oil. I offered to teach him something every time I went out to the garage but he always declined. He's more an artistic and gamer type. That's OK. We shared interests besides mechanical things.

  #110
Old 05-23-2016, 09:21 PM
cggorman's Avatar
cggorman
cggorman is online now
Club Member
Thread Starter
Join Date: Jun 2014
Location: NW Ohio
Posts: 10,771
Received 1,954 Likes on 1,482 Posts
Default

Not much happening worth pictures. Been plugging away at the final details that everybody hates.

- Installed plate mount for the final time.
- Installed shocks and tail lights/brackets.
- routed plug wires and terminated. Finished assembling electrical box innards.
- put oil in all three holes. No leaks.
- Installed the pipes and test fired. No start.
- Troubleshoot ignition. Found the coil triggers reversed. Fixed.
- test fire #2. Fired up fine. Adjusted idle screws and accelerator pump nozzle.
- adjusted throttle cables.
- idled up to operating temp. Readjusted idle speed.
- tested clutch and shifter on the jack. Good.
- tested rear brake on stand. Good. Burned the paint off the rotor.
- looked over the lighting wiring diagram and compared to Badlands illuminator diagram. Found several differences.
- built up all the Deutsch connectors for the lighting.
- tested lighting. No brake light.
- looked over pinouts and found two pin out of place. Fixed.
- tested lighting. License, Brakes F&R, turn L&R, run, hazard. All good.
- started fitting the front signals to the bars. Will finish that up tomorrow.

Nothing really worth pics.
