Thanks to Multihdrdr for doing some research and getting me kicked off on the right foot!

1st stab at axle spacers for my front end conversion. Just throw-aways from black iron right now. I'll make a set like the rears (aluminum with steel faces) once I'm sure I like the dimensions.

Thanks again, Multi! (not sure if you're comfortable with us using your first name).

Last edited by cggorman; Jan 26, 2020 at 05:07 PM.

Apr 25, 2017 | 03:46 PM

#512

cggorman

Thread Starter

Extreme HDF Member

Joined: Jun 2014

Posts: 11,448

Likes: 2,299

From: NW Ohio

Playing with numbers again... (posting so I can find it when I get home)

Thanks for the help, Multi! (hopefully we both get ~something~ out of this!)

Edit: Images deleted to avoid confusion, so here's a pretty lady on a Harley

Last edited by cggorman; Apr 27, 2017 at 09:26 AM.

Apr 26, 2017 | 09:49 PM

#513

bl_dg

Tourer

Joined: Jul 2012

Posts: 428

Likes: 21

From: Western PA

Thanks for the CAD work! I thought I was going nuts on my bike, too. The left and right caliper offsets are different. What the h*!!, HD.

.

Apr 26, 2017 | 10:06 PM

#514

cggorman

Thread Starter

Extreme HDF Member

Joined: Jun 2014

Posts: 11,448

Likes: 2,299

From: NW Ohio

Quote:

Originally Posted by bl_dg

Thanks for the CAD work! I thought I was going nuts on my bike, too. The left and right caliper offsets are different. What the h*!!, HD.

.

Yep. Those numbers are preliminary and may be unique to my bike, tho. Multihdrdr and I are seeing different results with regard to LH caliper location. For some season we haven't yet determined my left caliper isn't where it belongs. It seems to be about .060 too far outboard. Not sure why yet.

Apr 27, 2017 | 05:32 AM

#515

Tall Timber

Road Warrior

Joined: Aug 2012

Posts: 1,363

Likes: 427

From: Yarra Ranges, Victoria, Australia

Making some good progress.

I saw this today, thought of you.

Apr 27, 2017 | 08:26 AM

#516

cggorman

Thread Starter

Extreme HDF Member

Joined: Jun 2014

Posts: 11,448

Likes: 2,299

From: NW Ohio

Quote:

Originally Posted by Tall Timber

Making some good progress.

I saw this today, thought of you.

Workin' on it! Trying to get the last few details figured out. I'll have plenty of free time in June/July to wrench. Should have a bike to ride by mid summer. Hopefully.

Apr 27, 2017 | 09:06 AM

#517

cggorman

Thread Starter

Extreme HDF Member

Joined: Jun 2014

Posts: 11,448

Likes: 2,299

From: NW Ohio

OK... I think I'm finally satisfied with my measurements. They all seem to jive with Multihdrdr's except the lateral caliper offset from the slider centerline. Both seem to be about .060 (.0625?) to the left of where we think they ~should~ be. Hmm...

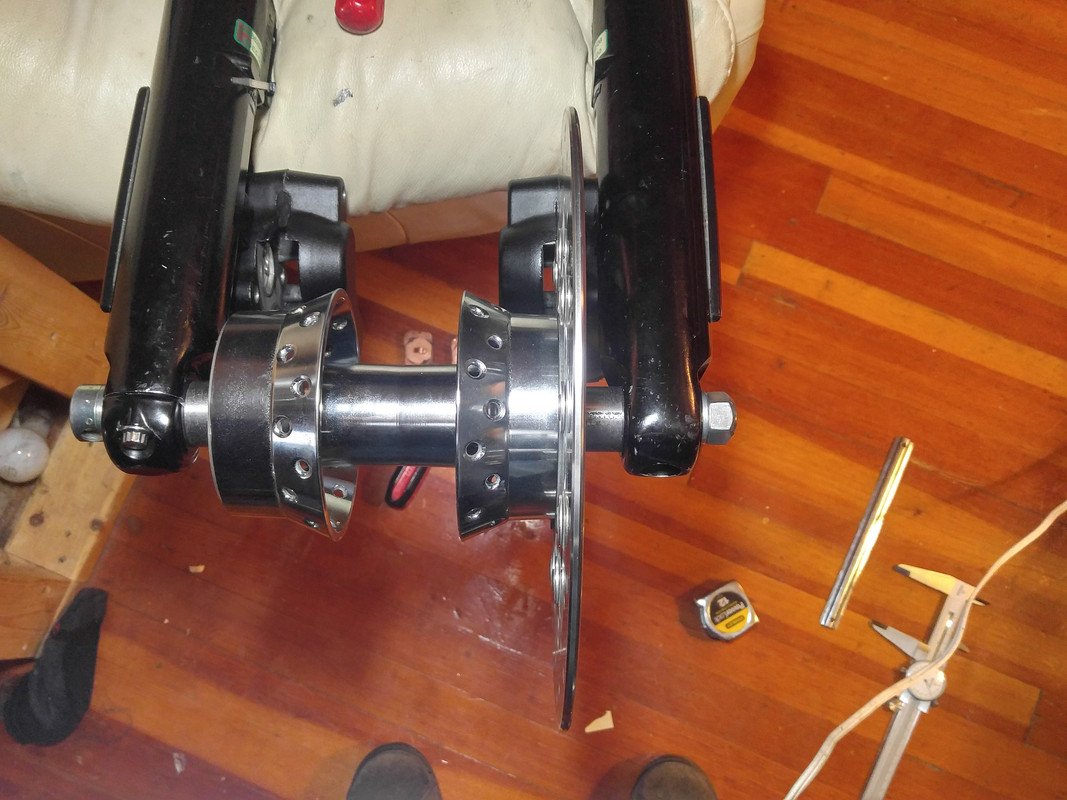

Anyway, for those curious and for my reference later. This centers the tire/rim in the forks so I don't need to offset the rim when I lace it and it sets the rotors in the centers of the calipers Custom spacers and hub required.

photobucket ******** killed my pics

Last edited by cggorman; Sep 8, 2017 at 01:05 AM.
