Hey guys !
new here, just got my first Harley last year.

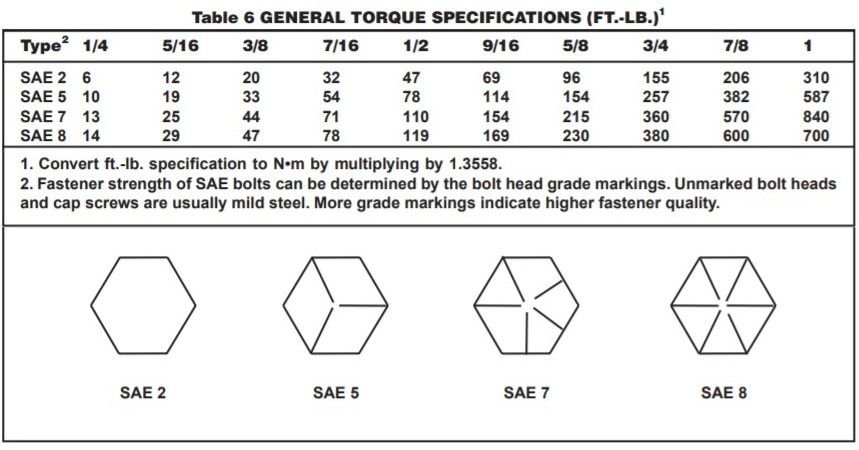

Anyways I had to pull the motor due to a broken motor mount(mount on the case). I'm just getting to throwing it back into the bike and was looking for basic torque specs on the usual things if you guys have any links or anything.

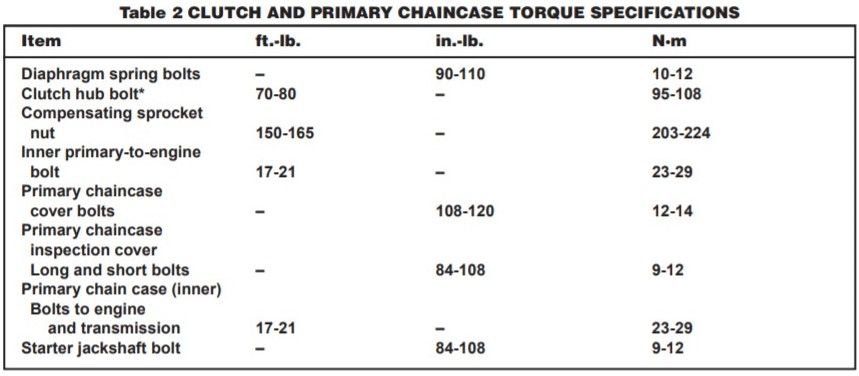

Trans bolts, front motor mount bolts, 2 primary nuts, case bolts etc.
Thanks in advance !
Last edited by Dynawheelieboy; Mar 31, 2020 at 09:05 PM.
Theres a Clymer manual on ebay right now for $26. Dont listen tot the BS on here, Clymer manuals are just as good as an "Officialy Authorized Harley Davidson Trademarked Way Over Priced Cool Guy" manual.
I'm the very last guy to say get the shop manual. But, R&Ring an engine is as good a time as any to have one on hand. This is the internet, you can't get two people to agree that it's light out during the day (there's always Alaska). Using an internet forum for critical info like that is asking to be disappointed.
No after market manual matches the detail and quality of an HD Service manual.
Last edited by Campy Roadie; Apr 2, 2020 at 07:05 AM.
I'm the very last guy to say get the shop manual. But, R&Ring an engine is as good a time as any to have one on hand. This is the internet, you can't get two people to agree that it's light out during the day (there's always Alaska). Using an internet forum for critical info like that is asking to be disappointed.
No after market manual matches the detail and quality of an HD Service manual.
Sorry I disagree. I always use BOTH manuals and they are damn near the same. Maybe one has a better pix or diagram than the other. Also, if you are doing major work, having a Clymer is better than not having a "Officially Authorized Trademarked Harley Davidson Branded Cool Guy Over Priced Manual". Im done here.
Sorry I disagree. I always use BOTH manuals and they are damn near the same. Maybe one has a better pix or diagram than the other. Also, if you are doing major work, having a Clymer is better than not having a "Officially Authorized Trademarked Harley Davidson Branded Cool Guy Over Priced Manual". Im done here.
this isn't an airport, no need to announce your departure
WS6 Formula
Outstanding HDF Member
Join Date: Mar 2006
Location: From Long Island, now in So. Cal
Posts: 2,954
Get a Manual Posts: 0 Likes: 21
Received 105 Likes on 76 Posts
