Jack "Adapter" to Clear Underslung Oil Cooler
Hi all,

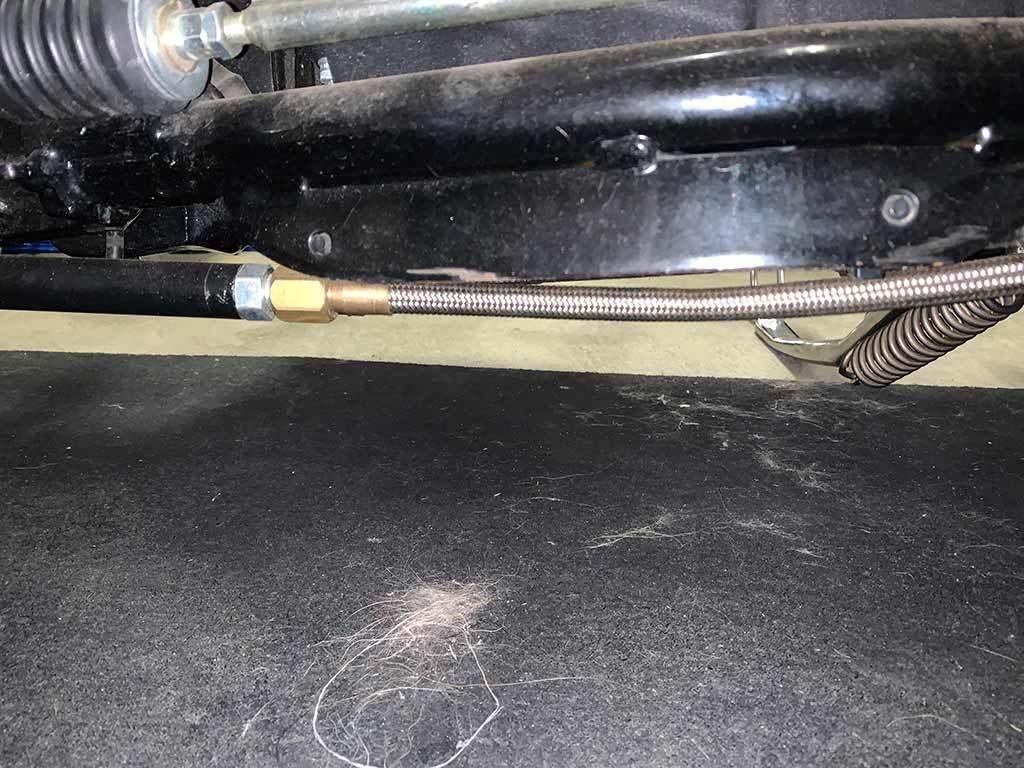

I have an undermounted oil cooler that basically sits between the frame rails under the engine. One of the hoses for the system protrudes just a bit under the "tab" welded to the right side frame rail. I'm looking for some kind of adapter or "pads" that I can fit on top of some jack rails that might add some clearance between the frame rails and jack rails so as to not compress that hose. I've seen the Dyna pads offered by Harley official (Dyna Twin Cam Lift Adapter Kit). Maybe those would work?
Thanks,
Chris
I have an undermounted oil cooler that basically sits between the frame rails under the engine. One of the hoses for the system protrudes just a bit under the "tab" welded to the right side frame rail. I'm looking for some kind of adapter or "pads" that I can fit on top of some jack rails that might add some clearance between the frame rails and jack rails so as to not compress that hose. I've seen the Dyna pads offered by Harley official (Dyna Twin Cam Lift Adapter Kit). Maybe those would work?
Thanks,
Chris
Outstanding HDF Member
Joined: Mar 2015
Posts: 2,840
Likes: 900
From: Philly Suburbs
I don't think the HD frame blocks will work, as they basically bring the other three lift locations down to the depth of that tab. None of them sit under the tab itself. can't that line just be tucked out of the way while lifting? What sort of jack are you using? The answer may be different for different jacks...
But aside from your actual question... I'm not really understanding the oil cooler setup. Where is the cooler itself? I'm having a hard time picturing a system that doesn't place the cooler in an area of obvious airflow... Or maybe I'm just not understanding something.
But aside from your actual question... I'm not really understanding the oil cooler setup. Where is the cooler itself? I'm having a hard time picturing a system that doesn't place the cooler in an area of obvious airflow... Or maybe I'm just not understanding something.
Seasoned HDF Member
Joined: Aug 2006
Posts: 24,528
Likes: 30,847
From: Pennsylvania
I use Hockey Pucks to get the clearance I need for my pipes when lifting my Sporster. Old hockey pucks are great as you can move them to wherever you need them to give you an inch of clearance.
Thread Starter
|
Intermediate
Joined: May 2017
Posts: 49
Likes: 0
From: Austin, TX
Chris
Trending Topics
Thread Starter
|
Intermediate
Joined: May 2017
Posts: 49
Likes: 0
From: Austin, TX
The cooler coils are under the engine. There is a front section and a rear section, connected by hoses. It's an aircraft cooler element technology adapted for the Dyna. Not the most elegant installation/design, and I had to tweak it a bit, but it's not obtrusive and has a good theoretic cooling capability.
Chris
Chris
