03 compensator
Thread Starter
|
Road Captain
Joined: Mar 2005
Posts: 567
Likes: 11
From: San Diego

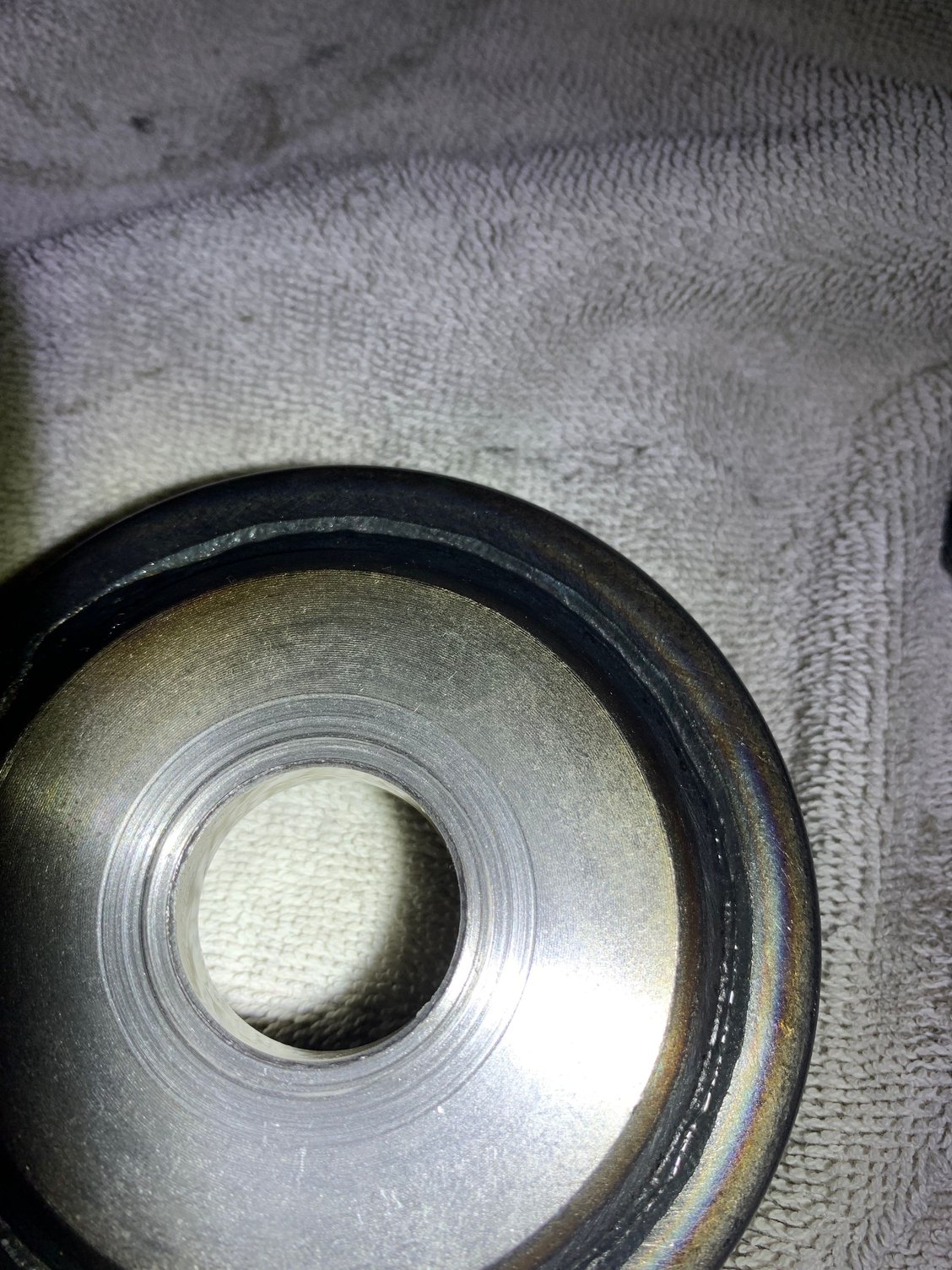

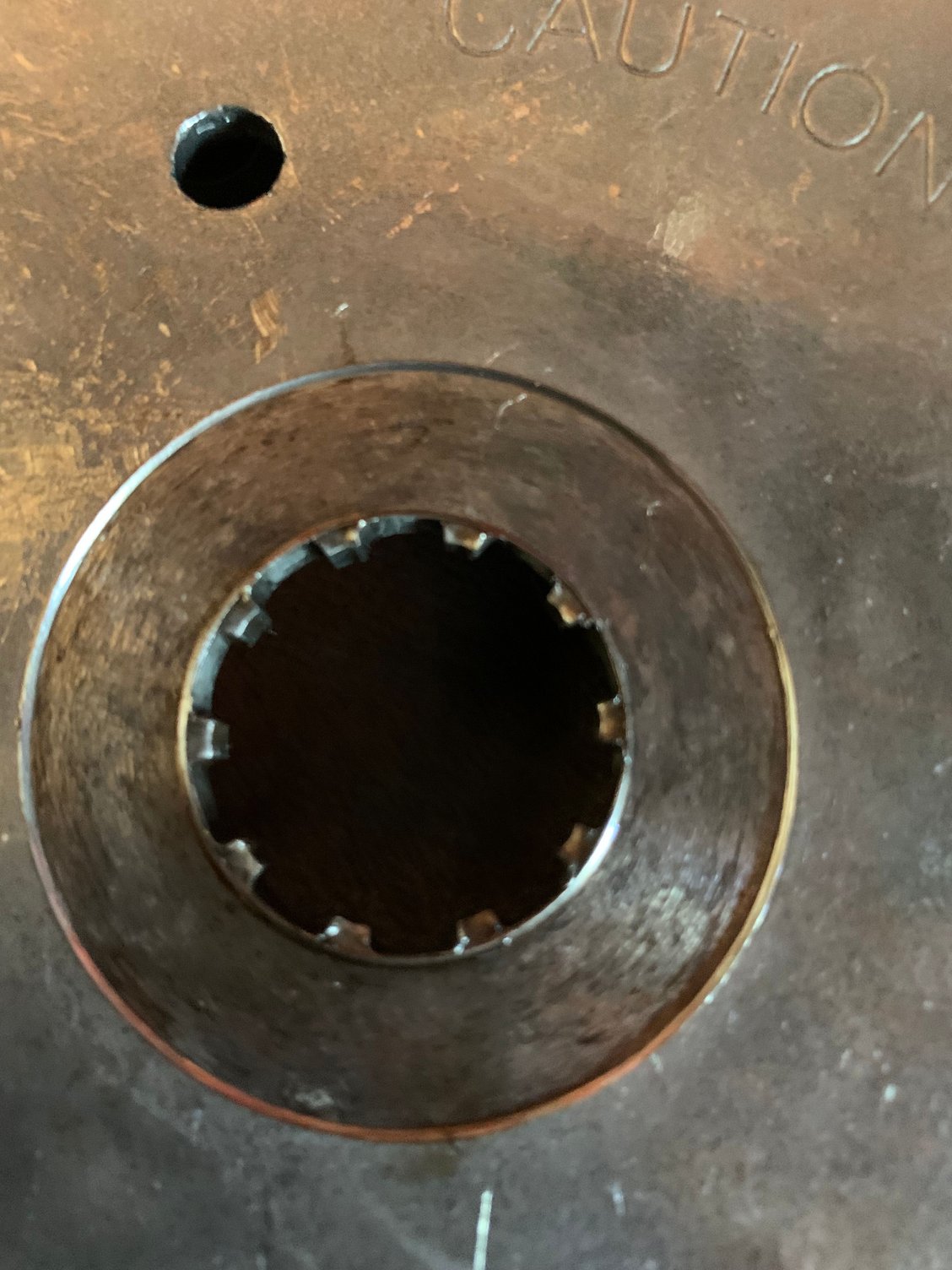

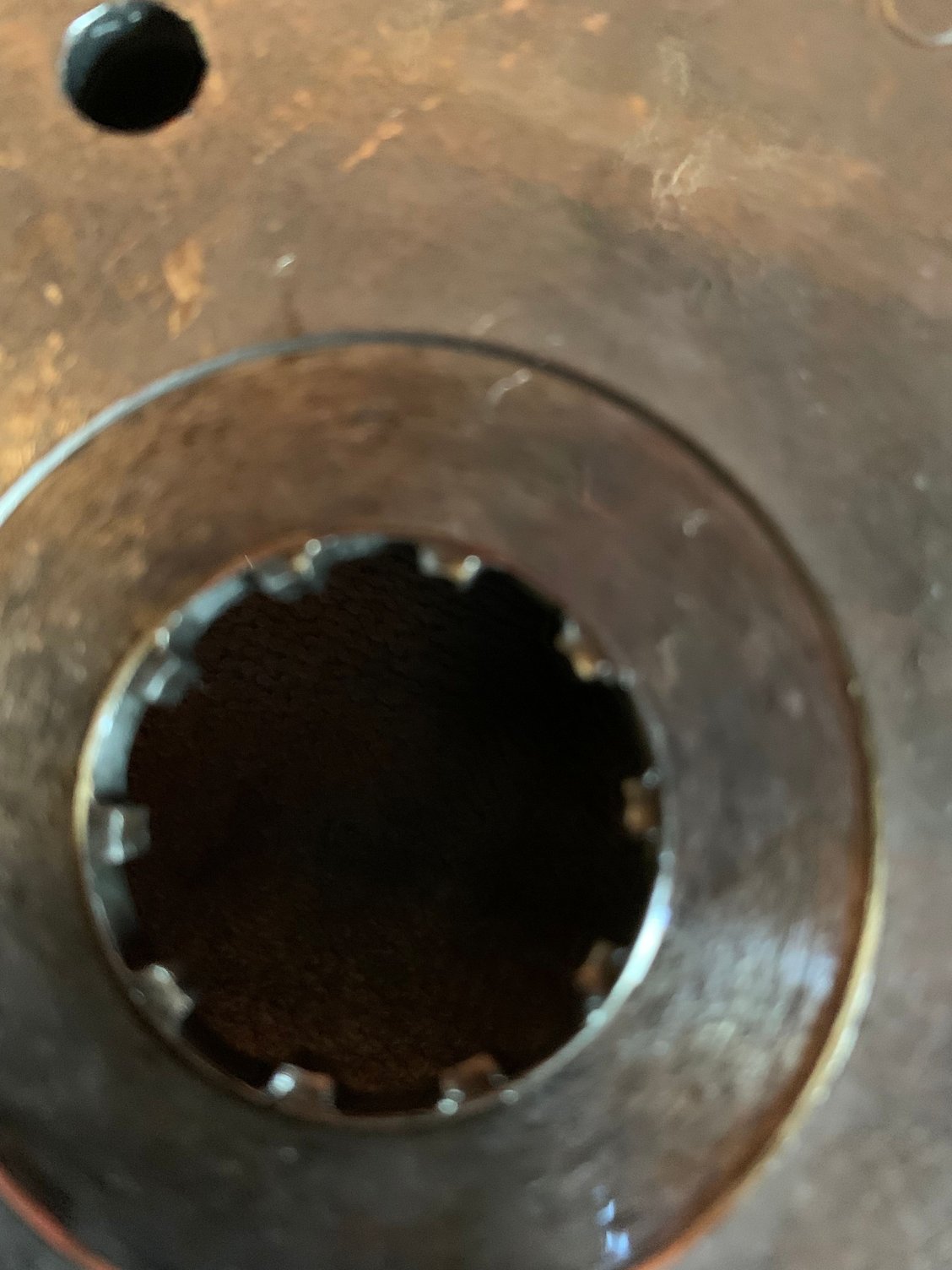

I've pulled everything off and the only things I have found are 1: the teeth on the rotor are chewed up and there is partial teeth missing or raised metal and 2: the cover on the compensator has some deep grooves where the spacer is against it. Also with it off I can shake it and the internals are moving. I'm going to replace the rotor. I don't if the play on the cover is normal. There are no limits in the manual. Also the drive belt is a little bit loose. I still don't know if the rotor could've made all that noise
Seasoned HDF Member
Joined: Mar 2010
Posts: 38,300
Likes: 6,325
From: Honah Lee
I've pulled everything off and the only things I have found are 1: the teeth on the rotor are chewed up and there is partial teeth missing or raised metal and 2: the cover on the compensator has some deep grooves where the spacer is against it. Also with it off I can shake it and the internals are moving. I'm going to replace the rotor. I don't if the play on the cover is normal. There are no limits in the manual. Also the drive belt is a little bit loose. I still don't know if the rotor could've made all that noise
My alternator rotor stripped and the magnets were all that was driving it. It wore a face groove on it. This allowed the front to rear sprockets we're out of alignment. Chain started nipping on top of teeth.
Caused a ratchet sound in slow hard left hand turns.
The new one had a little back and forth rock which can tend to loosen the comp nut.

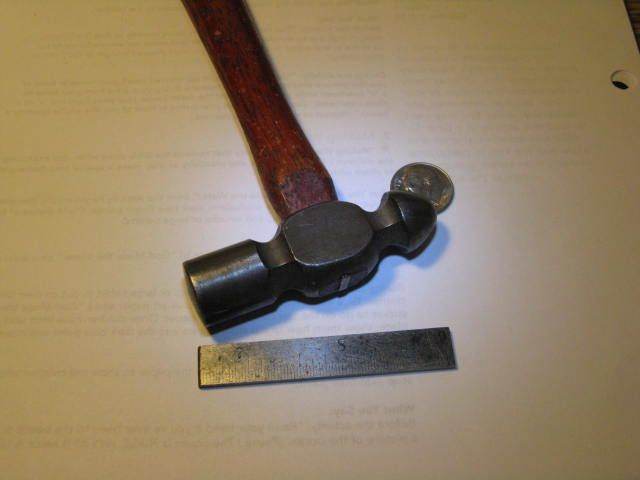

The OD of spline centers. That was still good. I took a small toolmaker ballpeen hammer and rolled some metal out on crank spline to fit rotor.
Only way to fix it short of a new crank. This is very common. Why Harley went to a serration a few years later.
Last edited by Jackie Paper; Jan 23, 2022 at 06:06 PM.
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,830
Likes: 7,968
From: poway
It ran loose. You need to trim about 0.060 off the sleeve part of the nut and replace the rotor.. The spring stack in the cover can be loose. Just make sure that the cover is not chewed up.
Thread Starter
|
Road Captain
Joined: Mar 2005
Posts: 567
Likes: 11
From: San Diego
Thank you. The cover just has a little groove where the washer sits, other than that it is fine. I guess that could explain all the strange noise and why it suddenly screeched and stopped making noise. not bad for a stock part with 68,000 miles and 19 years old. Thanks to everyone who responded everything was very helpful!
Seasoned HDF Member
Joined: Dec 2005
Posts: 19,830
Likes: 7,968
From: poway
2003s were notorious for not having enough clamping pressure on the comp / rotor stack. Trim the nut and torque to the new spec.
