Indicator wiring

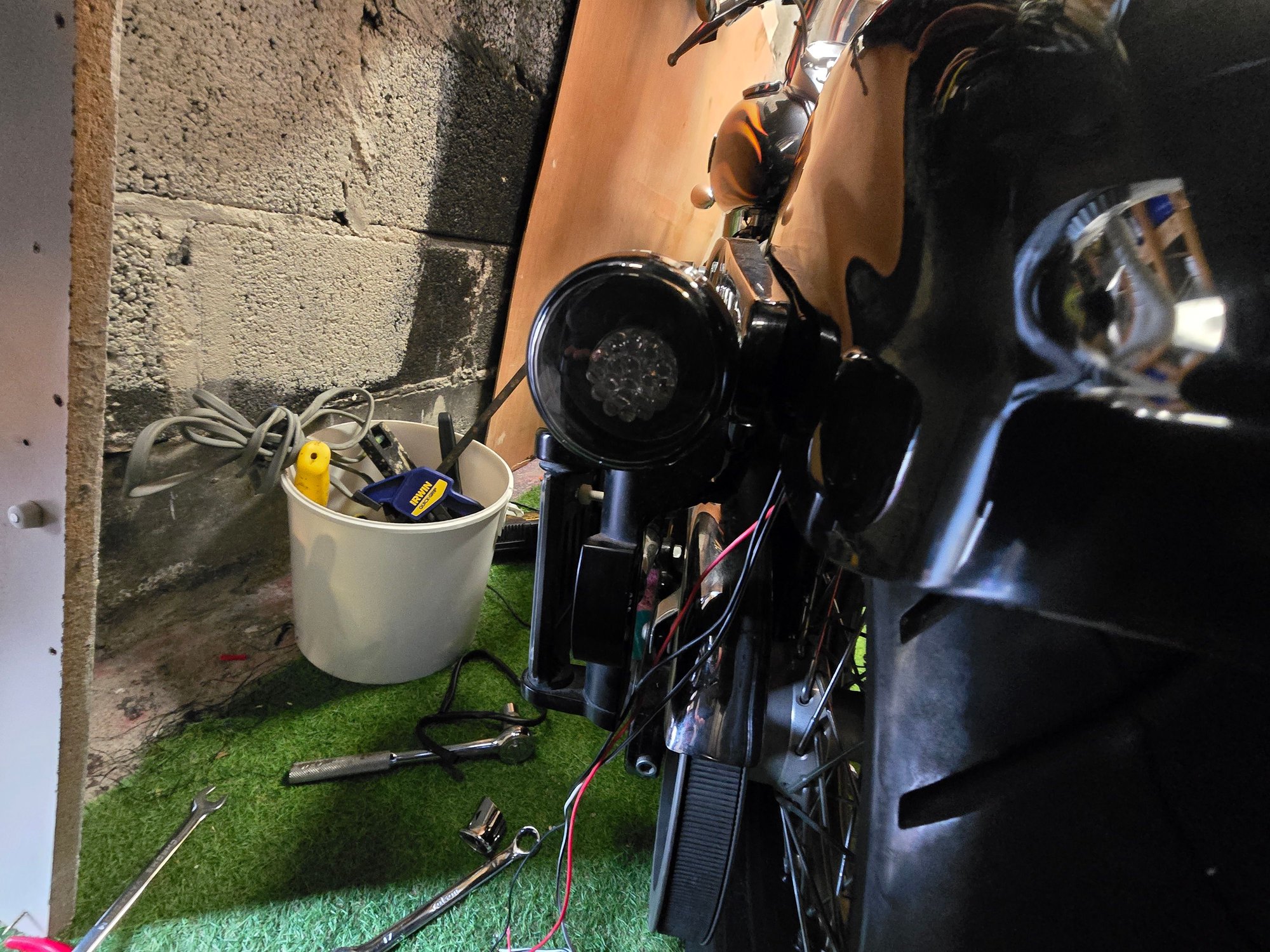

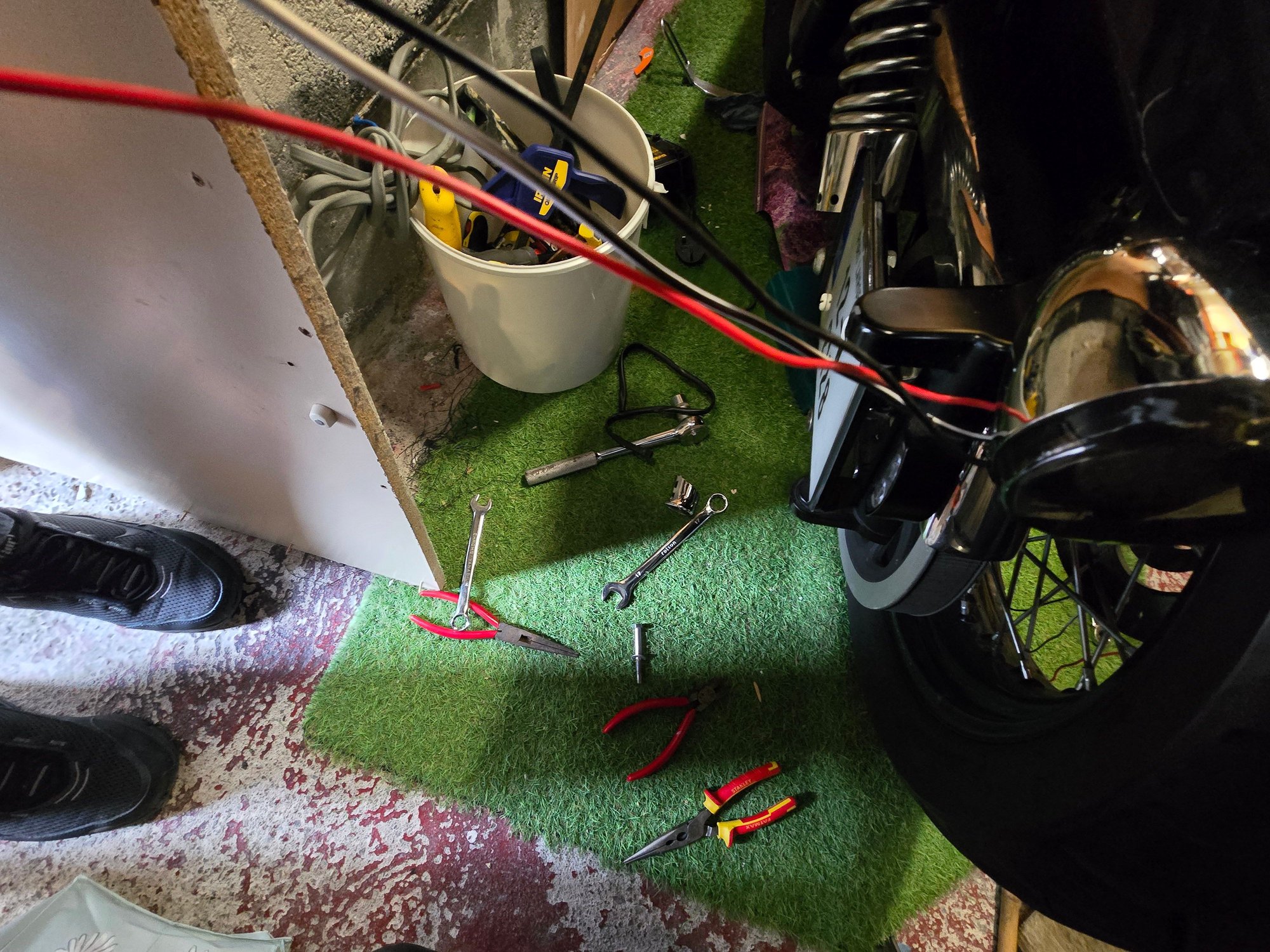

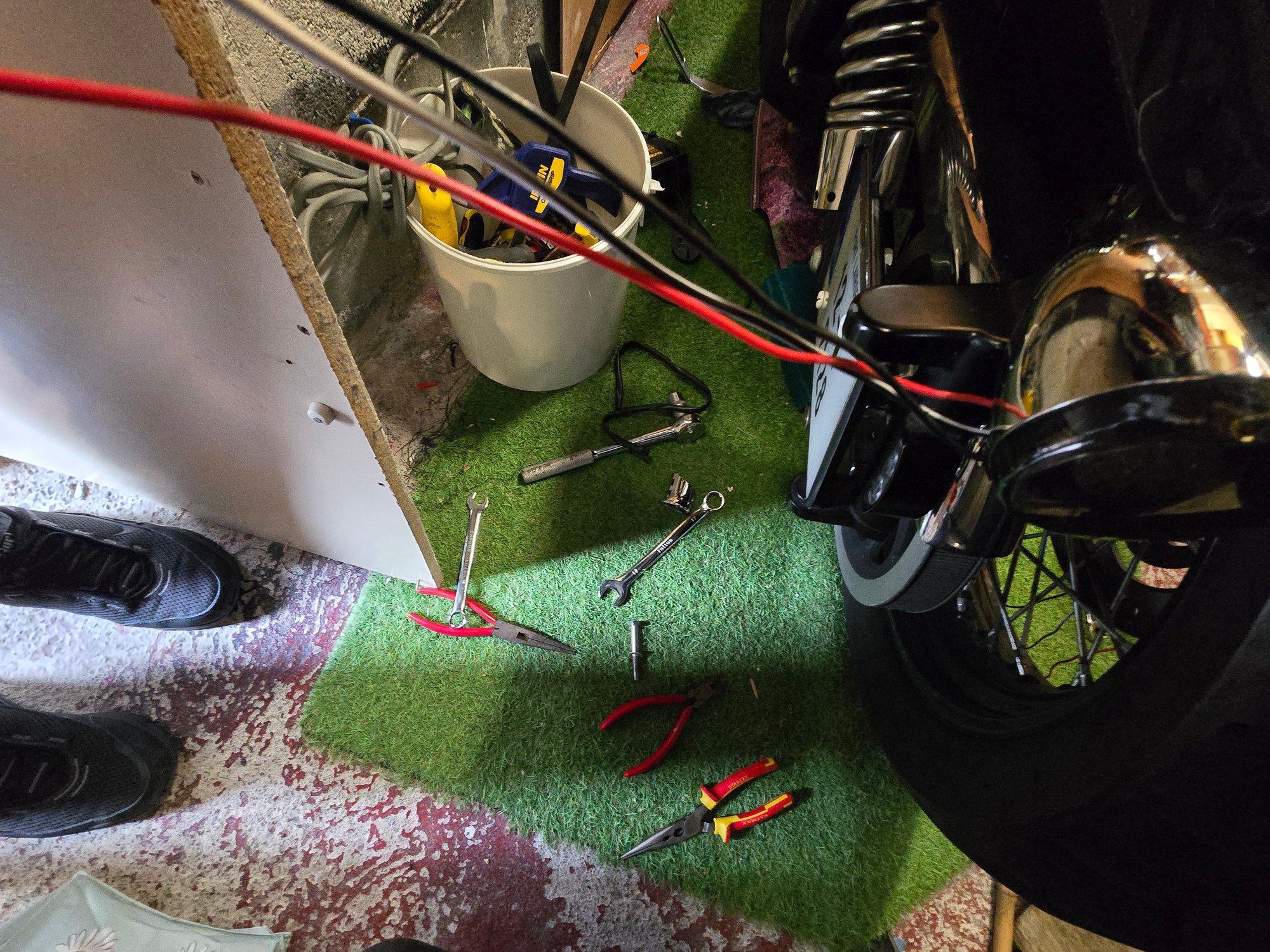

Replacing indicators the original colour codes are blue,black,purple and the new indicators wiring colours are red,black,black/white the indicators are my running lights brake lights and indicators lights could someone help me with the connections of the colouring wires please.
HDF Community Team
Joined: Jun 2008
Posts: 4,758
Likes: 953
From: Out West
County Kerry is a beautiful place! We'd love to see it, be a chum and post us some pics of what it looks like round your county, pics of your bike about town, pubs, critters, weeds, ringforts, what have you, we will look at everything
Trending Topics
Seasoned HDF Member
Joined: Sep 2017
Posts: 12,233
Likes: 4,943
From: England
On the dyna the black is ground, blue is running light and purple is indicator / brake light. On the bike somewhere is a convertor module for the indicator and brake function.
Except where I am in the UK red cannot be used for the indicator and so the rear lights contain 3 separate LED lights.
For the new lights just use an old battery to check what is what.
Except where I am in the UK red cannot be used for the indicator and so the rear lights contain 3 separate LED lights.
For the new lights just use an old battery to check what is what.
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
7 Surprising Harley-Davidson Products that Are Not Motorcycles
Verdad Gallardo
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Seasoned HDF Member
Joined: May 2008
Posts: 21,143
Likes: 12,707
From: South Carolina
It looks like you are expecting the new signal units to also work as brake lights, on some years this is possible, on other years a separate module is needed.
Does the bike have an aftermarket module for brake, turn, run ?
We must know the year of the machine so we can look at the wiring diagram and understand the circuit.

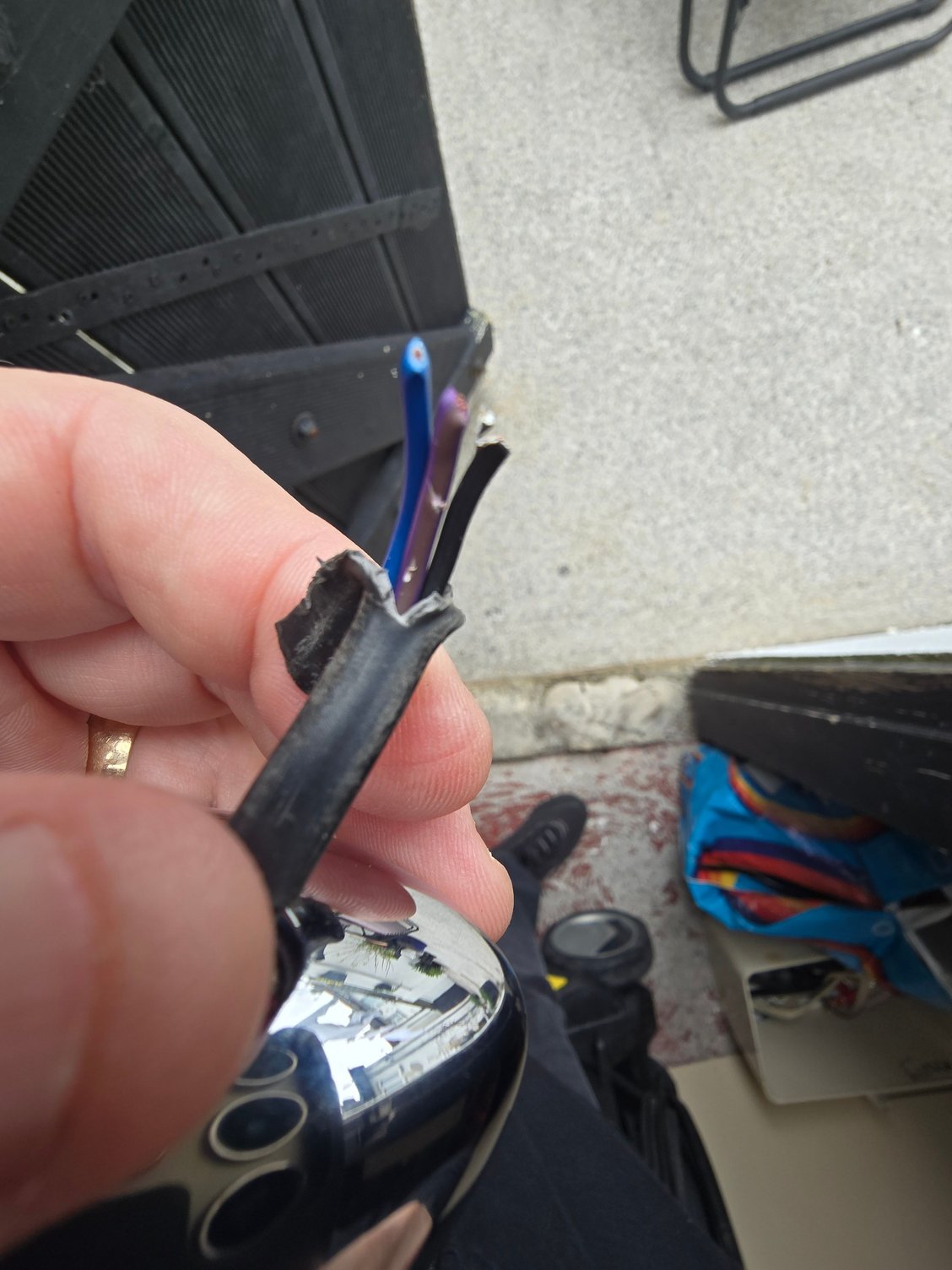

On the wires in your pic, black is ground, blue is running lights, violet is left turn signal, brown is right turn signal, there is no brake light wire in the pic.
Does the bike have an aftermarket module for brake, turn, run ?
We must know the year of the machine so we can look at the wiring diagram and understand the circuit.
On the wires in your pic, black is ground, blue is running lights, violet is left turn signal, brown is right turn signal, there is no brake light wire in the pic.
Last edited by Dan89FLSTC; Apr 2, 2025 at 02:56 PM.
