Default Pics from 103 build
This was my first time doing any real motor work to my bob. I installed SE 103c.i. cylinders, flat top pistons and Andrews 37H cams.

Here are some pics of the process.

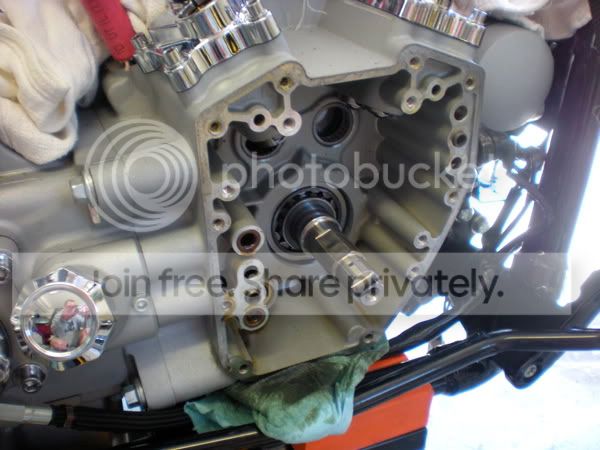

cam chest




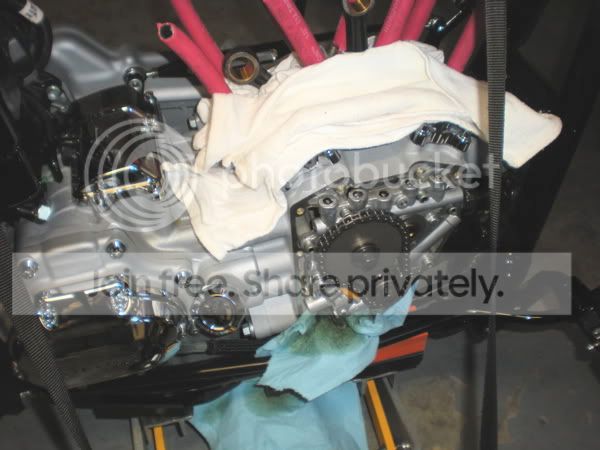

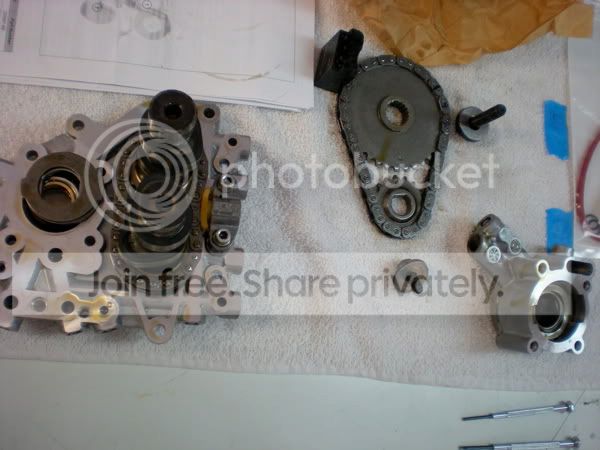

stock cams, chain drive


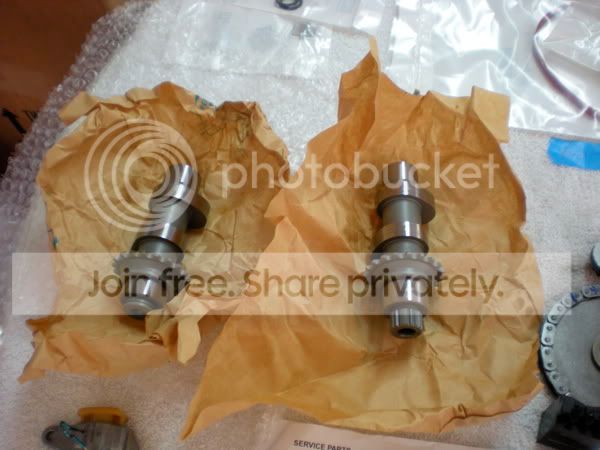

New Andrews 37H chain drive cams.


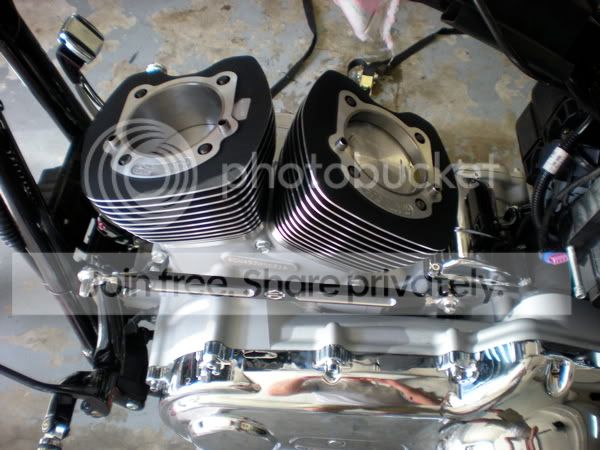

New cylinders and pistons installed


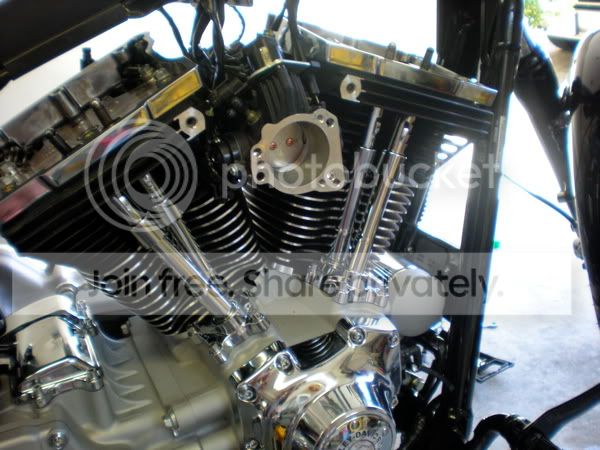

lower rockers, push rods installed


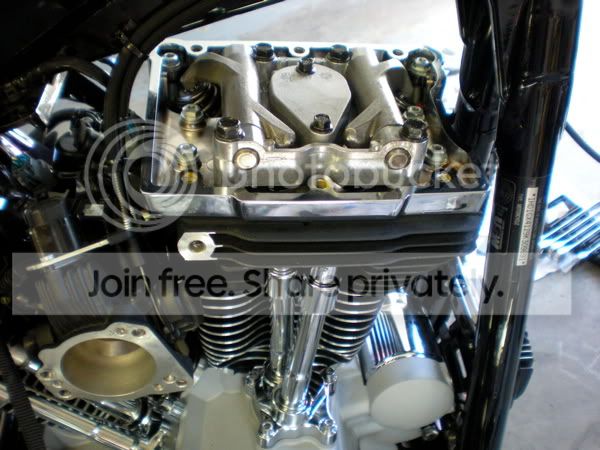

Rocker arms and breathers


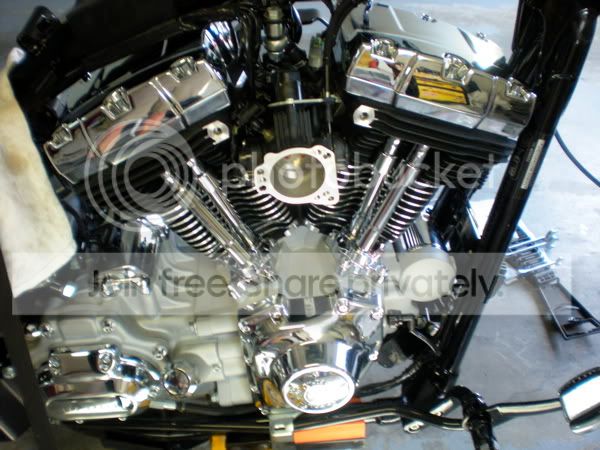

Just need to install Air cleaner


Over all the install went smooth, now I just need to put some miles on her then get it dyno tuned.
