Vibra-Technics Dyna mount?

Reply Subscribe

Thread Tools

Search this Thread

Apr 28, 2014 | 05:39 PM

snatchcat

Thread Starter

Road Captain

Joined: Feb 2014

Posts: 607

Likes: 243

From: Arizona

Vibra-Technics Dyna mount?

If anyone has taken pics of it all disassembled I'd really like to see them posted... thanks!

Apr 28, 2014 | 05:48 PM

br549A1

Outstanding HDF Member

Joined: Nov 2013

Posts: 2,358

Likes: 34

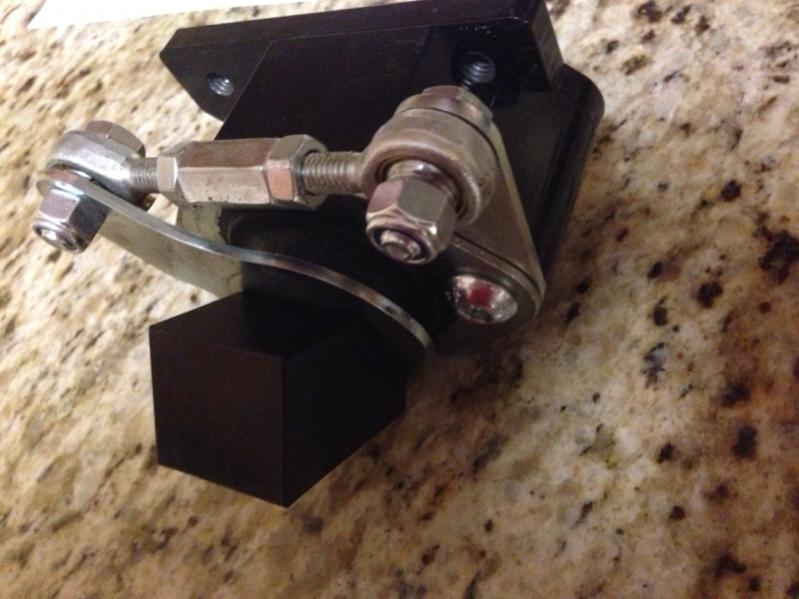

Not sure anyone would take it apart. There's a stabilizer on the back no one is going to mess with. I took a picture of mine next to the old mount.

Attached Thumbnails

Vibra-Technics Dyna mount?-image-892130140.jpg

Apr 28, 2014 | 06:08 PM

snatchcat

Thread Starter

Road Captain

Joined: Feb 2014

Posts: 607

Likes: 243

From: Arizona

haha, unless they're something like me... what would be the first thing I did because the curiosity would be/is killing me!!... thanks for posting the side by side tho!

Apr 28, 2014 | 06:13 PM

br549A1

Outstanding HDF Member

Joined: Nov 2013

Posts: 2,358

Likes: 34

If you want pics from a diff angle mounted let me know. I have the evo mount but it's similar. Same basic design just a diff top plate and you can see the washer and bolt. On the tc version it's enclosed

This is the side you can see the stabilizer

Attached Thumbnails

Vibra-Technics Dyna mount?-image-196887023.jpg

Last edited by br549A1; Apr 28, 2014 at 06:21 PM.

Apr 28, 2014 | 06:28 PM

snatchcat

Thread Starter

Road Captain

Joined: Feb 2014

Posts: 607

Likes: 243

From: Arizona

Quote:

Originally Posted by kp877

Yeah, I'm pretty much aware of all the different H-D mounts up close and personal except for the newer streetglides that are apparently using two up front. I like to know if the actual Vibra-Technics has a one or two piece isolator (rubber) and by knowing the design I could tell how much fore/aft movement it's helping to prevent, few other things. I built a custom sportster frame and mounted the motor using Dyna mounts back in 89. I recall when the original Dyna first appeared reading the factory write-up claiming the mounts were adapted from helicopter rotor blade anti-vibe technology? I've never verified it tho, just a FYI...

Apr 28, 2014 | 07:27 PM

br549A1

Outstanding HDF Member

Joined: Nov 2013

Posts: 2,358

Likes: 34

I can't say exactly how much movement it allows, I bet if you emailed them they'd give you all the jnfo you need. They are very good to communicate with and knowledgeable.

Apr 28, 2014 | 07:41 PM

snatchcat

Thread Starter

Road Captain

Joined: Feb 2014

Posts: 607

Likes: 243

From: Arizona

Quote:

Originally Posted by kp877

I can't say exactly how much movement it allows, I bet if you emailed them they'd give you all the jnfo you need. They are very good to communicate with and knowledgeable.

I will probably end up doing that at some point, just asking here in case...

this Vibra-Technics mount most closely resembles the front mount in my 04 Buell XB12S, but the Buell's is in tension and will come apart with age and/or if you are a wheelie addict, the V-B is in compression so shouldn't be a problem there, but doesn't seem to have as much fore/aft control (from what I can see) as compared to my Buell, and the Buell has no locating linkage in the vicinity of the mount either... just mostly really curious about how it all goes together.

8 Best Harley-Davidson Motorcycles Ever

Pouria Savadkouei

10 Worst Harley-Davidson Motorcycles Ever

Pouria Savadkouei

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

Verdad Gallardo

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

Verdad Gallardo

Harley-Davidson Reveals Super Cool Cafe Racer Concept

Verdad Gallardo

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

Verdad Gallardo

10 Motorcycles You Should Never Buy

Joe Kucinski

10 Things Harley-Davidson Needs to Fix in 2026

Verdad Gallardo

Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider

Verdad Gallardo

The Best and Worst Harley-Davidson Moves of 2025

Verdad Gallardo

Apr 28, 2014 | 08:27 PM

snatchcat

Thread Starter

Road Captain

Joined: Feb 2014

Posts: 607

Likes: 243

From: Arizona

Quote:

Originally Posted by mattVA

Everything you want to know can be found here: http://www.harley-davidson-hangout.c...velopment.html

Including the pictures you wanted to see

thanks Matt, exactly what I wanted to see, and now I do believe that it contributes significantly to stopping fore/aft movement of the powertrain, on par with the original mount I would guess... my only question now is... what is stopping that lower link plate from turning? and I also see it would be easy to mod for a longer locating link if one so wanted (less swing arc)
