Default Starter Jackshaft
I have a starter jackshaft from a 1989 electraglide
i noticed the coupler that slided onto the starter shaft and the end of jackshaft does not have an offeset, the snap clip inside is same distance from either end (in centre)
also when assembling where does the spring go?
mine doesnt seem to sit right

Reply
0
Old Jul 1, 2025 | 09:00 PM
Share
  #2
GalvTexGuy's Avatar
GalvTexGuy
Seasoned HDF Member
Veteran: Navy
10 Year Member
Joined: Apr 2015
Posts: 10,001
Likes: 5,266
Default


Last edited by GalvTexGuy; Jul 1, 2025 at 09:02 PM.
Reply
0
Old Jul 2, 2025 | 07:09 PM
Share
  #3
tinymike66's Avatar
tinymike66
Thread Starter
|
Tourer
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2011
Posts: 373
Likes: 27
From: Ontario
Default
Originally Posted by GalvTexGuy

ok, so thats how i been installing it.
issue is it doesnt sit in the coupling it sticks out past the clutch sprocket.
i cant figure it out

Reply
0
Old Jul 2, 2025 | 07:47 PM
Share
  #4
Tommy C's Avatar
Tommy C
Seasoned HDF Member
10 Year Member
Joined: Oct 2015
Posts: 13,404
Likes: 34,326
From: Pine Flat Dam/South Bay Area, CA
Default
Originally Posted by tinymike66
ok, so thats how i been installing it.
issue is it doesnt sit in the coupling it sticks out past the clutch sprocket.
i cant figure it out
Do you have #11 in the diagram installed backwards?

Reply
0
Old Jul 3, 2025 | 11:23 AM
Share
  #5
tinymike66's Avatar
tinymike66
Thread Starter
|
Tourer
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2011
Posts: 373
Likes: 27
From: Ontario
Default
Originally Posted by Tommy C
Do you have #11 in the diagram installed backwards?
#11 supposed to be offset too....but I measured it and the snap ring is centre
same distance drom both sidss

Reply
0
Old Jul 5, 2025 | 12:15 PM
Share
  #6
tinymike66's Avatar
tinymike66
Thread Starter
|
Tourer
10 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2011
Posts: 373
Likes: 27
From: Ontario
Default

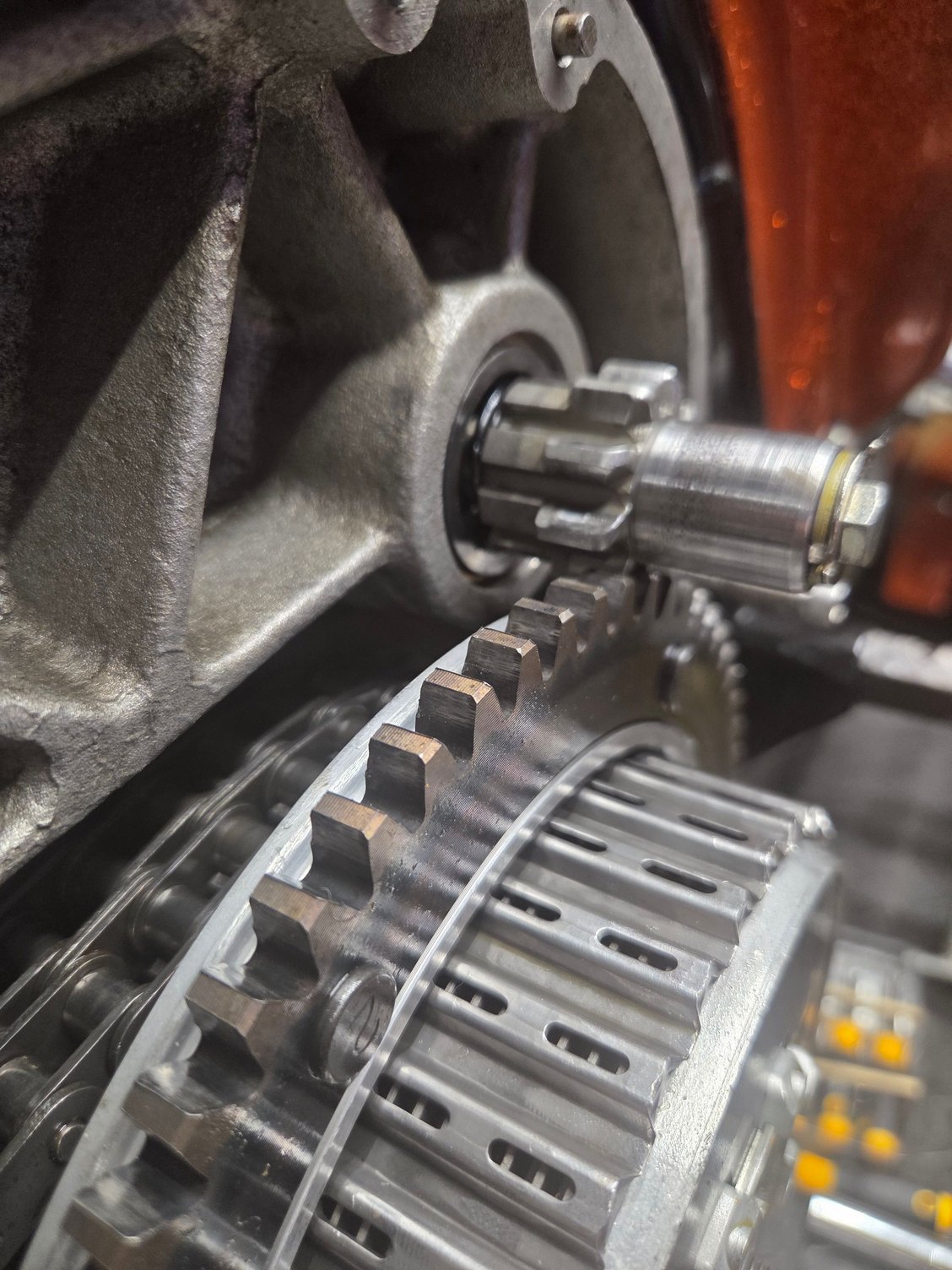

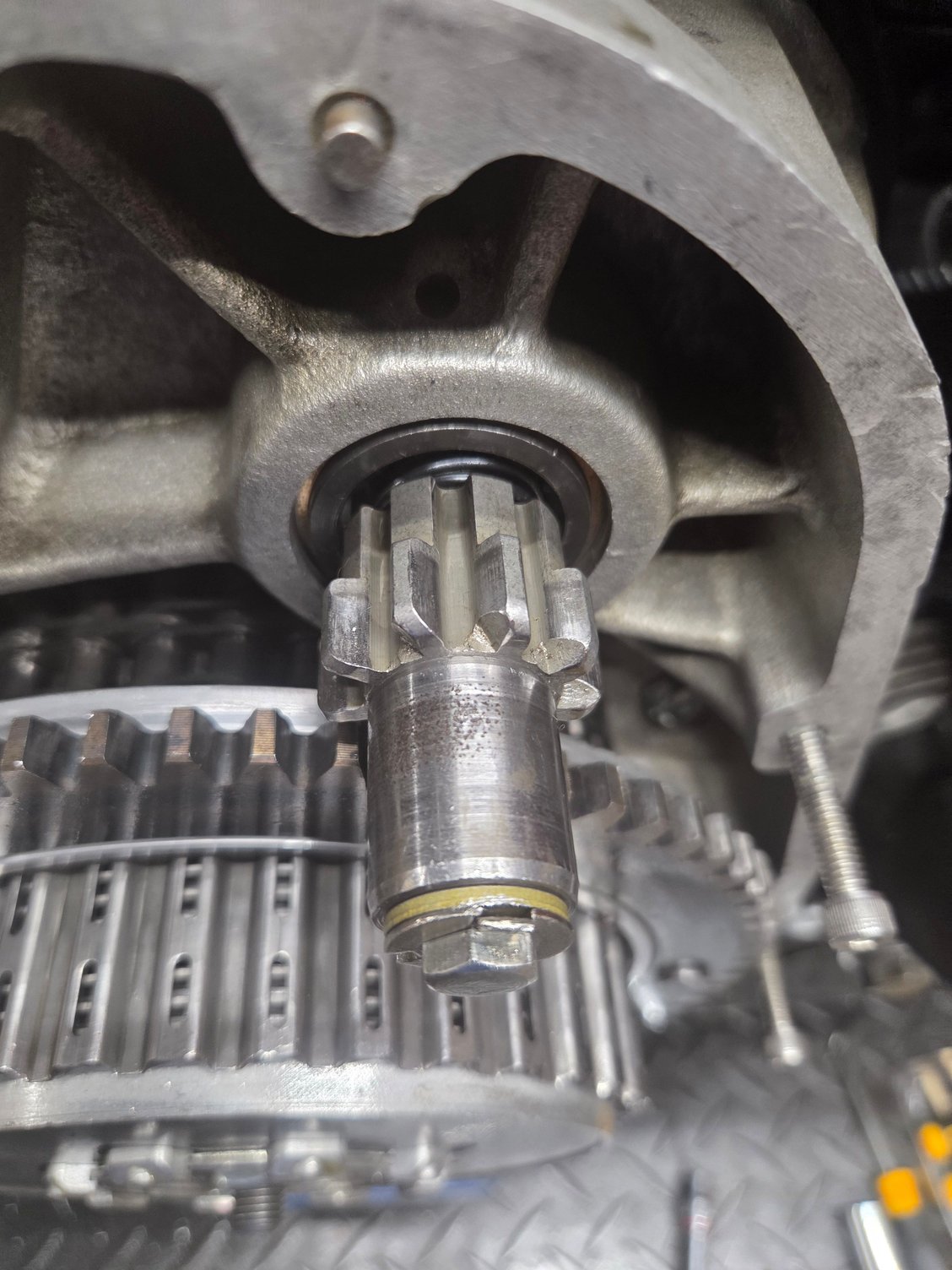

Assembkes as per the HD repair manual
but it sticks out
Isn't the pinion gear supposed to be in the collet and clear of the clutch sprocket?



Reply
0
Old Jul 5, 2025 | 01:48 PM
Share
  #7
jbarr1's Avatar
jbarr1
Road Master
10 Year Member
Liked
Joined: Nov 2015
Posts: 1,229
Likes: 380
From: georgia
Default
I believe the spring is possibly on the wrong side of coupling #8. Drawing is wrong.
https://empirecycleparts.com/categor...ers-89-93.html

Last edited by jbarr1; Jul 5, 2025 at 01:50 PM.
Reply
0

Trending Topics

Old Jul 5, 2025 | 05:46 PM
Share
  #8
Dan89FLSTC's Avatar
Dan89FLSTC
Seasoned HDF Member
Veteran: Navy
Active Streak: 30 Days
Top Answer: 3
Top Answer: 5
Joined: May 2008
Posts: 21,031
Likes: 12,551
From: South Carolina
Default
The pinion gear in the pic is way out of position.

Keep in mind, the 1989 Jackshaft assembly is not the same as `90 or later, it is a one year only assembly.
