Someone PLEASE help
Supporter
Joined: Oct 2009
Posts: 2,056
Likes: 248
From: Milton Mills NH
You are coming up on compression with an intake valve open. Take a break. You are over thinking the problem.
Thread Starter
|
Intermediate
Joined: May 2017
Posts: 33
Likes: 0
From: Illinois
I'm going to pull the cam cover off of it again tonight when I get home from work. I checked it on Saturday and the #1 was nowhere near tdc with the cam marks lined up. I stepped away from it for the last two days now it's really eating at me.
Cruiser
Joined: Feb 2017
Posts: 137
Likes: 5
From: il
heres my 2 cents, a long time ago when I was workin on my 1972 sportster I learned the fly wheel had 2 marks on em and if ya wasn't knowin whitch one you was lookin at you might waste weeks of ridin cause you was sure ya had all the marks lined up. And with your first you might not know her as well as you think , I don't know if they still have a timing mark on the flywheel or if you use that mark to set timing just $.02
TDC doesn't matter when installing the cam. If the (correct) timing mark on the cam gear is lined up with the timing mark on the pinion gear, you're good.
Thread Starter
|
Intermediate
Joined: May 2017
Posts: 33
Likes: 0
From: Illinois
Idk this has me all messed up. So basically if my pinion gear is lined up with the camshaft and the oil breather I'm good? Then go ahead and set my timing after that? Which is what I had thought but a few people were saying had to be tdc while all the marks lined up. I know all the marks are lined up so tonight I will just start over with the whole timing process. Let you guys know tomorrow how it goes. Thanks everyone!!
HD Forum Stories
The Best of Harley-Davidson for Lifelong Riders
8 Best Harley-Davidson Motorcycles Ever
Pouria Savadkouei
10 Worst Harley-Davidson Motorcycles Ever
Pouria Savadkouei
Killer Custom's Jail Break Is The Breakout That Refused to Blend In
Verdad Gallardo
Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?
Verdad Gallardo
Harley-Davidson Reveals Super Cool Cafe Racer Concept
Verdad Gallardo
Engraved Rebellion: Inside Bundnerbike's Glam Rock II
Verdad Gallardo
10 Motorcycles You Should Never Buy
Joe Kucinski
10 Things Harley-Davidson Needs to Fix in 2026
Verdad Gallardo
Southpaw Super Glide: A Left-Hand-Drive 1979 Harley FXE Built to Fit the Rider
Verdad Gallardo

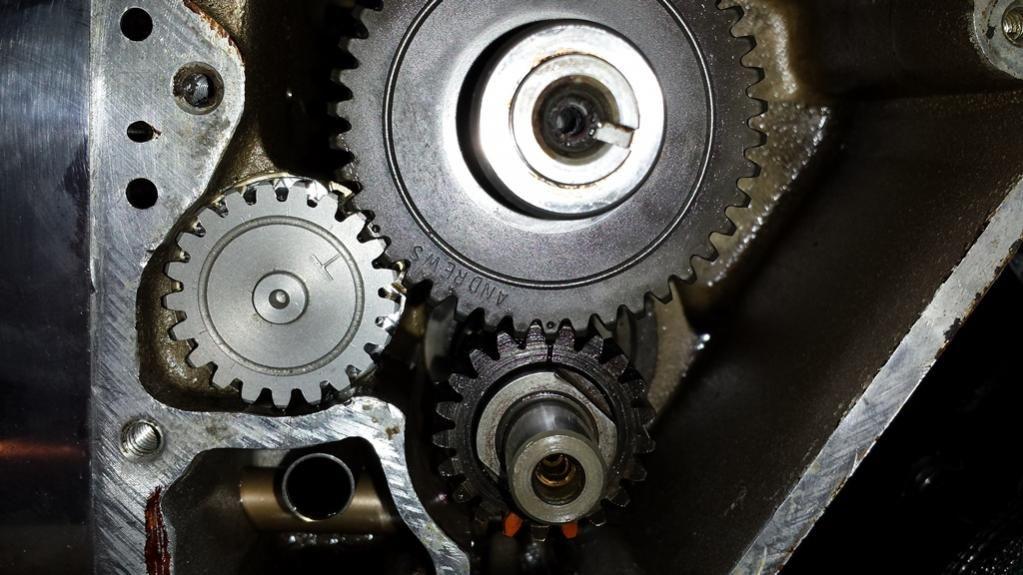

There are no "strokes"(ie, "compression", "exhaust", "right" or "wrong" etc) on the crankshaft. When it rotates 360 degrees, the pistons go up, they come down, and that's it. Strokes have to do with the interaction between the crankshaft and the camshaft, and as long as the timing mark on the cam gear is aligned with the timing mark on the pinion gear, you're set. Should look like this:
