Hey all, picked this up about a week ago, seller told me it was a stroked engine but had no idea on brand nor specs. I asked on a FB group & a gentlemen told me I have S.T.D. lower end & stock heads. Does have S&S super B carb, last owner said he got it to idle for the last time about a year ago so has been a while.
He also said the electric start doesn't work, I kicked it a few times to make sure it wasn't seized, let me tell you it is a bich!! Lol. Took the plugs out yesterday but have yet to look in there to see what state the cylinders are.
I am waiting on the key through the mail since seller forgot to give it to me, put the battery on the tender & is fully charged. I am mechanically inclined but not a master mechanic by any means, so bear with me as I ask questions. I would like to get a manual for it but I do not know what year shovelhead engine I have, can anyone point out which one to get?
It is registered as an assembled motorcycle so VIN on frame does no good, not a hot bike, I have the title, previous owner info, papers when it was last registered, etc.

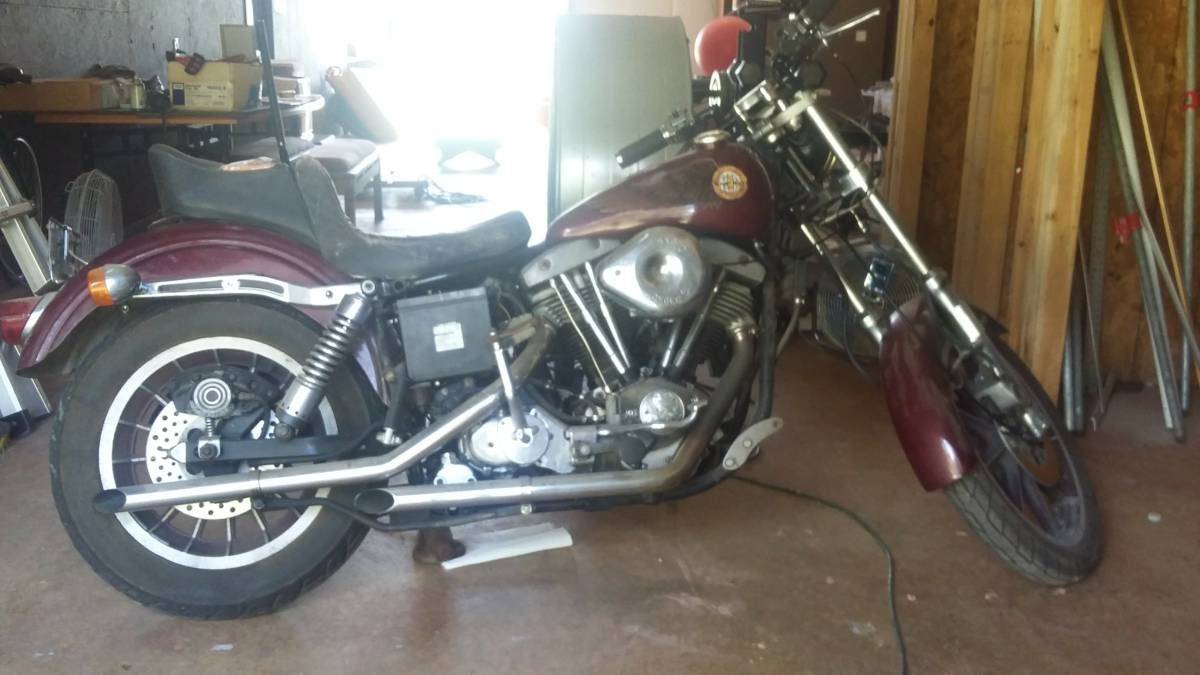

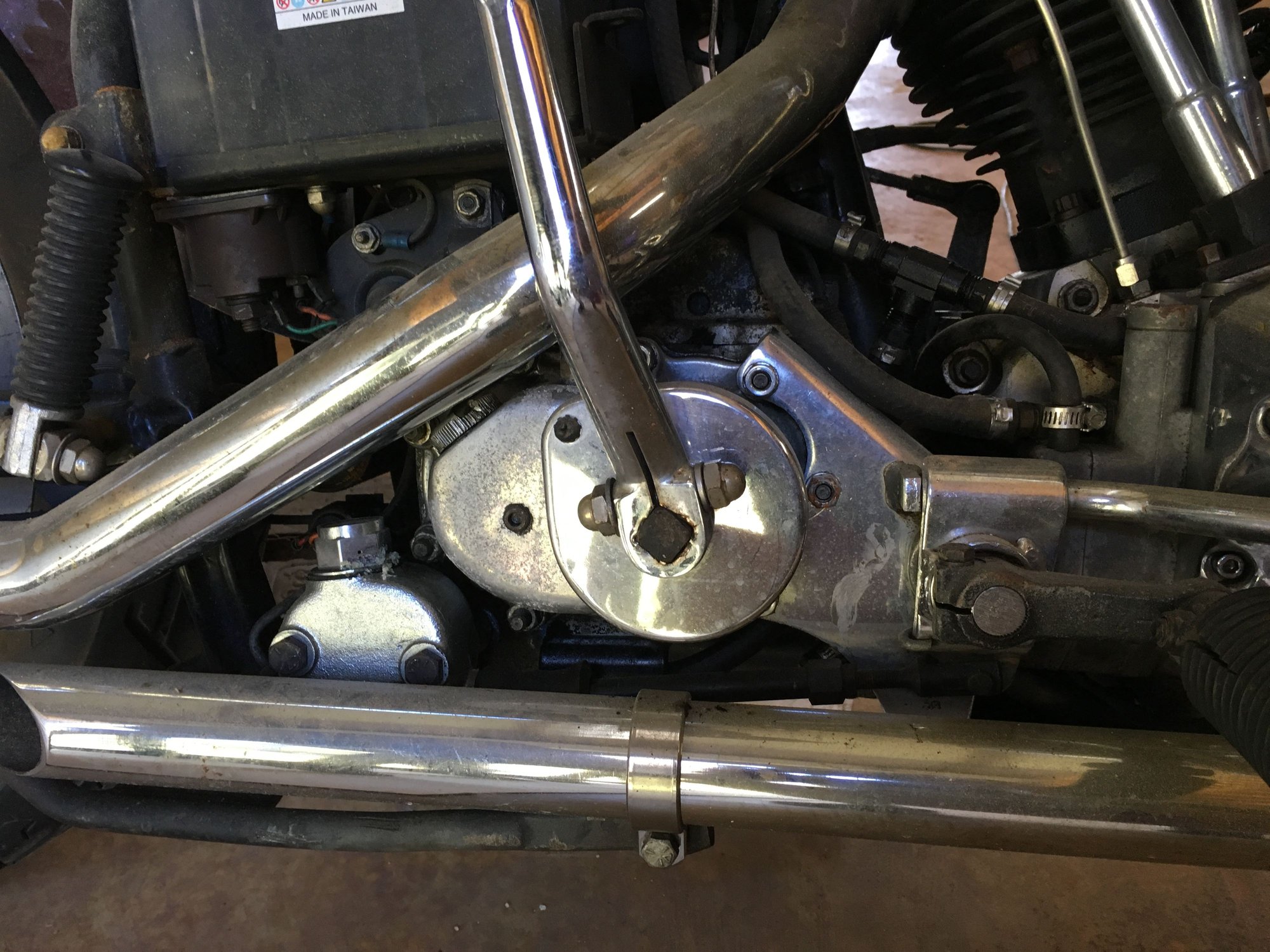

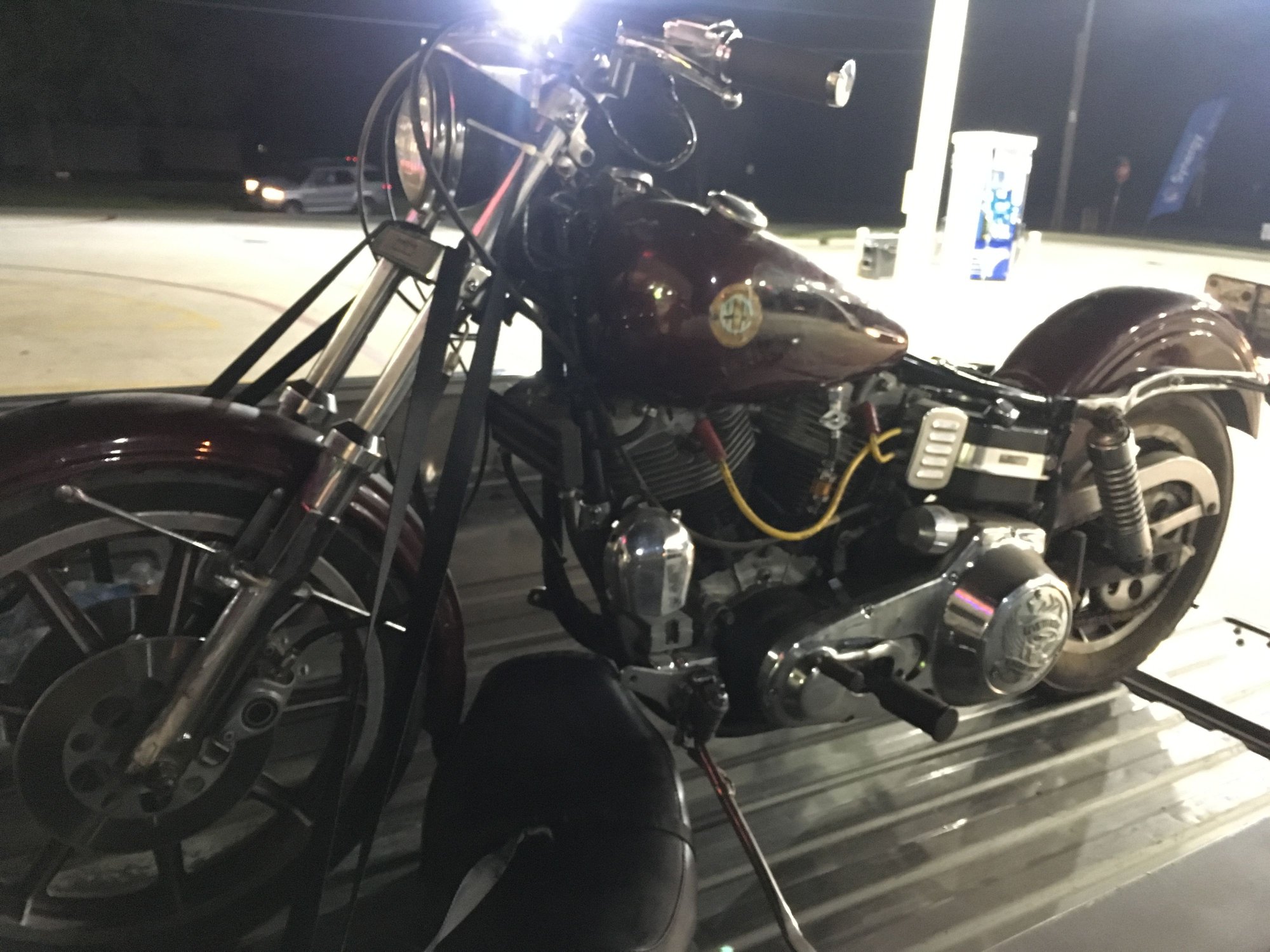

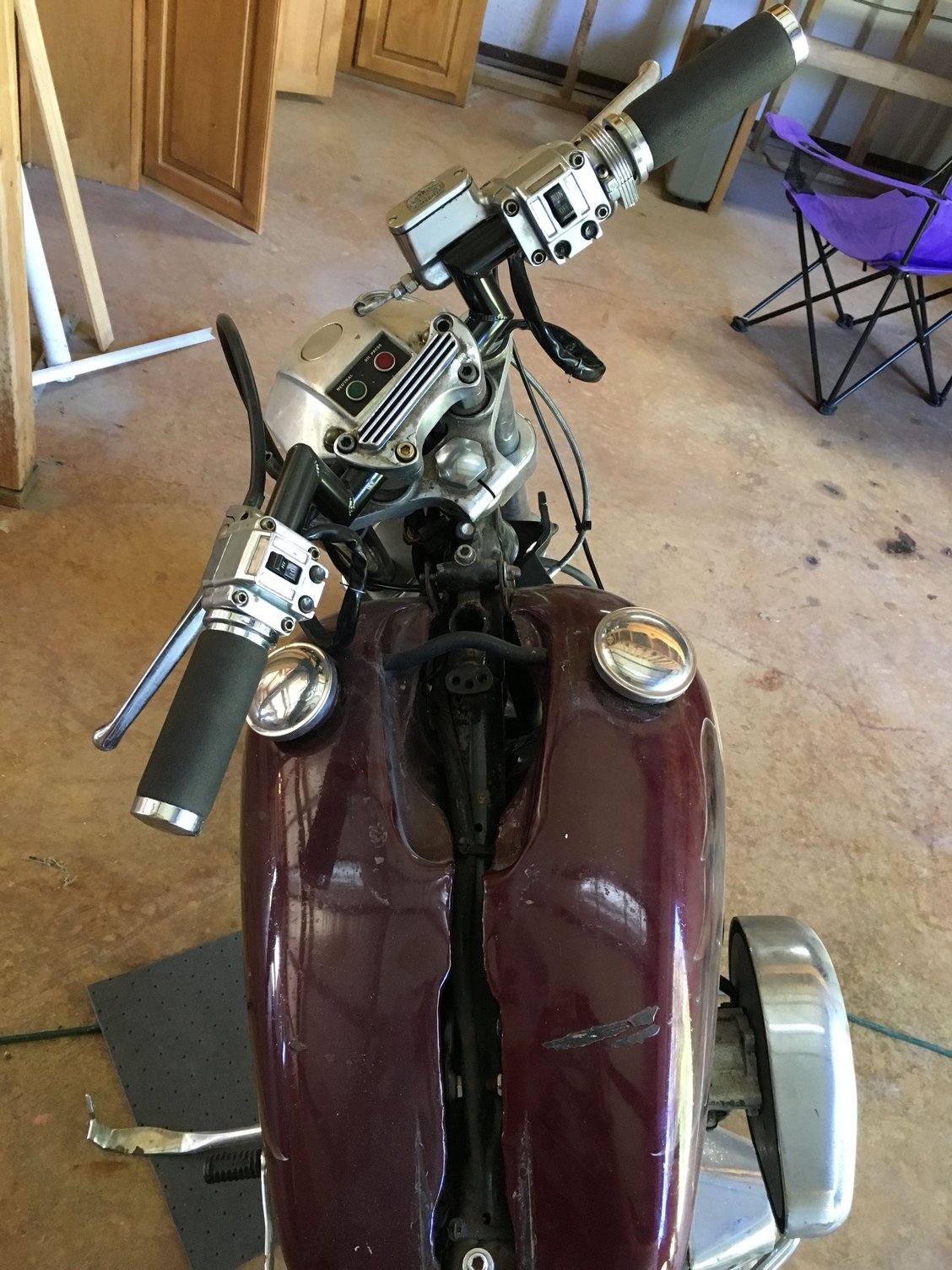

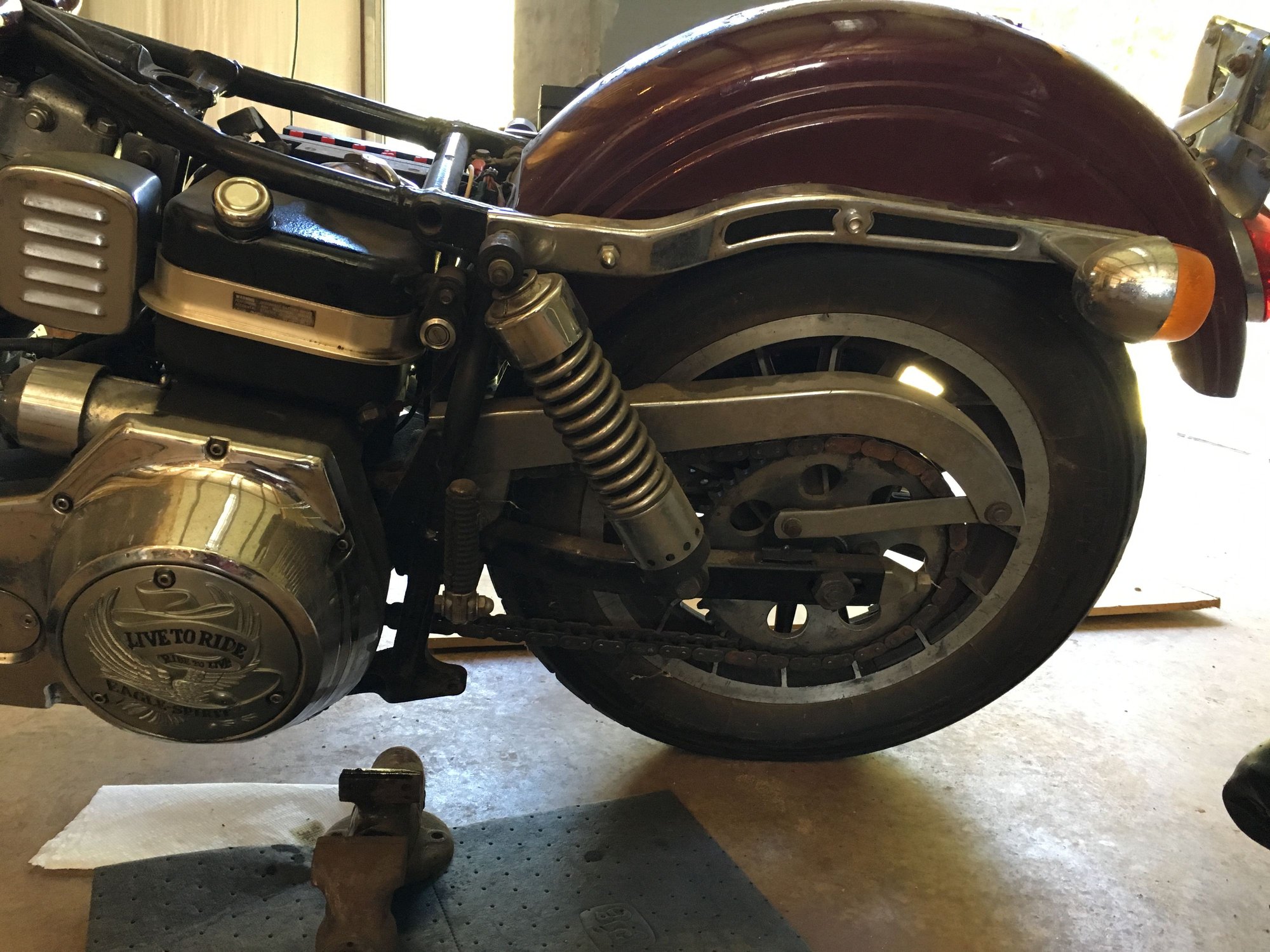

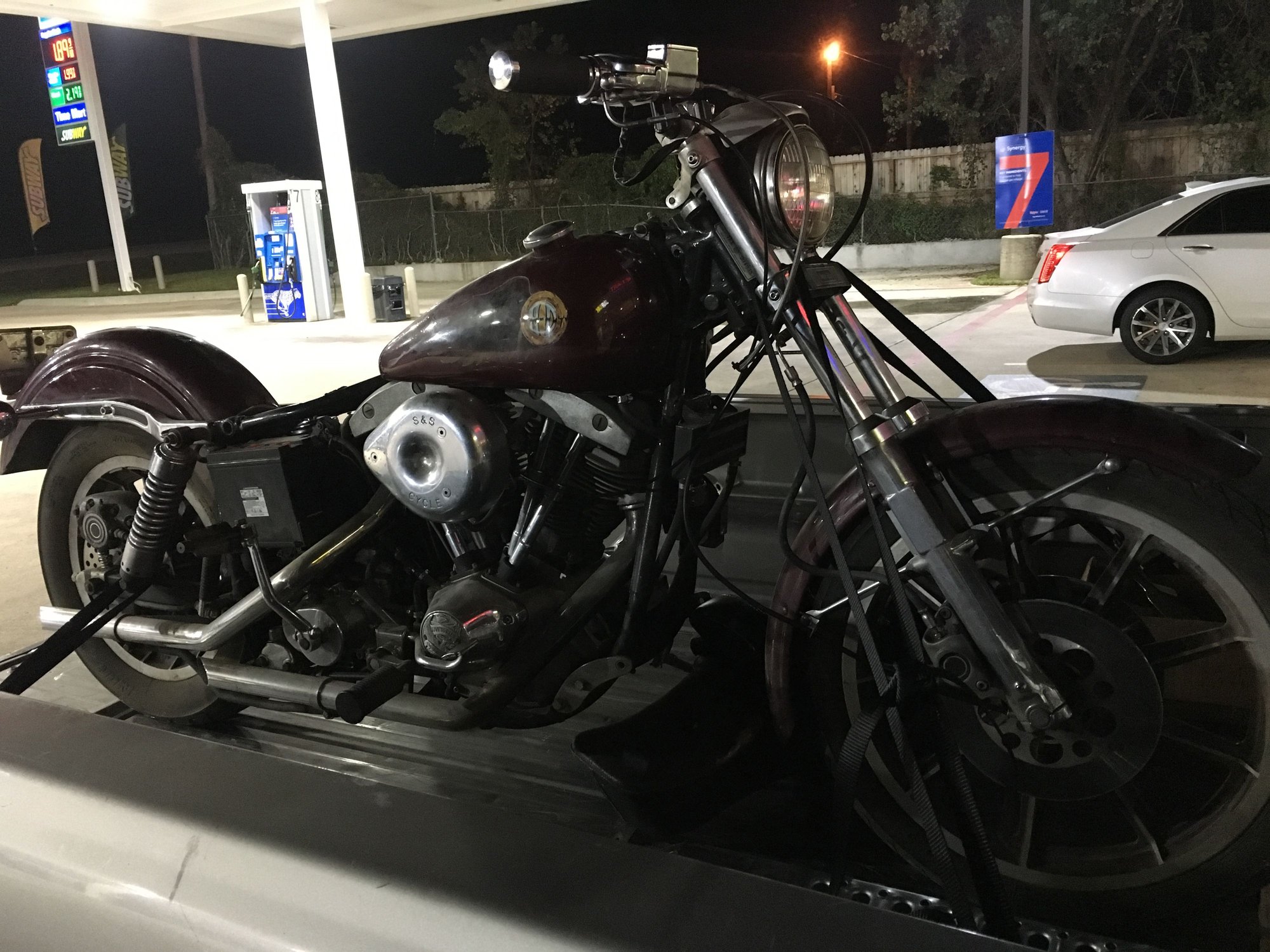

Anyway, here are some pictures, most of the bike looks there besides the dash & front signals, any pointers before I dig into it would be greatly appreciated.
He also said the electric start doesn't work, I kicked it a few times to make sure it wasn't seized, let me tell you it is a bich!! Lol. Took the plugs out yesterday but have yet to look in there to see what state the cylinders are.
I am waiting on the key through the mail since seller forgot to give it to me, put the battery on the tender & is fully charged. I am mechanically inclined but not a master mechanic by any means, so bear with me as I ask questions. I would like to get a manual for it but I do not know what year shovelhead engine I have, can anyone point out which one to get?
It is registered as an assembled motorcycle so VIN on frame does no good, not a hot bike, I have the title, previous owner info, papers when it was last registered, etc.
Anyway, here are some pictures, most of the bike looks there besides the dash & front signals, any pointers before I dig into it would be greatly appreciated.
Last edited by TAKITO SEXY; 11-30-2016 at 02:54 PM.
#2
#3
Join Date: Oct 2005
Location: Santa Klaus County, Cali
Posts: 7,271
Received 3,205 Likes
on
1,480 Posts
Well the vin on the frame may give you an idea on about what year the original bike may have started as. Did the prior owner change the motor out or did he buy it that way?
Did the PO say why the starter wasn't working?
Definitely change those plugs.
Look like a mid-70s FXE/S model.

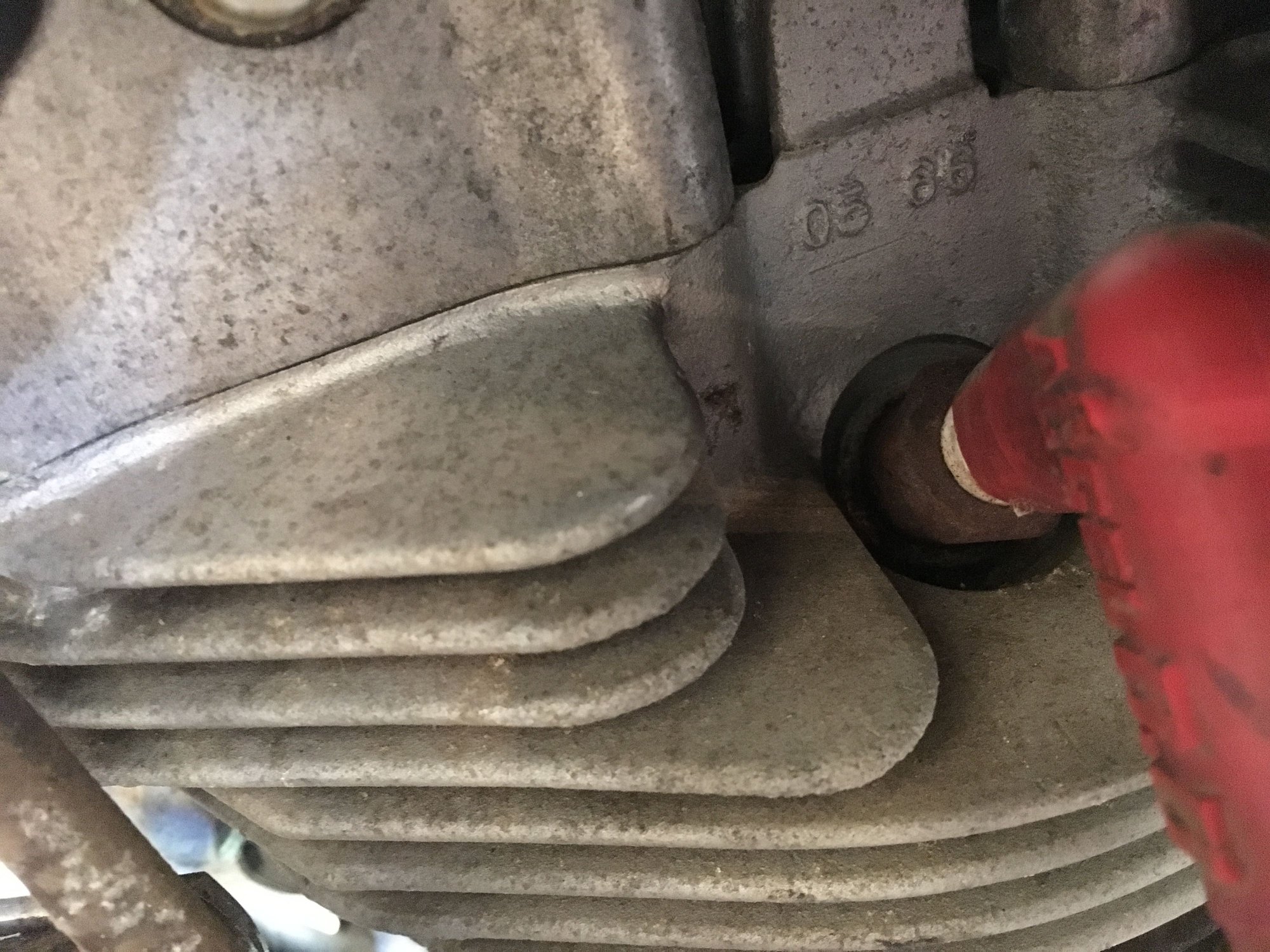

HD stamped or used casting date codes on the early models. The pic of the head (5-66) indicates that head was cast in May of 1966. There will be codes on the front and rear brake assemblies if they are HD (and I think they are), There are casting/date codes on the triple trees as well and also on the transmission. There is definitely some type of casting codes on the base of your cylinders (pic #4). There should be casting codes on your lifter blocks but I do not believe they are HD. All those may help identify what year the bike started as provided they were not changed out.
