I recently purchased a 1976 shovelhead motor that had been rebuilt and sat for 25 years. Of course , I tore it apart. I found that it a new Andrews Letter A grind cam in it. The cam has a dot on it and the pinion gear has a line on it. They appear to one tooth off. Let me further explain, Dots align with lines, Teeth
align with valleys. I can time this as one tooth advanced or one tooth retarded. Early 76 motor and a later cam?
align with valleys. I can time this as one tooth advanced or one tooth retarded. Early 76 motor and a later cam?
Cruiser
Joined: Sep 2020
Posts: 222
Likes: 77
From: Gulf Breeze

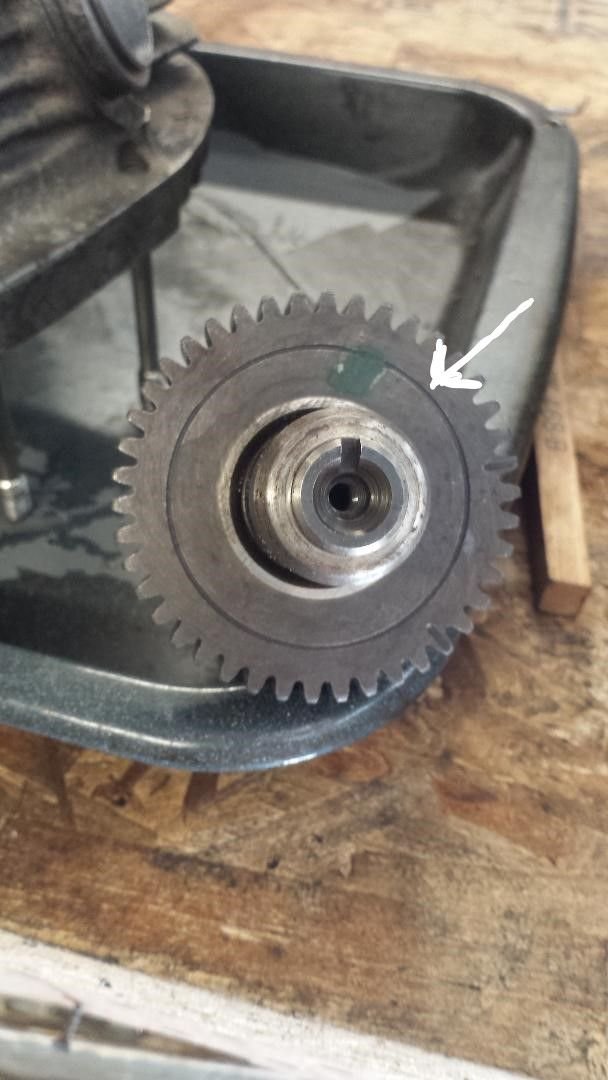

What is your white arrow pointing at? Looks like there is a line about 1630 on the gear, seems like the arrow would point this out... just wondering.
Club Member
Joined: Mar 2009
Posts: 66,094
Likes: 51,354
From: Niles Canyon Ca.
He's pointing at the little machined groove on the gear face. There's a different gear tooth pitch and the groove denotes its later one, have to match things or the case case gets very noisy and tends to chew things up.
