Default Part #

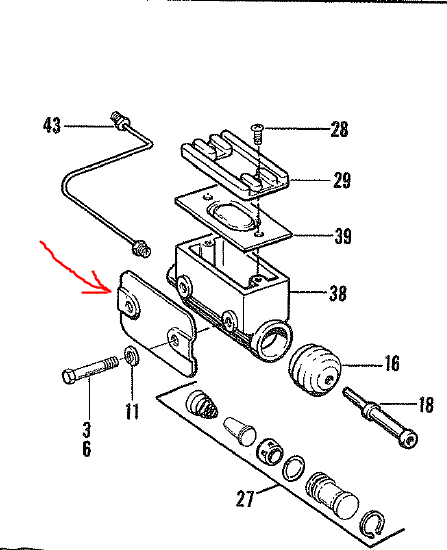

Does anyone know the part number for this (I think it is a) heat shield and or have one to sell? Does master cylinder 3/4" bore sound correct for an '81 FXS?




Reply
0
Old Nov 18, 2024 | 05:58 AM
Share
  #2
johnjzjz's Avatar
johnjzjz
Seasoned HDF Member
15 Year Member
Top Answer: 3
Joined: Nov 2006
Posts: 12,878
Likes: 5,448
From: la la land jerzey
Default
I believe its the part of the frame the master bolts to if not look in the frame section

Reply
1
Old Nov 18, 2024 | 12:09 PM
Share
  #3
Ken45's Avatar
Ken45
Thread Starter
|
Road Master
Photogenic
Liked
Loved
Community Favorite
Joined: Oct 2022
Posts: 944
Likes: 654
From: USA
Default
Good idea to look in the frame section but nothing there. Plus the frame is on the other side of the master cylinder in the parts diagram.

Reply
0
Old Nov 20, 2024 | 06:00 AM
Share
  #4
hellonewman's Avatar
hellonewman
Seasoned HDF Member
Photogenic
Photoriffic
Shutterbug
Joined: Jun 2015
Posts: 8,054
Likes: 8,076
From: Canada
Default
It's a heat shield. I did a brief search in the exhaust sections but they dont show it. The earlier bikes didn't have one, just a dent in the pipe to add clearance.

Reply
0
Old Nov 20, 2024 | 06:15 AM
Share
  #5
Architect's Avatar
Architect
Seasoned HDF Member
15 Year Member
Joined: Apr 2010
Posts: 9,493
Likes: 7,789
From: Long Island, New York
Default
I found the same diagram you posted, shows the shield but no part #.

Reply
0
Old Nov 20, 2024 | 06:23 AM
Share
  #6
magnum45pete's Avatar
magnum45pete
Road Captain
Photogenic
Liked
Loved
Community Favorite
Joined: Jul 2021
Posts: 605
Likes: 441
From: BRIGHTON, ENGLAND
Default
on my 79 FXS it was a ceramic/asbesdos puck, looked like a brake pad, with 4 ears to bend over the master cylinder, ill try to find picture and part number later

Reply
0
Old Nov 20, 2024 | 08:52 AM
Share
  #7
Uncle Larry's Avatar
Uncle Larry
Seasoned HDF Member
Veteran: Army
15 Year Member
Joined: Jan 2011
Posts: 157,320
Likes: 56,879
From: Michigan 15 Minutes East Of Hell
Default
No part number in any of my parts manuals ... Picture referenced in illustration but no mention
