Installed heim type joints....problem

Reply Subscribe

Thread Tools

Search this Thread

Mar 19, 2016 | 07:49 PM

#11

dwoodlives

Cruiser

Joined: Nov 2013

Posts: 197

Likes: 17

From: Central Coast California

When properly installed with any necessary washers for clearance, the center part of the Heim joint should be bolted tight. Then in all positions of the shift lever [all the way up, all the way down], the outer part of both joints [tightened to the rod] should swivel freely.

As previously noted, if something rattles, buy better Heim joints. Good ones are not cheap.

Mar 19, 2016 | 11:28 PM

#12

Fishrrman

Road Warrior

Joined: Aug 2011

Posts: 1,510

Likes: 23

From: Connecticut

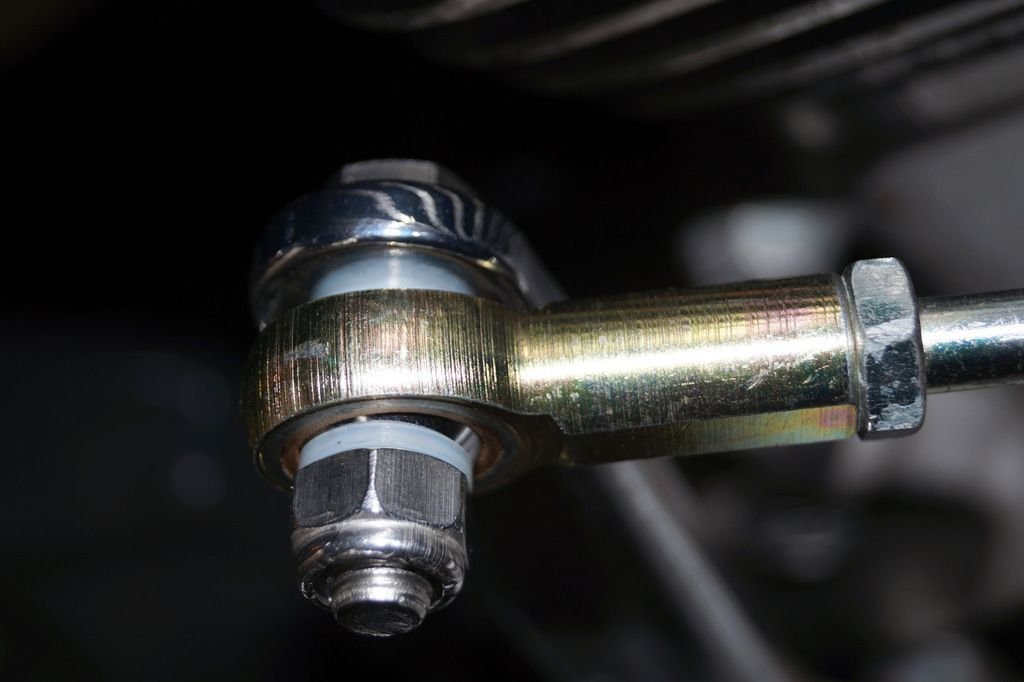

On mine, I added small nylon spacers on either side of the heim joints. No binding on the levers...

Mar 20, 2016 | 08:24 AM

#13

roundy

Thread Starter

Tourer

Joined: Jan 2012

Posts: 498

Likes: 25

From: Hampshire, UK

Time to hunt for some washers I think and have a little play with the spacing!

Mar 20, 2016 | 08:37 AM

#14

Uncle Larry

Seasoned HDF Member

Joined: Jan 2011

Posts: 157,459

Likes: 57,015

From: Michigan 15 Minutes East Of Hell

If you notice in "Fishrrman"s picture ( Post #12 ) , the linkage arm is not in a "neutral" position. You can see that it is "cocked". The shift linkage rod is not parallel to the arm. This puts it in a somewhat "binded" position to begin with.

Mar 20, 2016 | 09:22 AM

#15

batman.

Road Master

Joined: Jun 2014

Posts: 1,219

Likes: 63

From: westland Michigan

Quote:

Originally Posted by Boomer1143

Batman, put a small o-ring on the back side of the joint. That's what I did and it keeps the linkage from moving and no more rattle.

Boomer

Thank you I'll give that a try. I got the flhx streamline one from hd. Figured it would look better and be somewhat quality.

Batman

Mar 20, 2016 | 09:58 AM

#16

dwoodlives

Cruiser

Joined: Nov 2013

Posts: 197

Likes: 17

From: Central Coast California

Quote:

Originally Posted by Uncle Larry

This is the whole purpose of using a Heim joint. Same idea when cars had drive shafts with U-joints. All that is necessary is to be sure there is no binding at any position of the shift lever.

Mar 20, 2016 | 10:01 AM

#17

Uncle Larry

Seasoned HDF Member

Joined: Jan 2011

Posts: 157,459

Likes: 57,015

From: Michigan 15 Minutes East Of Hell

Somewhat, but not the "whole purpose" ... As I stated "optimally" they function better when parallel ... and if the angle increases from the position shown it will definitely bind.

Last edited by Uncle Larry; Mar 20, 2016 at 10:04 AM.

Mar 20, 2016 | 04:43 PM

#18

btsom

Grand HDF Member

Joined: Jan 2012

Posts: 4,456

Likes: 2,858

From: Oklahoma

Only 2 causes, both covered above. The heim joints binding at one end or the other (or both) or the assembled rod length is too long and the front shift lever is hitting the foot board. You will have to look carefully to determine which it is.
