Default Accessory Circuit Connector
Is this the Accessory Circuit Connector where I would plug in a heated seat? Is the fuse alredy installed from the factory?

Attached Thumbnails Accessory Circuit Connector-img_0177.jpg
Reply
0
Old Jan 28, 2017 | 05:46 PM
Share
  #2
ricktherocket's Avatar
ricktherocket
Tourer
Joined: Feb 2015
Posts: 345
Likes: 19
From: Indiana
Default
No that's not it, look in front of your battery for a 4 prong plug and yes it is already fused

Reply
0
Old Jan 28, 2017 | 05:53 PM
Share
  #3
ricktherocket's Avatar
ricktherocket
Tourer
Joined: Feb 2015
Posts: 345
Likes: 19
From: Indiana
Default
that plug is for a purge solenoid (CA models)

Last edited by ricktherocket; Jan 28, 2017 at 05:56 PM.
Reply
0
Old Jan 28, 2017 | 06:29 PM
Share
  #4
sixgun95's Avatar
sixgun95
Thread Starter
|
Tourer
15 Year Member
Liked
Loved
Joined: Jul 2005
Posts: 449
Likes: 29
From: Scottsdale, AZ
Default
Is it possibly under the left side cover?

Reply
0
Old Jan 28, 2017 | 07:10 PM
Share
  #5
Baeseman1's Avatar
Baeseman1
Elite HDF Member
Joined: Aug 2007
Posts: 4,265
Likes: 99
From: Northern VA
Default
Originally Posted by sixgun95
Is it possibly under the left side cover?

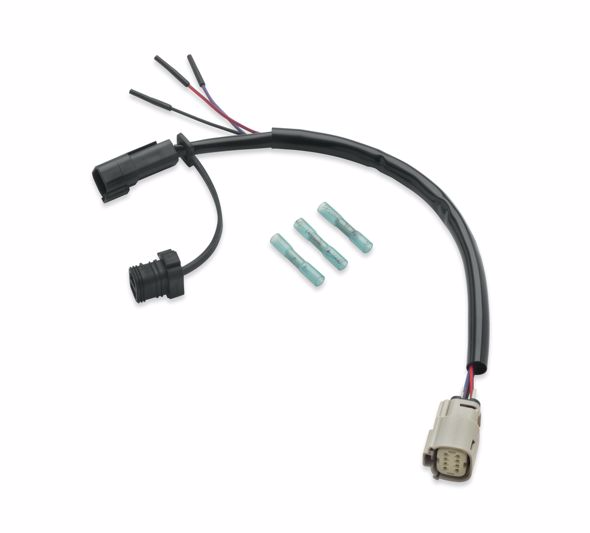

Yes, to a point. You need this little gem from HD

http://www.harley-davidson.com/store...ion-update-kit



And it plugs into the (upper of the 2 lower) connector under the left side cover


Reply
0
Old Jan 28, 2017 | 10:06 PM
Share
  #6
sixgun95's Avatar
sixgun95
Thread Starter
|
Tourer
15 Year Member
Liked
Loved
Joined: Jul 2005
Posts: 449
Likes: 29
From: Scottsdale, AZ
Default
Sounds easy enough. Let me ask this, I have the Remote Garage Door Opener installed, will that Accessory Circuit cannon plug still be open? Is that where it connects? If so, now what?

Reply
0
Old Jan 29, 2017 | 11:46 AM
Share
  #7
smitty901's Avatar
smitty901
Seasoned HDF Member
Veteran: Army
15 Year Member
Liked
Community Favorite
Joined: Feb 2008
Posts: 22,999
Likes: 11,439
Default
Originally Posted by sixgun95
Is it possibly under the left side cover?
Do not plug into nor try to test either of those plugs. Unless you know 100% what you are doing.

Reply
0

Trending Topics

Old Jan 29, 2017 | 01:38 PM
Share
  #8
sixgun95's Avatar
sixgun95
Thread Starter
|
Tourer
15 Year Member
Liked
Loved
Joined: Jul 2005
Posts: 449
Likes: 29
From: Scottsdale, AZ
Default
Originally Posted by smitty901
Do not plug into nor try to test either of those plugs. Unless you know 100% what you are doing.
And I don't, good advice!

Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Jan 29, 2017 | 02:19 PM
Share
  #9
sixgun95's Avatar
sixgun95
Thread Starter
|
Tourer
15 Year Member
Liked
Loved
Joined: Jul 2005
Posts: 449
Likes: 29
From: Scottsdale, AZ
Default
i pulled the left side cover. As you can see in the pic, the gray, lower connector in the pic is not connected to anything, just has a dust cap on it. The cannon plug has 5 pins inside. Is this where I would plug the extender Baseman1 suggested to and run it to the seat?

Attached Thumbnails Accessory Circuit Connector-img_0179.jpg   Accessory Circuit Connector-img_0180.jpg
Reply
0
Old Jan 29, 2017 | 02:32 PM
Share
  #10
sanman4ever's Avatar
sanman4ever
Club Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Apr 2012
Posts: 3,461
Likes: 329
From: Rhode Island
Riders Club Member
Default
Originally Posted by sixgun95
i pulled the left side cover. As you can see in the pic, the gray, lower connector in the pic is not connected to anything, just has a dust cap on it. The cannon plug has 5 pins inside. Is this where I would plug the extender Baseman1 suggested to and run it to the seat?
That looks like the diagnostic connector on my 09.
