Hi, I read somewhere that although blanked off the accessory switch wiring is built in to the bike harnesses and all you need to do is replace blanks with the available switches and there are plugs located on the bike to attach accessories to.

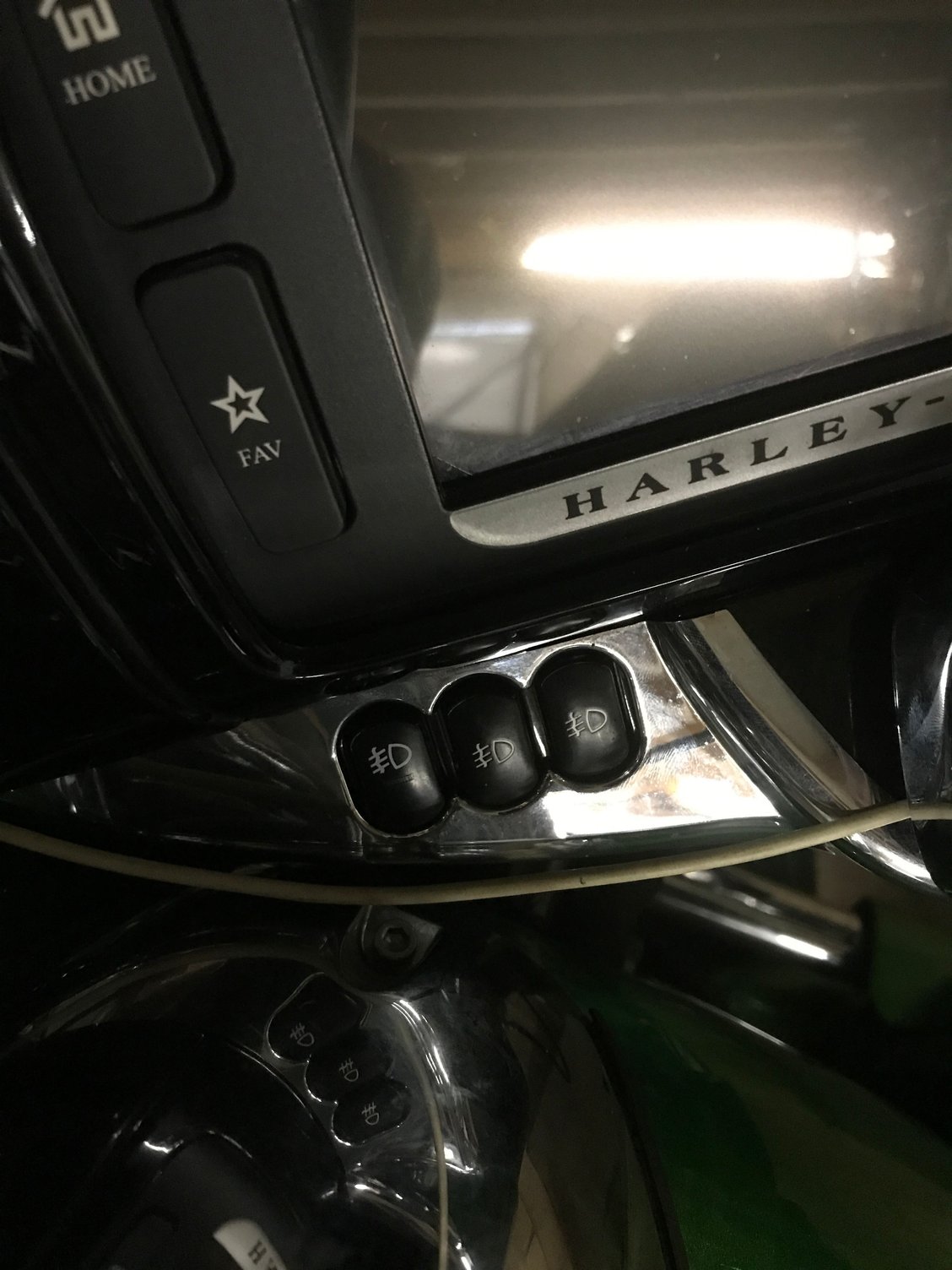

i have replaced blanks but cant find the plugs or wires which become live.
i know about the accessory plug behind left side panel but that is ignition switch operated.
point is I have got some love jugs to fit(any derogatory statement not needed), and wanted to control them from these switches rather than having to turn them on and off individually.
Thanks for any help in advance.

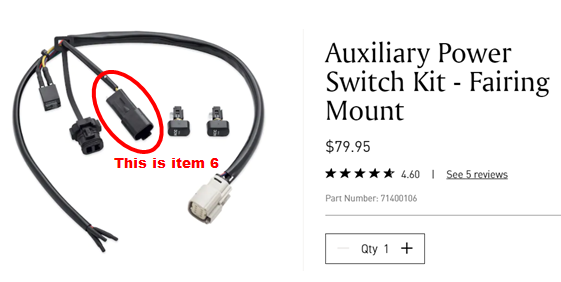

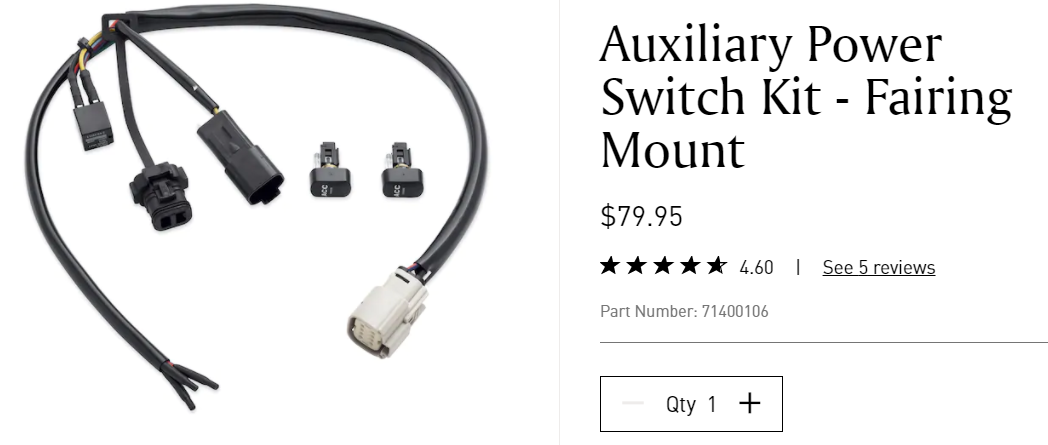

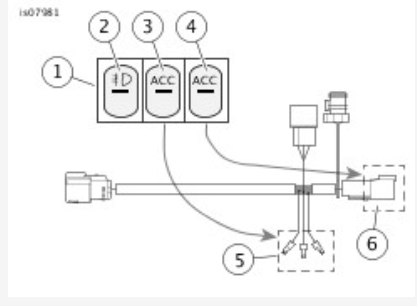

The accessories connector under the left side cover accepts this harness, uses the left console switches via BCM as shown in the diagram from the installation instructions. Switch 3 controls items < 2 amps, switch 4 uses a relay & controls items > 2 amps.
The accessories connector under the left side cover accepts this harness, uses the left console switches via BCM as shown in the diagram from the installation instructions. Switch 3 controls items < 2 amps, switch 4 uses a relay & controls items > 2 amps.
sorry for delay in acknowledgment, as 4-7hrs ahead in uk
Useful sketch, 👍
i am probably missing something
adding to original reply- think I just got it🤔this is another kit I need to make dash switch use the power already live through ignition at accessory plug either through relay or direct dependant on drain.cheers
Last edited by oxford joc; Aug 26, 2020 at 09:37 AM.
sorry for delay in acknowledgment, as 4-7hrs ahead in uk
Useful sketch, have switches installed but unable to find socket marked 6 as one in left side panel is ignition controlled not by new switch
i am probably missing something
The accessories cable plugs into the accessory connector in the left side cover & socket marked as 6 is part of that cable. The connector in the left side cover is controlled by the BCM & is only active if ignition is in ON or ACCY positions.
