Few questions regarding belt tension.

How does taller suspension affect what optimal belt tension should be? For example, my 16 FLHXS came with 12" shocks but I have installed 13" shocks. Do I need to spec to a different tension?

My service manual states each notch in the viewing window represents 1/16" of an inch, I have seen numerous videos on YouTube that claim each notch represents 1/8" inch. What's up with that?

Lastly, who makes the best tension tool? HD or another one?




Reply
0
Old Jan 29, 2021 | 10:06 AM
Share
  #2
jake24lt's Avatar
jake24lt
Stellar HDF Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2017
Posts: 2,678
Likes: 2,081
From: Massachusetts
Default
Originally Posted by twincam10353
Few questions regarding belt tension.

How does taller suspension affect what optimal belt tension should be? For example, my 16 FLHXS came with 12" shocks but I have installed 13" shocks. Do I need to spec to a different tension?

My service manual states each notch in the viewing window represents 1/16" of an inch, I have seen numerous videos on YouTube that claim each notch represents 1/8" inch. What's up with that?

Lastly, who makes the best tension tool? HD or another one?
https://www.amazon.com/ARES-15033-Replacement-Adjustment-Specification/dp/B084KX8R61/ref=sr_1_1_sspa?dchild=1&keywords=motorcycle+belt+tension+tool&qid=1611936351&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExRkRJWDEzTThPNDZKJmVuY3J5cHRlZElkPUEwNzA5MDg2MzRIR0NaWFBURUVFRSZlbmNyeXB0ZWRBZElkPUEwOTQ3NDYyM1ZTTFNFSFRGVDZHWiZ3aWRnZXROYW1lPXNwX2F0ZiZhY3Rpb249Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU= https://www.amazon.com/ARES-15033-Replacement-Adjustment-Specification/dp/B084KX8R61/ref=sr_1_1_sspa?dchild=1&keywords=motorcycle+belt+tension+tool&qid=1611936351&sr=8-1-spons&psc=1&spLa=ZW5jcnlwdGVkUXVhbGlmaWVyPUExRkRJWDEzTThPNDZKJmVuY3J5cHRlZElkPUEwNzA5MDg2MzRIR0NaWFBURUVFRSZlbmNyeXB0ZWRBZElkPUEwOTQ3NDYyM1ZTTFNFSFRGVDZHWiZ3aWRnZXROYW1lPXNwX2F0ZiZhY3Rpb249Y2xpY2tSZWRpcmVjdCZkb05vdExvZ0NsaWNrPXRydWU=

Reply
0
Old Jan 29, 2021 | 10:08 AM
Share
  #3
ssls6's Avatar
ssls6
Road Captain
Joined: May 2006
Posts: 582
Likes: 50
From: South Park, CO
Default
With 13" shocks you should use the spec for non-lowered bikes like the Road King, Electra-glide standard, etc...

Reply
0
Old Jan 29, 2021 | 10:10 AM
Share
  #4
jake24lt's Avatar
jake24lt
Stellar HDF Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Jan 2017
Posts: 2,678
Likes: 2,081
From: Massachusetts
Default
Originally Posted by twincam10353
Few questions regarding belt tension.

How does taller suspension affect what optimal belt tension should be? For example, my 16 FLHXS came with 12" shocks but I have installed 13" shocks. Do I need to spec to a different tension?

My service manual states each notch in the viewing window represents 1/16" of an inch, I have seen numerous videos on YouTube that claim each notch represents 1/8" inch. What's up with that?

Lastly, who makes the best tension tool? HD or another one?

also


Reply
1
Old Jan 29, 2021 | 10:18 AM
Share
  #5
barneyboy's Avatar
barneyboy
Seasoned HDF Member
5 Year Member
Liked
Top Answer: 1
Top Answer: 3
Joined: Dec 2017
Posts: 5,077
Likes: 3,293
From: Plover, WI
Default

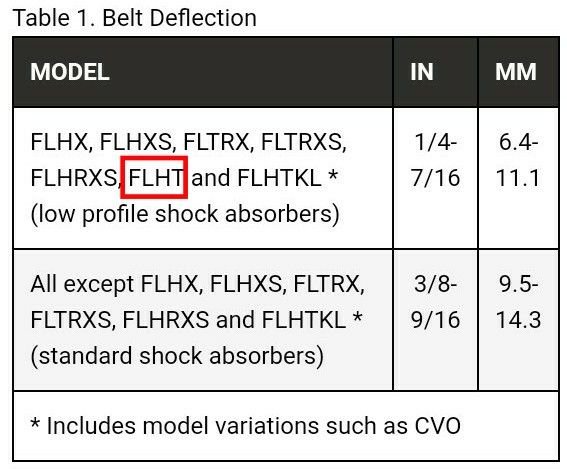

My service manual has two different specifications.
1/4-7/16 for low profile shocks.
3/8-9/16 for standard shocks.

Edit: Jake beat me to it.

Reply
0
Old Jan 29, 2021 | 10:25 AM
Share
  #6
twincam10353's Avatar
twincam10353
Thread Starter
|
Road Master
5 Year Member
Photogenic
Liked
Top Answer: 1
Joined: Mar 2020
Posts: 1,078
Likes: 267
From: New England
Default
The service manual doesn't specifically define "low profile shocks" nor "standard shocks"

So let's clarify it - does low profile equal 12" shocks and standard equals 13" shocks?

Reply
0
Old Jan 29, 2021 | 01:03 PM
Share
  #7
barneyboy's Avatar
barneyboy
Seasoned HDF Member
5 Year Member
Liked
Top Answer: 1
Top Answer: 3
Joined: Dec 2017
Posts: 5,077
Likes: 3,293
From: Plover, WI
Default
Originally Posted by twincam10353
So let's clarify it - does low profile equal 12" shocks and standard equals 13" shocks?
Yes.

Originally Posted by twincam10353
My service manual states each notch in the viewing window represents 1/16" of an inch, I have seen numerous videos on YouTube that claim each notch represents 1/8" inch. What's up with that?

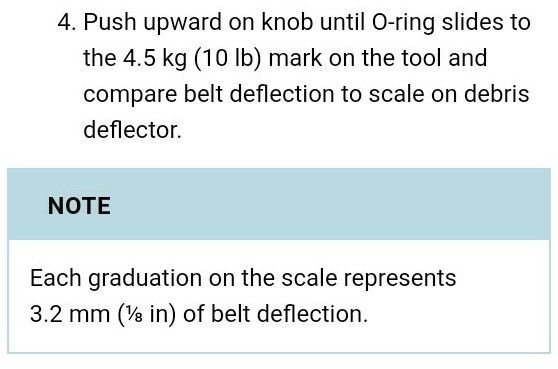

Prior to 2014 the graduations were 1/8". YouTuber's were likely going by that.



Reply
0

Trending Topics

Old Jan 29, 2021 | 01:09 PM
Share
  #8
barneyboy's Avatar
barneyboy
Seasoned HDF Member
5 Year Member
Liked
Top Answer: 1
Top Answer: 3
Joined: Dec 2017
Posts: 5,077
Likes: 3,293
From: Plover, WI
Default
Originally Posted by ssls6
With 13" shocks you should use the spec for non-lowered bikes like the Road King, Electra-glide standard, etc...
EGS is equipped with 12" shocks.


Reply
0
HD Forum Stories

The Best of Harley-Davidson for Lifelong Riders

story-0

7 Times Harley-Davidson Chucked Tradition Out the Window

 Verdad Gallardo
story-1

7 Surprising Harley-Davidson Products that Are Not Motorcycles

 Verdad Gallardo
story-2

8 Best Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-3

10 Worst Harley-Davidson Motorcycles Ever

 Pouria Savadkouei
story-4

Killer Custom's Jail Break Is The Breakout That Refused to Blend In

 Verdad Gallardo
story-5

Crazy Bunderbike Build Looks Amazing, But Is It Impossible to Ride?

 Verdad Gallardo
story-6

Harley-Davidson Reveals Super Cool Cafe Racer Concept

 Verdad Gallardo
story-7

Engraved Rebellion: Inside Bundnerbike's Glam Rock II

 Verdad Gallardo
story-8

10 Motorcycles You Should Never Buy

 Joe Kucinski
story-9

10 Things Harley-Davidson Needs to Fix in 2026

 Verdad Gallardo
Old Jan 29, 2021 | 01:35 PM
Share
  #9
twincam10353's Avatar
twincam10353
Thread Starter
|
Road Master
5 Year Member
Photogenic
Liked
Top Answer: 1
Joined: Mar 2020
Posts: 1,078
Likes: 267
From: New England
Default
barneyboy, thanks for the help. So to be clear, I will run the 3/8" - 9/16" spec for my FLHXS with 13" rear shocks?

Reply
0
Old Jan 29, 2021 | 01:53 PM
Share
  #10
Bowhunter61's Avatar
Bowhunter61
Road Warrior
15 Year Member
Photogenic
Liked
Top Answer: 1
Joined: Feb 2009
Posts: 1,274
Likes: 130
From: Now Western TN
Default
easy method without the tool, take your hand and twist the belt, should only twist 45 degrees. I have the tool and done it both ways, both end up at same adjustment.

Reply
2
